How to configure OSD elements in INAV

在OSD界面选择想要在画面中显示的信息；



Suggested items to enable/check:：battery voltage，Battery Cell Voltage，Current Draw，Throttle Position，GPS Satellites，System Messages，Distance to Home，Altitude，Crosshairs，Artificial Horizon，Flymode；

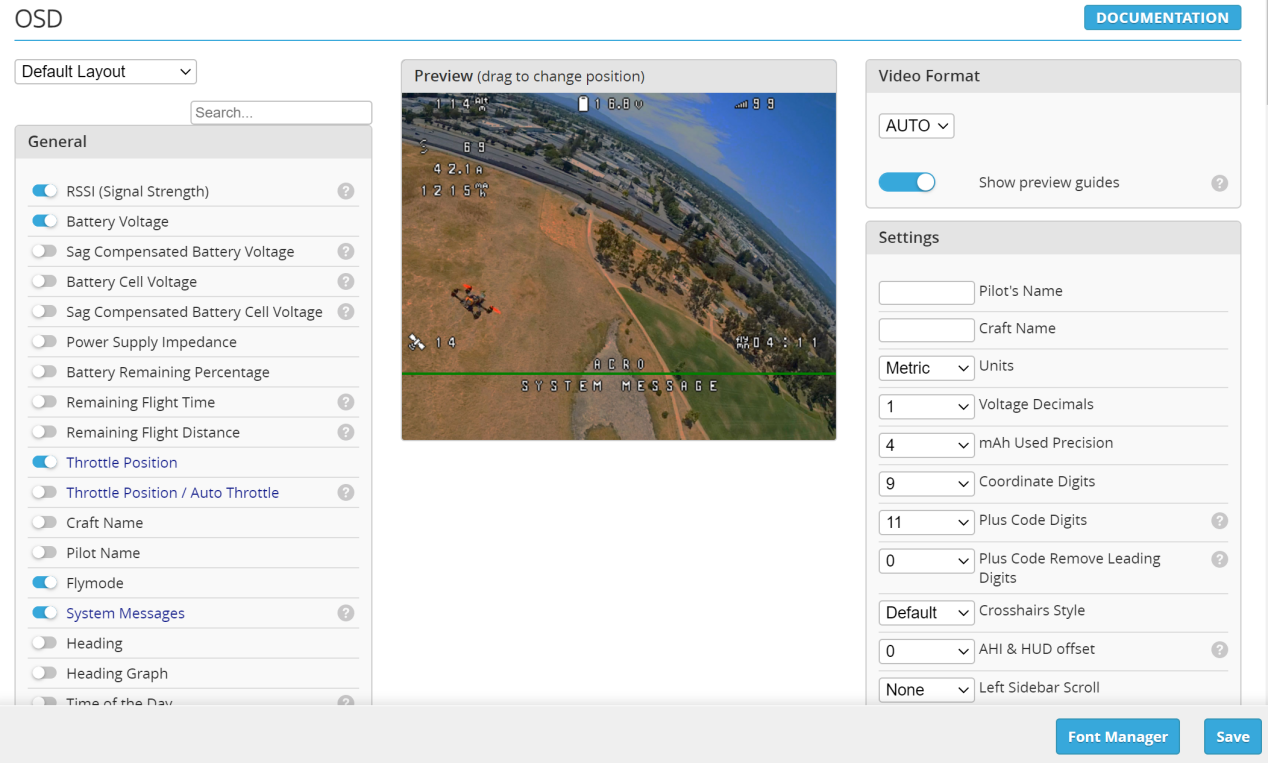

Parameters can be set according to your needs. On the left, you have display parameters that you can choose from. Adjust the position of these parameters by dragging them with the mouse. **Select the video standard in the top right corner; typically, analog systems use PAL, while HD systems should be selected according to the manual. If the display is incomplete, manual adjustments are needed. Save the settings after adjustments.

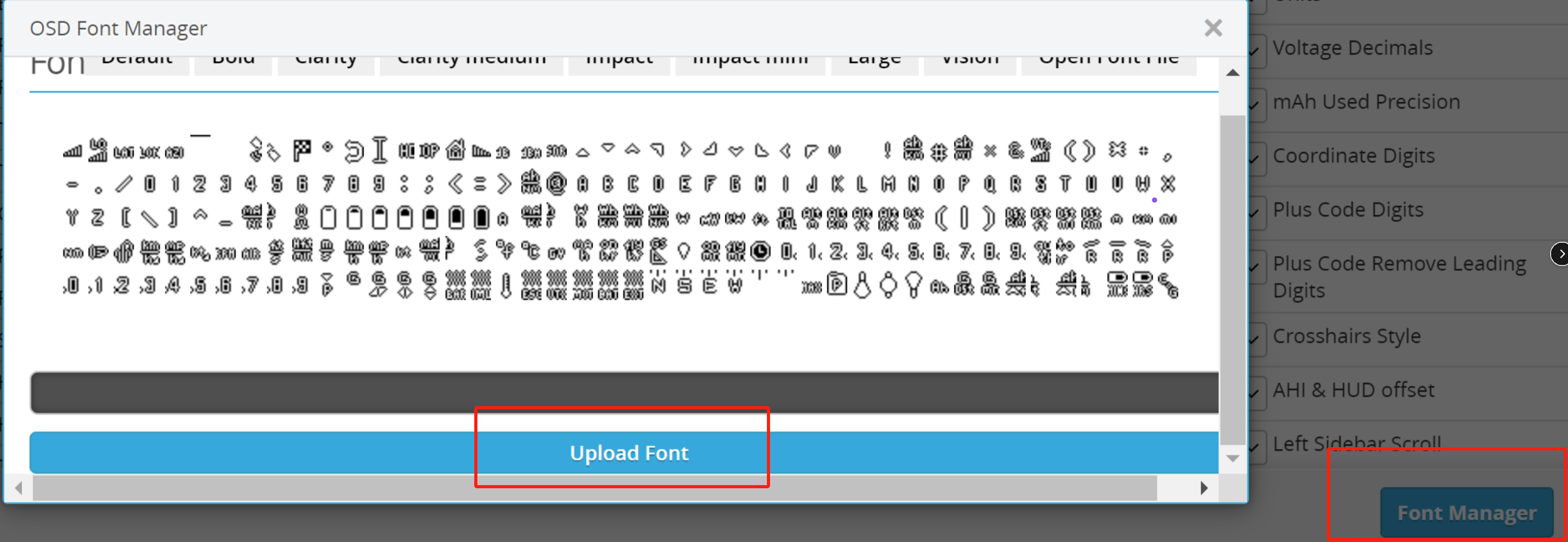

If you encounter font errors or display issues in the OSD, you can click on FONT MANAGER, scroll to the bottom, and perform a font update.

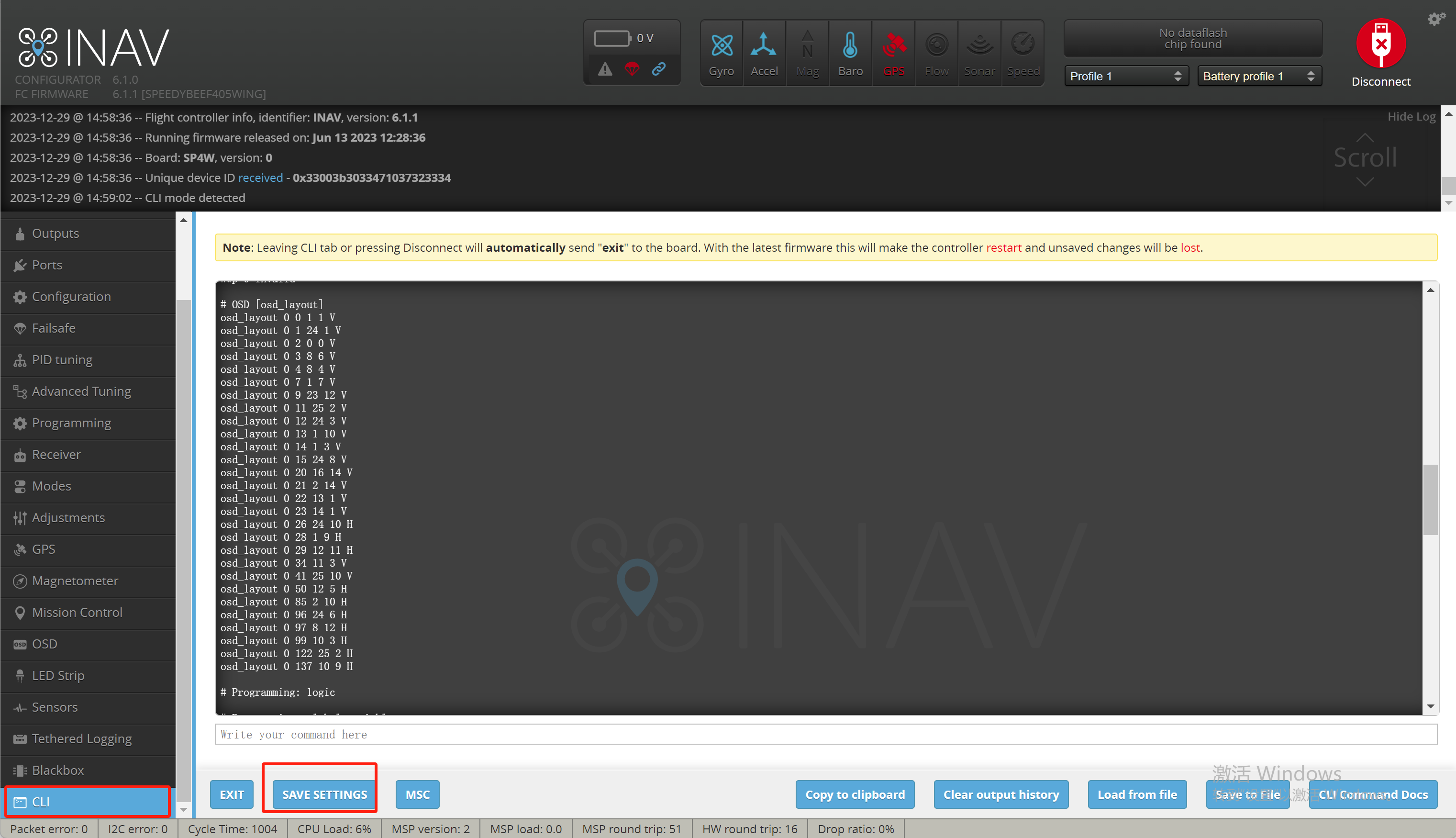

You can directly import our pre-configured settings by copying and pasting the settings below into the CLI, and then clicking SAVE.



osd_layout 0 0 1 1 V
osd_layout 0 1 24 1 V
osd_layout 0 2 0 0 V
osd_layout 0 3 8 6 V
osd_layout 0 4 8 4 V
osd_layout 0 7 1 7 V
osd_layout 0 9 23 12 V
osd_layout 0 11 25 2 V
osd_layout 0 12 24 3 V
osd_layout 0 13 1 10 V
osd_layout 0 14 1 3 V
osd_layout 0 15 24 8 V
osd_layout 0 20 16 14 V
osd_layout 0 21 2 14 V
osd_layout 0 22 13 1 V
osd_layout 0 23 14 1 V
osd_layout 0 26 24 10 H
osd_layout 0 28 1 9 H
osd_layout 0 29 12 11 H
osd_layout 0 34 11 3 V
osd_layout 0 41 25 10 V
osd_layout 0 50 12 5 H
osd_layout 0 85 2 10 H
osd_layout 0 96 24 6 H
osd_layout 0 97 8 12 H
osd_layout 0 99 10 3 H
osd_layout 0 122 25 2 H
osd_layout 0 137 10 9 H

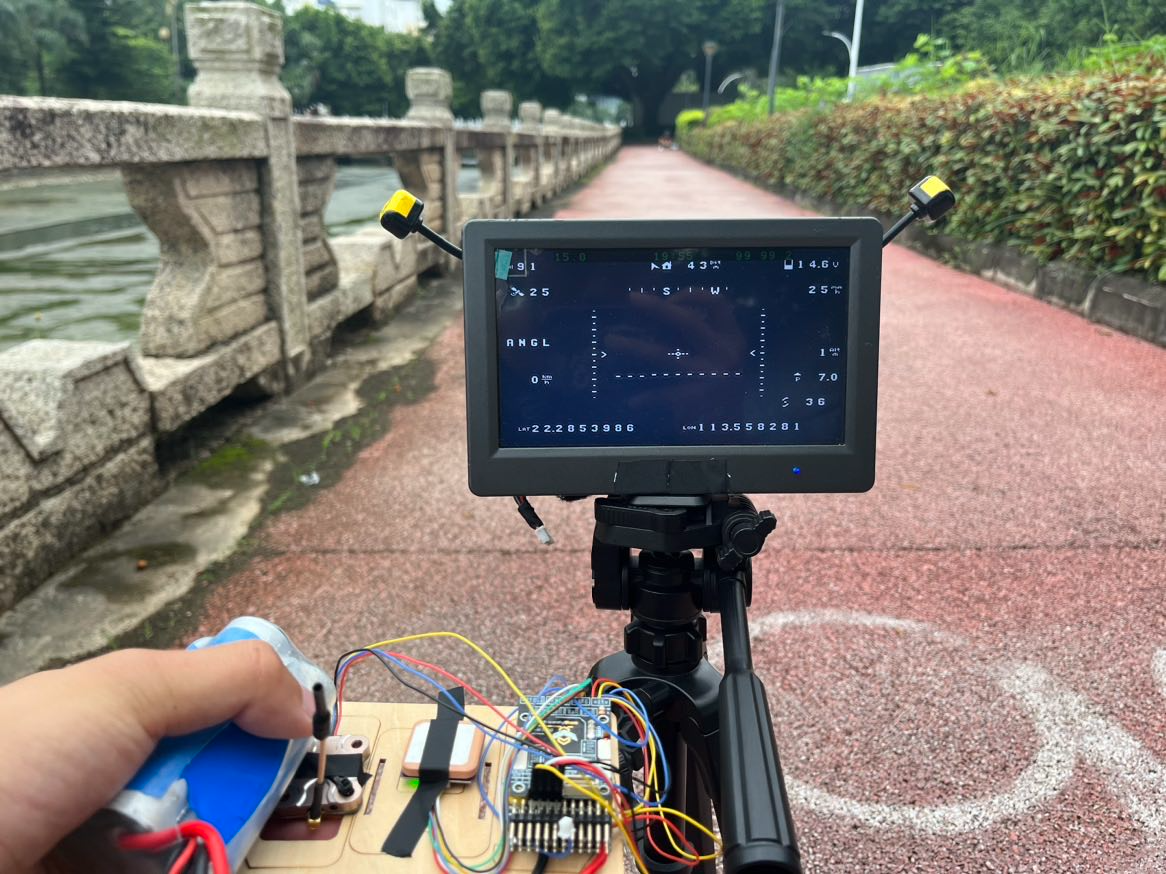

The actual screen display is as follows:
