Custom LED Strip Settings

1. LED Wiring Ports and Configuration Settings

1.1Reference to the Manual

Refer to the manual "English_20230531 Compressed (mybigcommerce.com)" for detailed instructions.

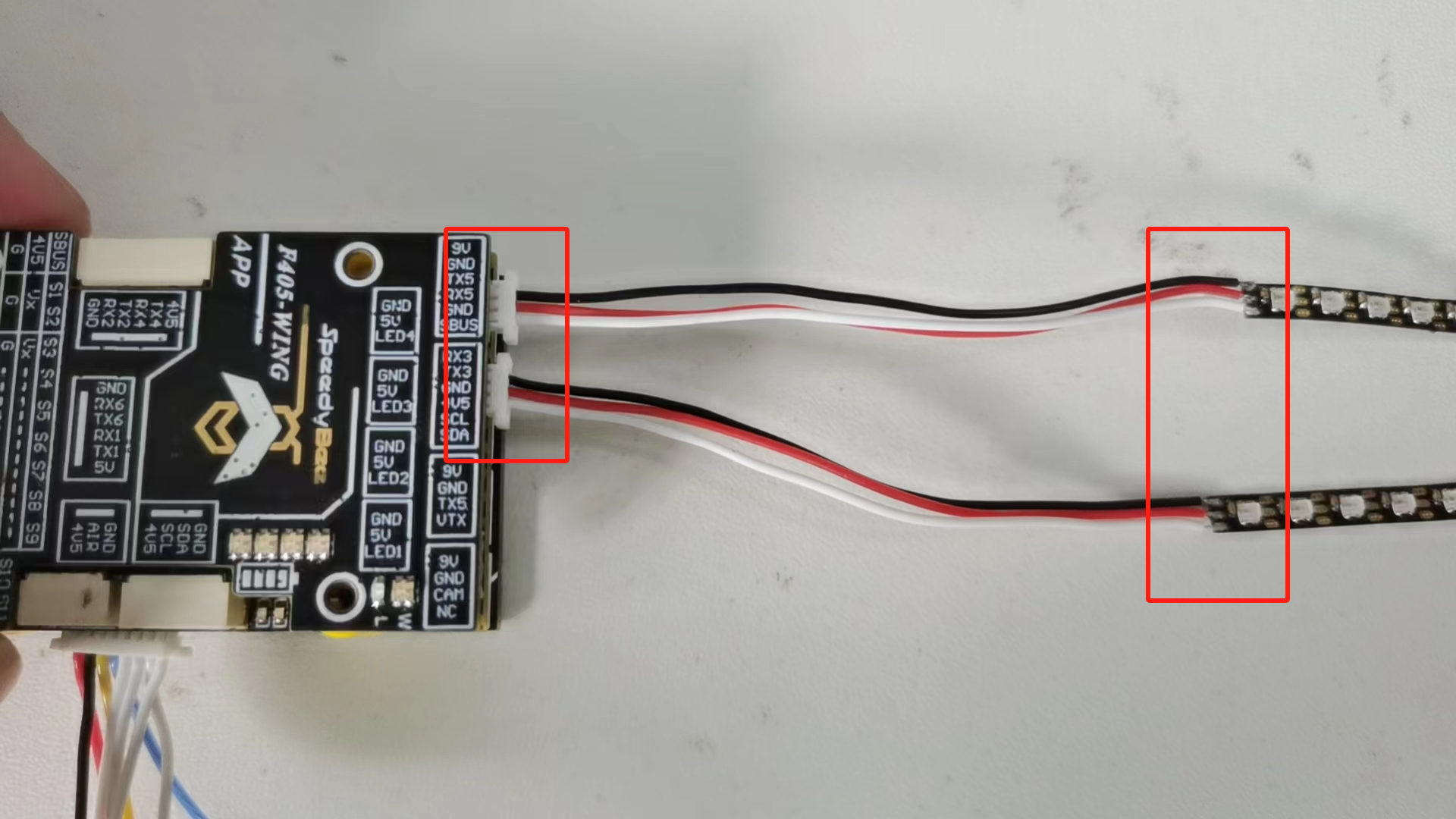

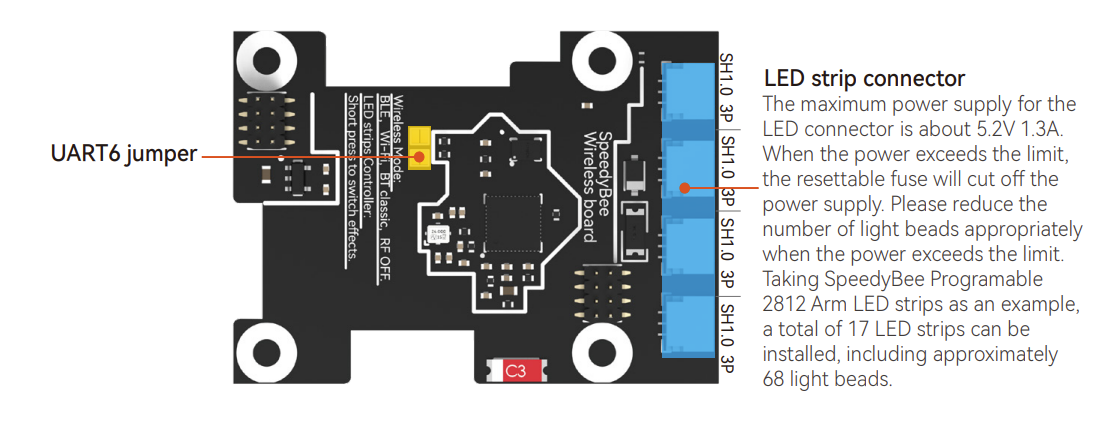

Please connect the LED strip to one of the following four ports. If you have two LED strips, use two ports. Be mindful that the port type should be SH1.0 3P.

Be mindful of the correct order of the positive and negative poles and the signal line.

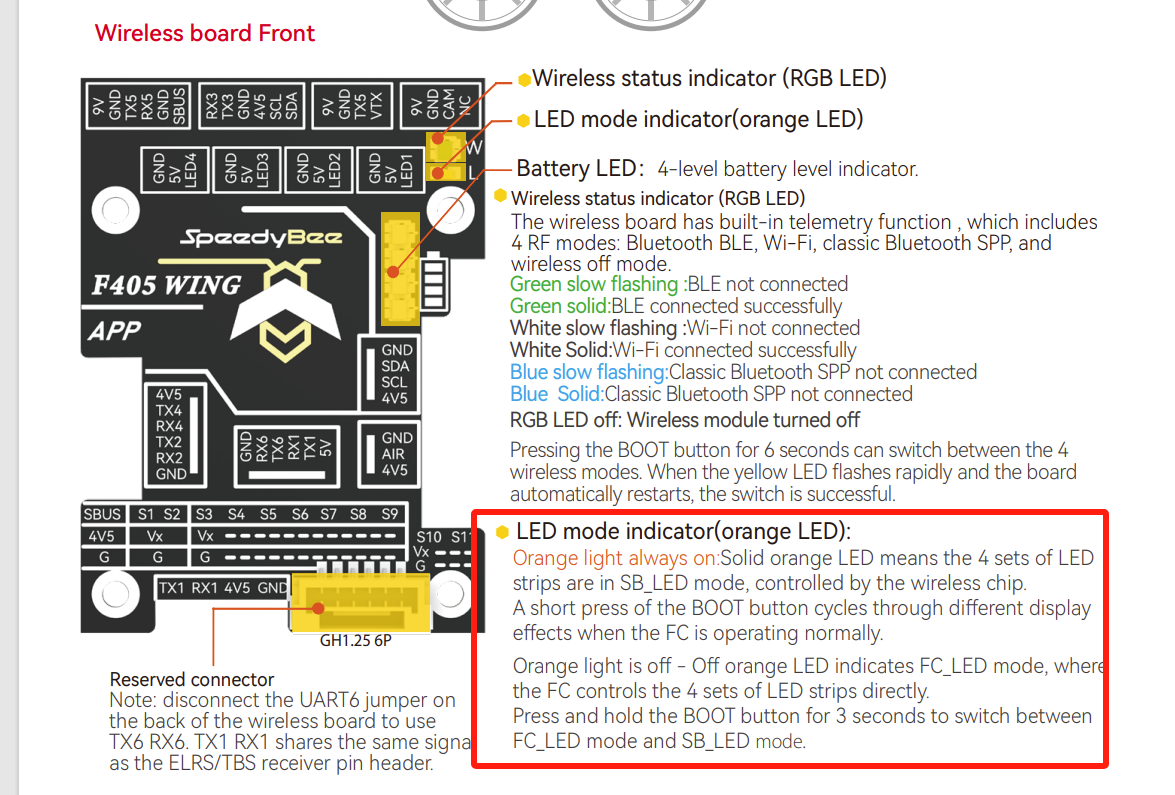

1.3 FCLED Mode/SBLED Mode

2.Flight Controller Configuration for FC_LED Mode

Briefly press and release the BOOT button for 3 seconds and ensure that the orange light on the top of the flight controller is off.

2.1 LED Output Switch

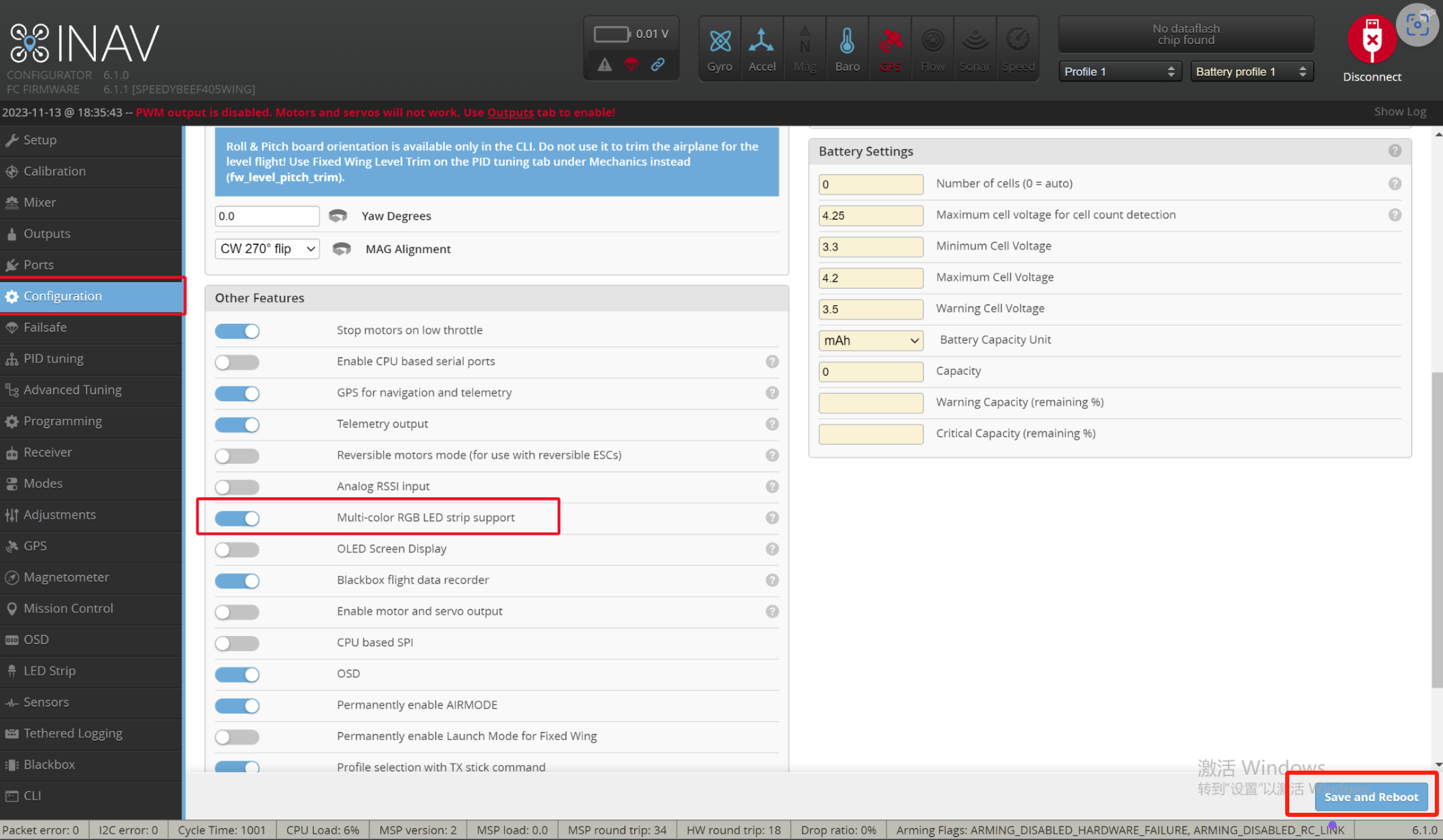

• Go to the "Configuration" interface.
• Turn on the LED switch as shown in the diagram below.
• Click "Save and Reboot" in the bottom right corner.

2.2 LED Strip Settings

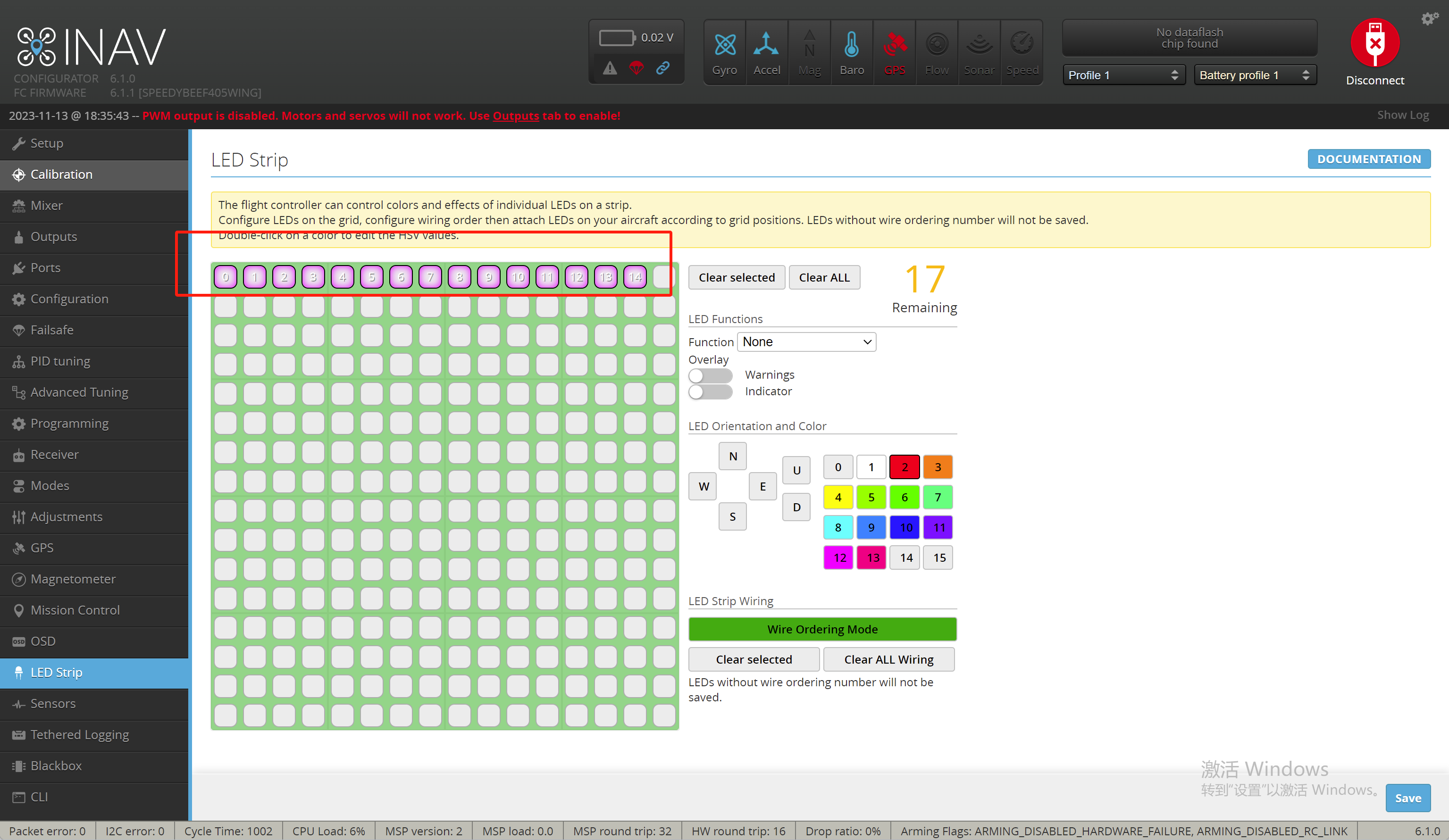

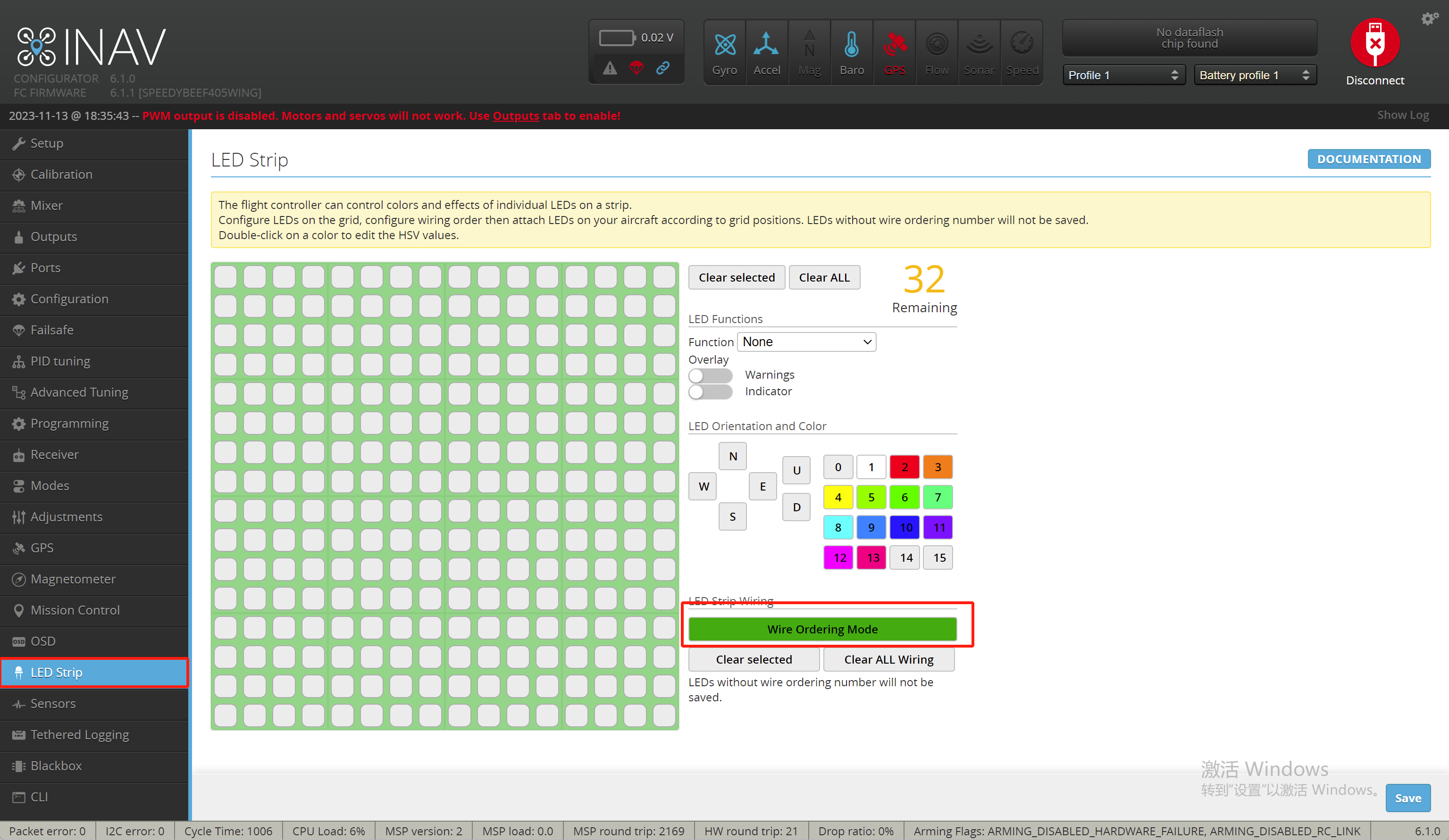

2.2.1 Enter the "LED Setup" interface and click "LED Strip Wiring." As shown in the diagram, a green border will appear on the left side.进入"led设置”界面，并单击“LED布线”，如下图，左边会显示绿色边框

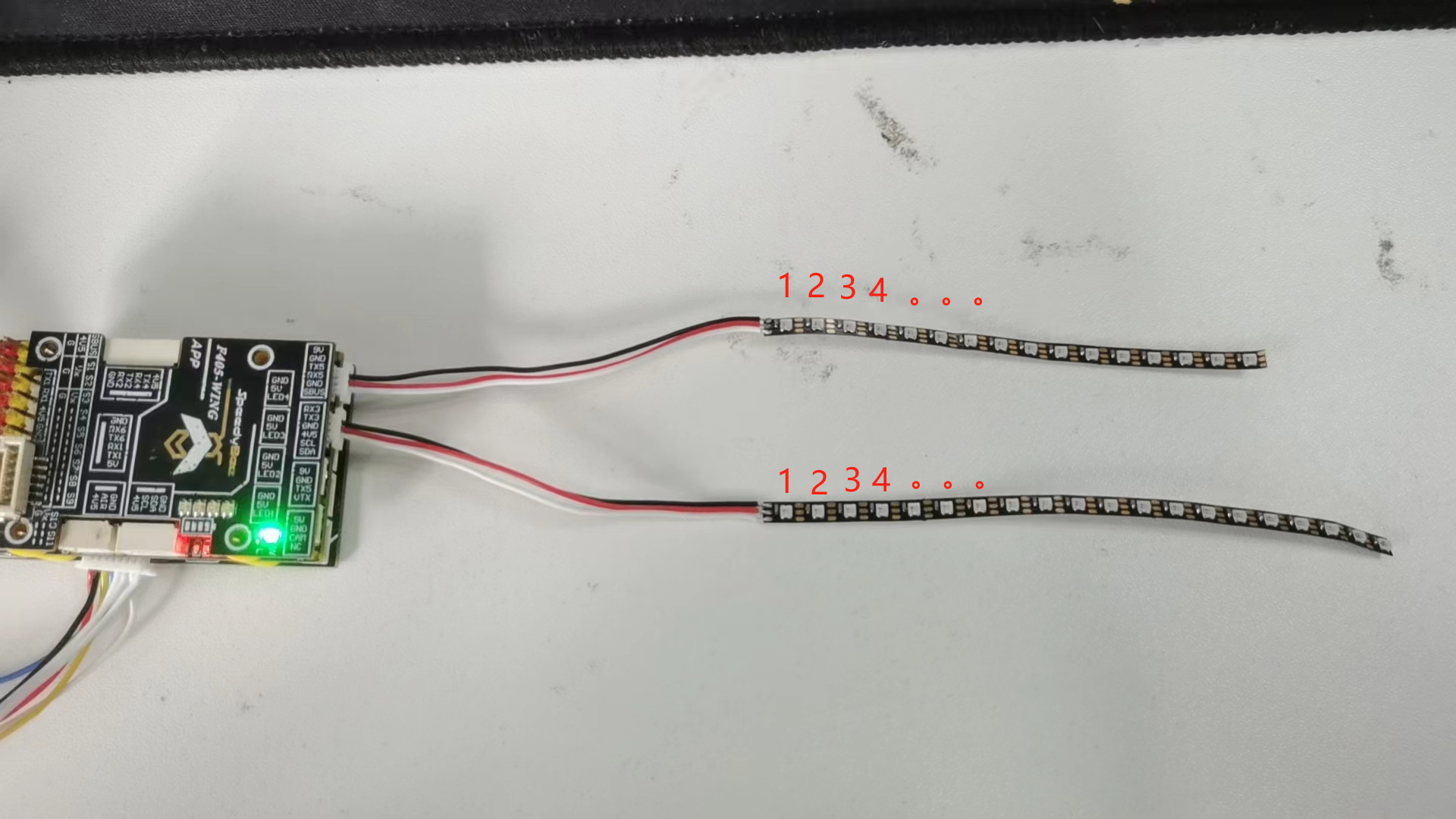

2.2.2 If there are two LED strips, the sequence for the second strip should match the first, with the first LED bead near the interface labeled as 1.

The displayed number on the Configurator represents the serial number of the light bulb at one end coming out from the flight control interface.

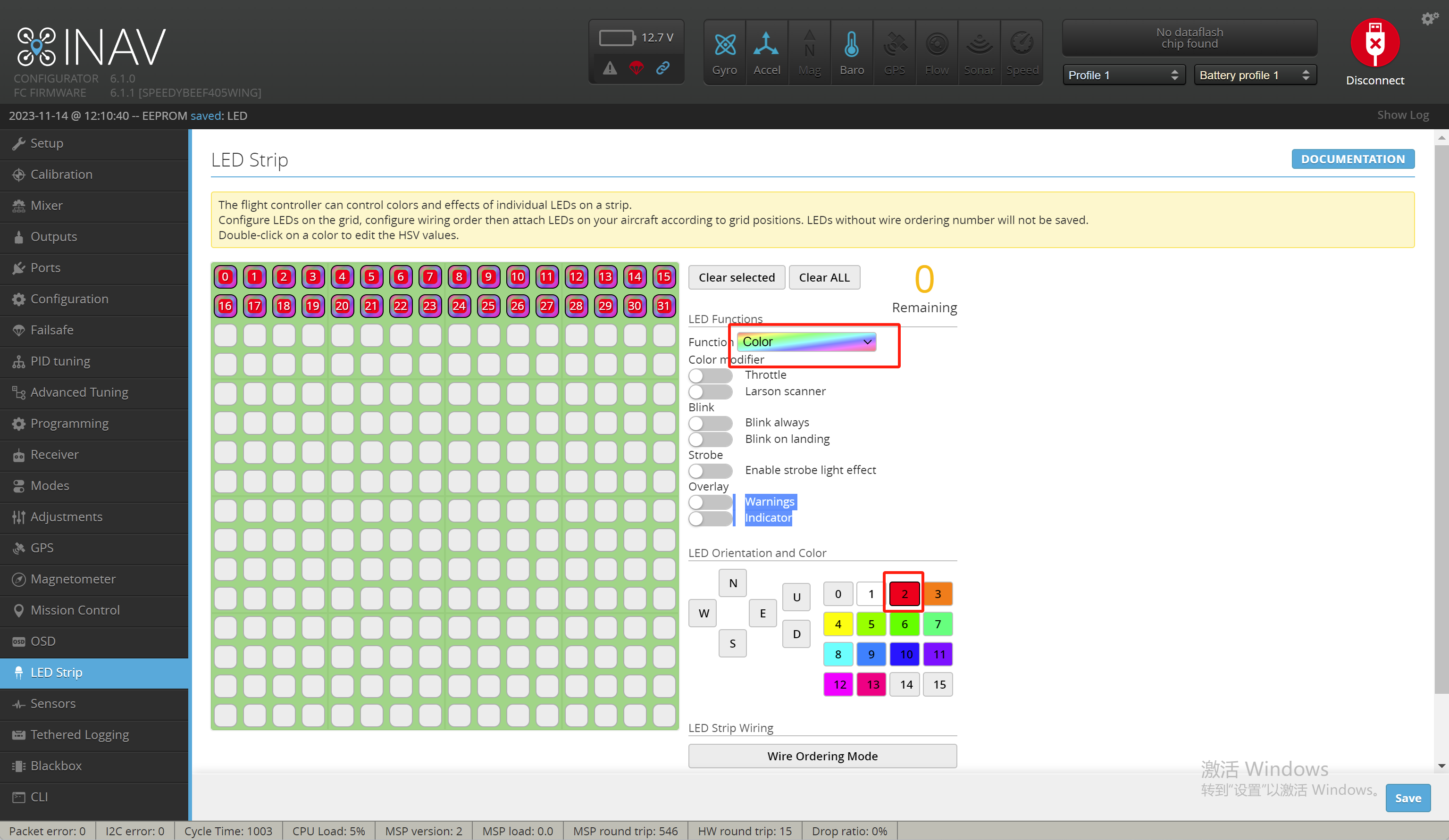

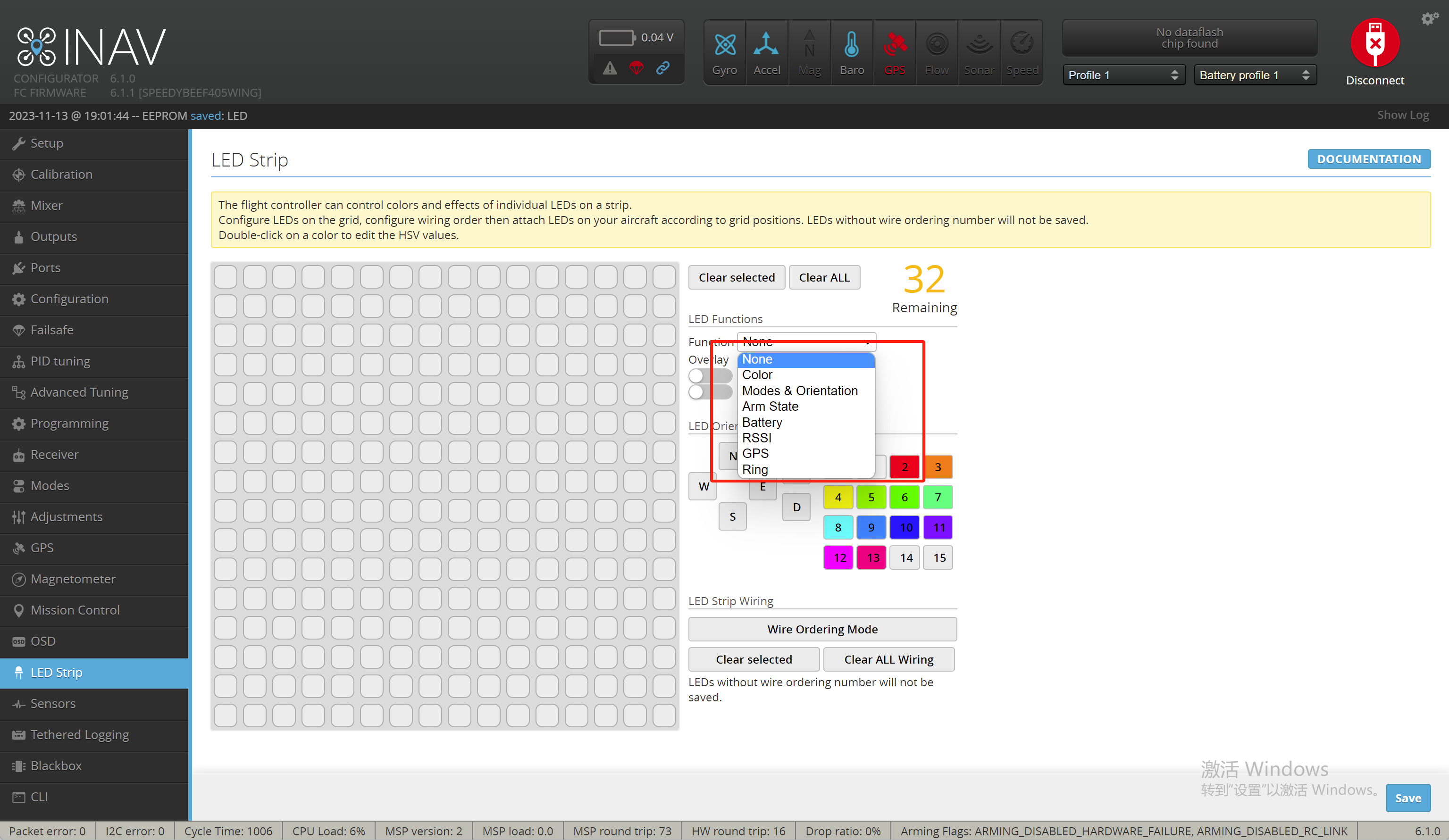

2.2.3 Change 'None' to 'Color' and save to activate setting the bead color.

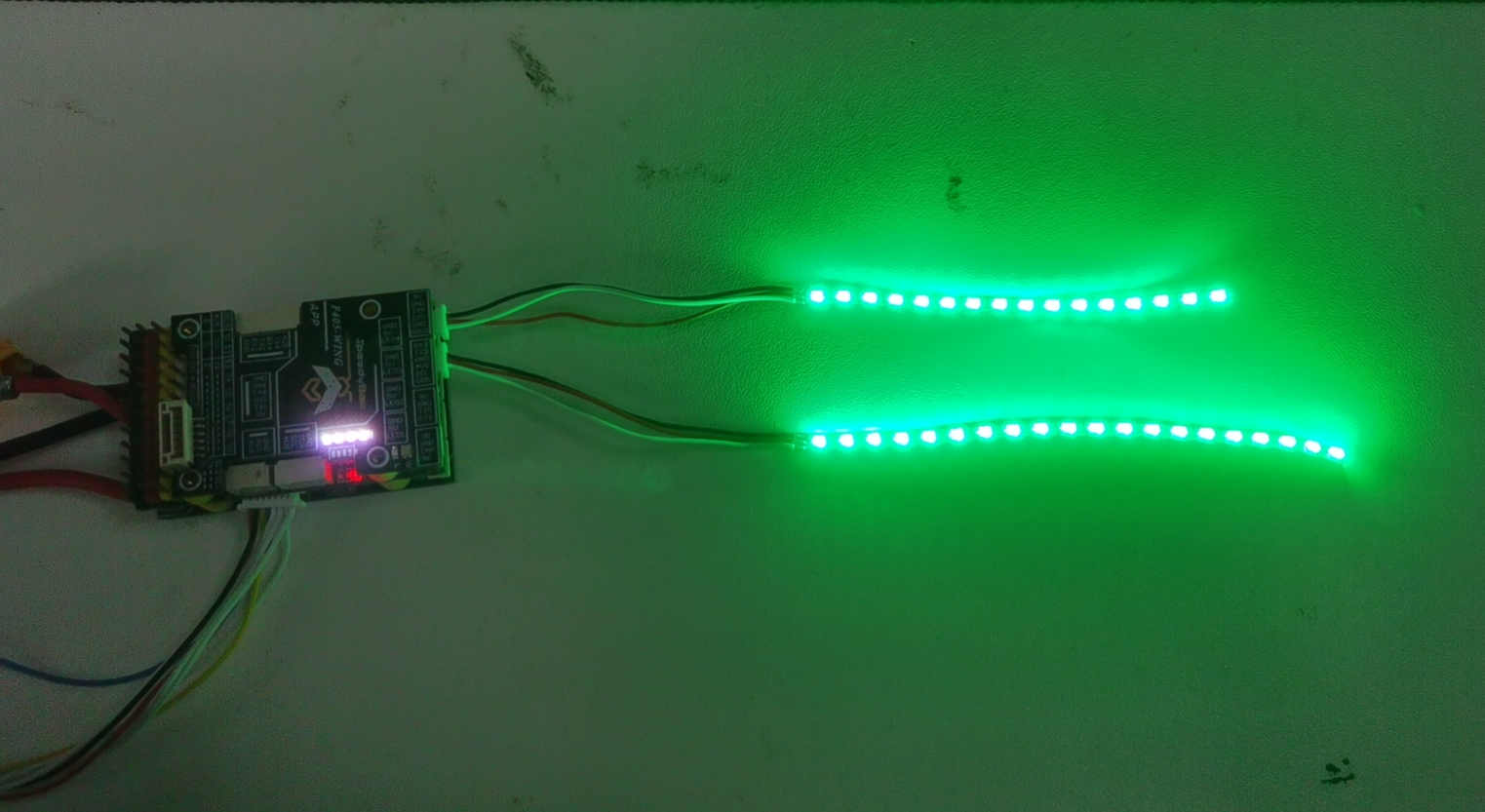

Double-click on the green color within the red box at the bottom to change the color of the LED beads.

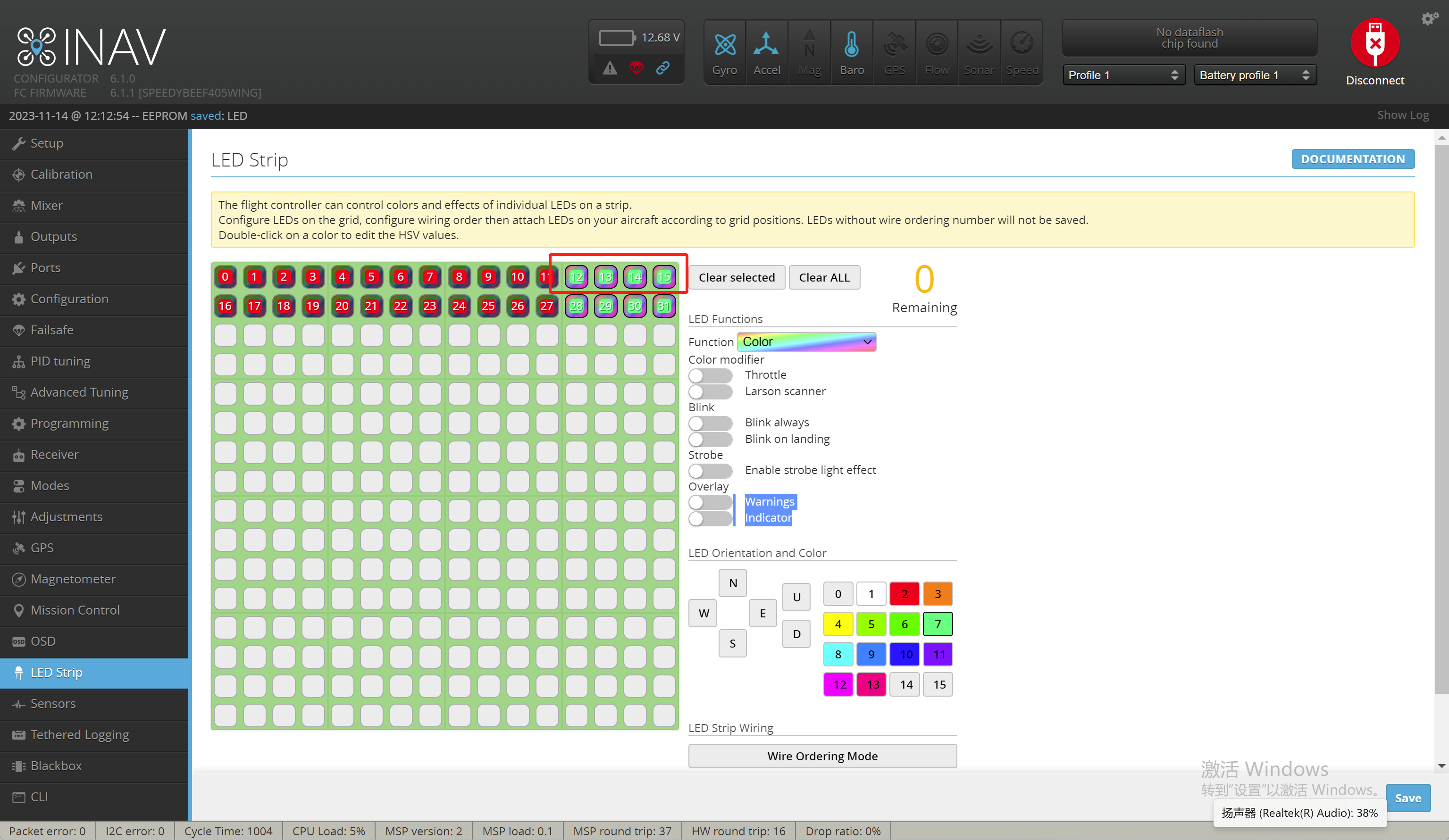

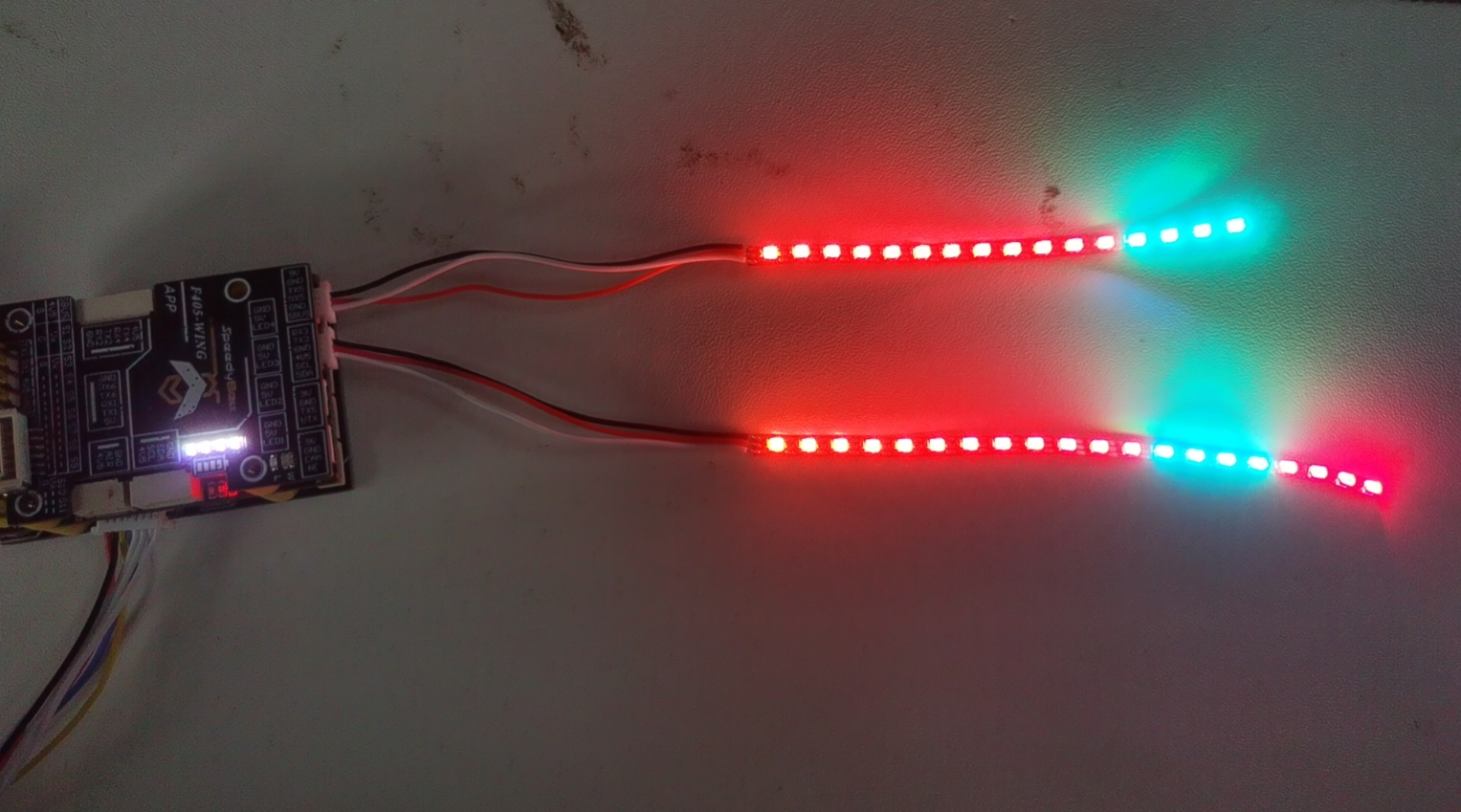

2.2.4 To set different colors, change the bead color according to the sequence number.

Note：

1. After each setting, click 'Save' in the bottom right corner as indicated by the red box in the diagram. Only then will the LED strip change accordingly.

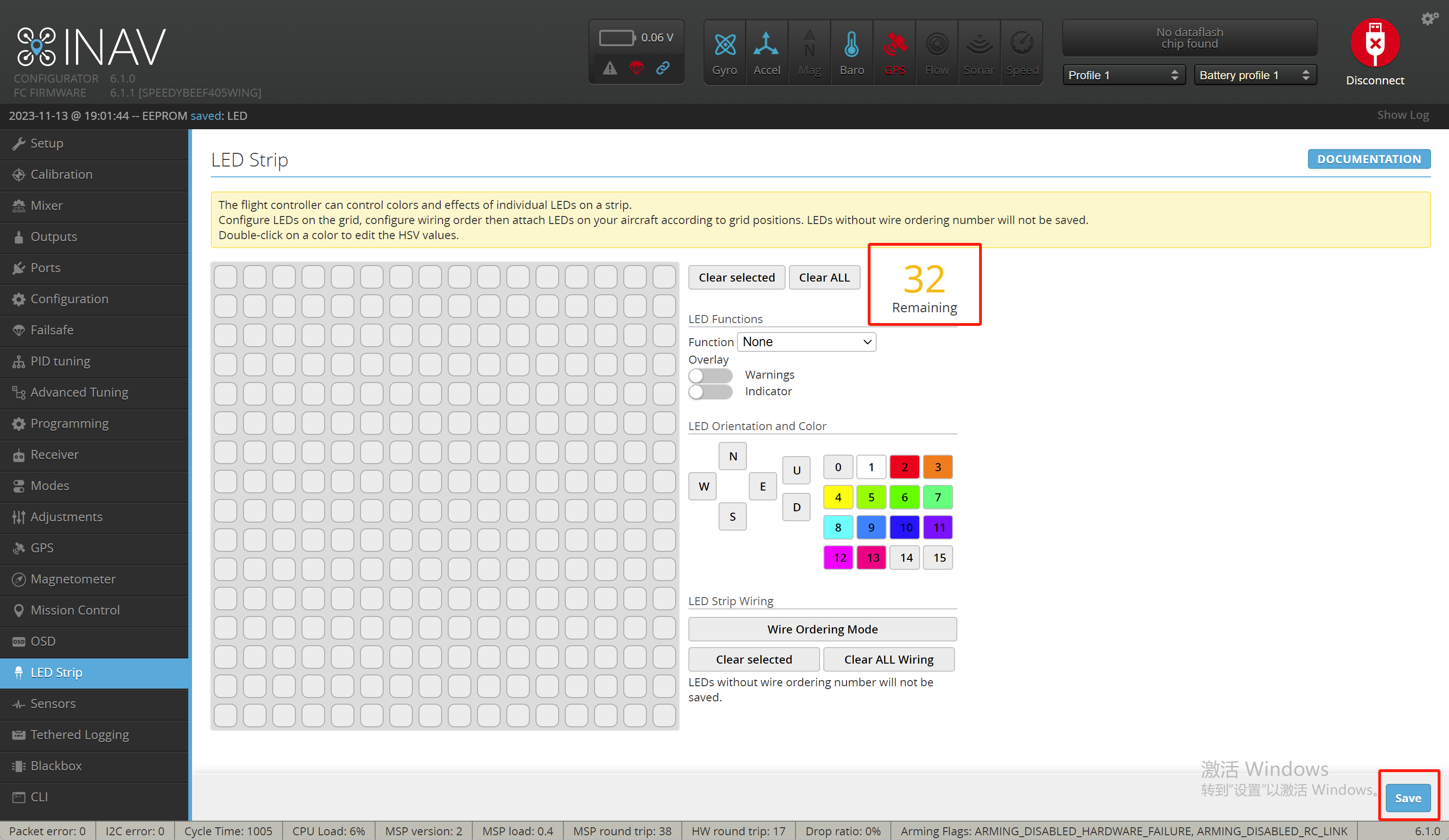

2.A maximum of 32 LED beads can be set, as indicated by the red box in the diagram.

3. Advanced Settings

3.1 Besides setting the LED lights to a constant on state, there are many ways to configure LED lights based on different data. You can experiment with the options marked in the red box below.
