How to read blackbox files in Mission Planner.

1， Prepare a FAT32 format memory card with a size of 16GB or less (including 16GB).

（We recommend using Speedybee's 8GB Class10 high-speed card. It has been extensively tested by us and proven to be stable and reliable.）

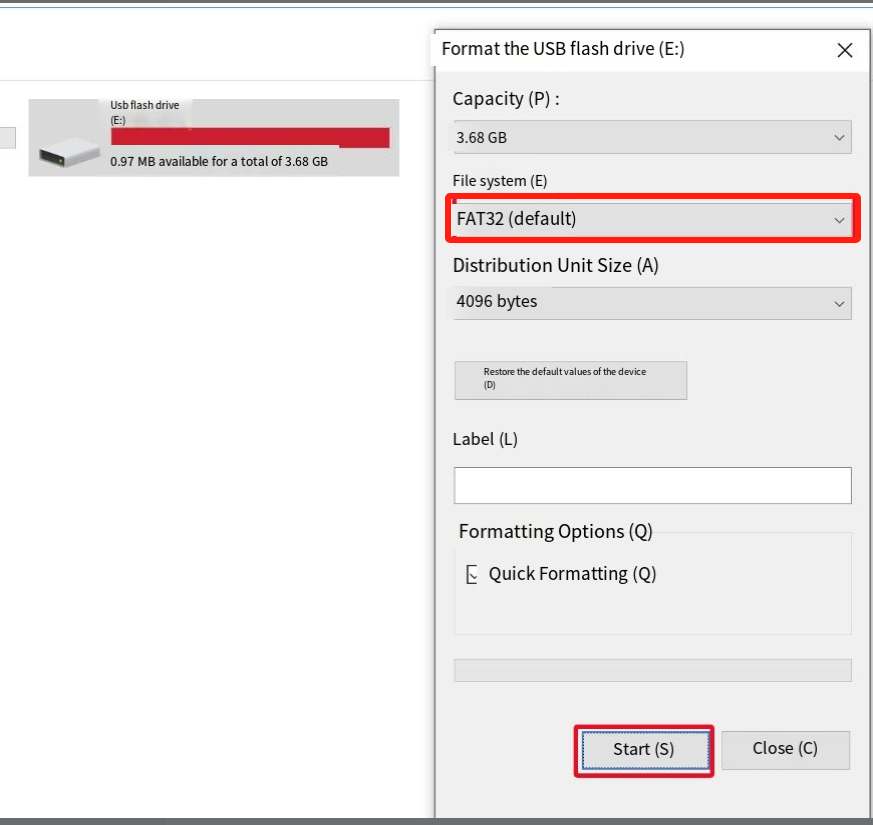

If it is not FAT32, right-click and select "Format". Please format it to FAT32.

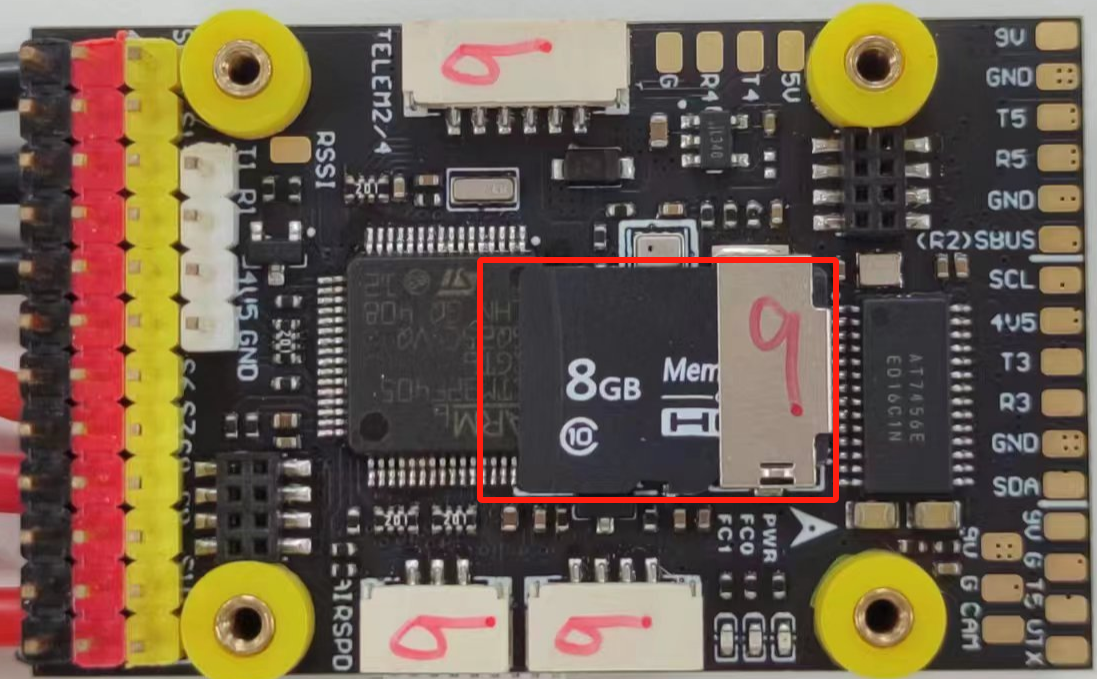

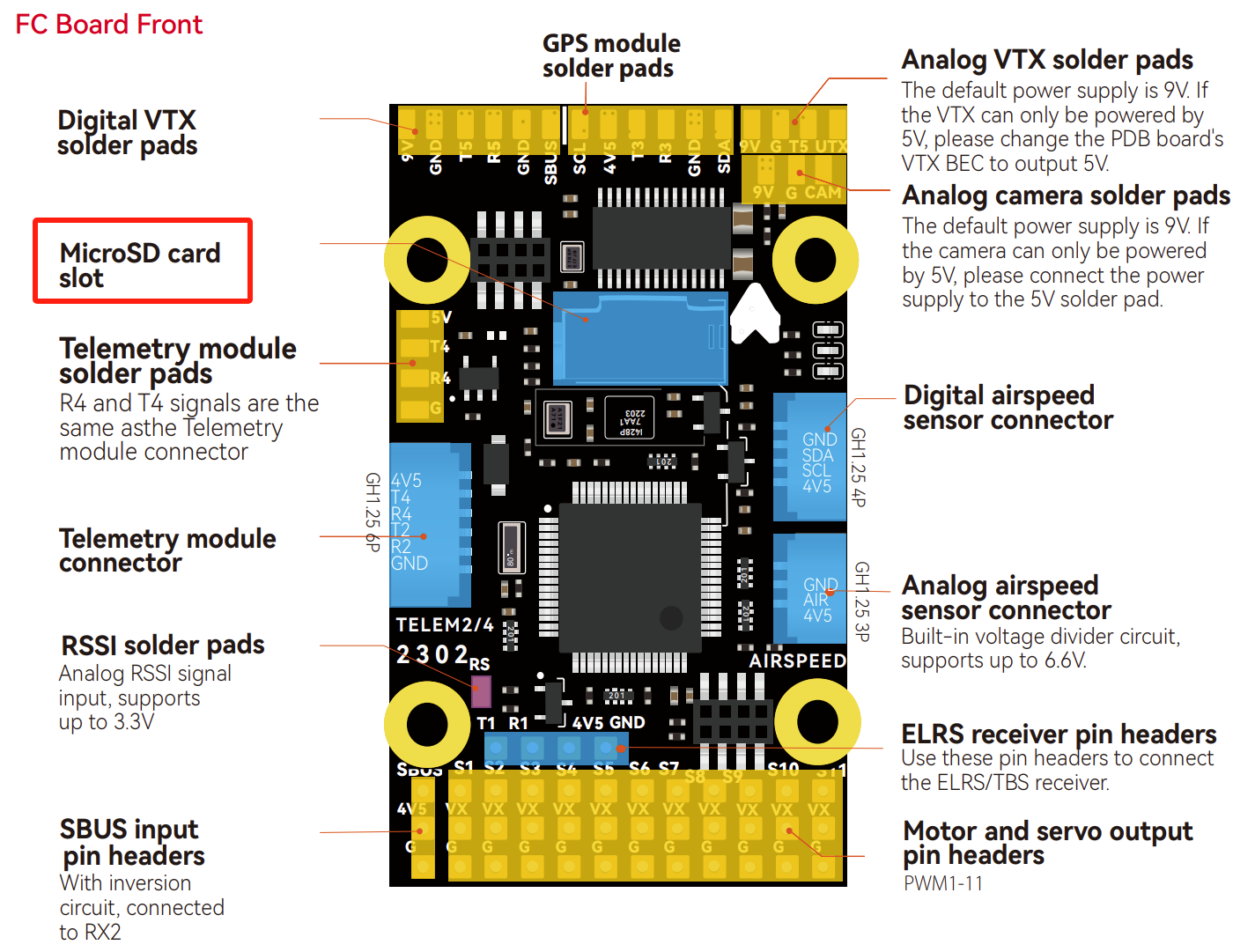

2， Insert it into the SD card slot of the flight controller.

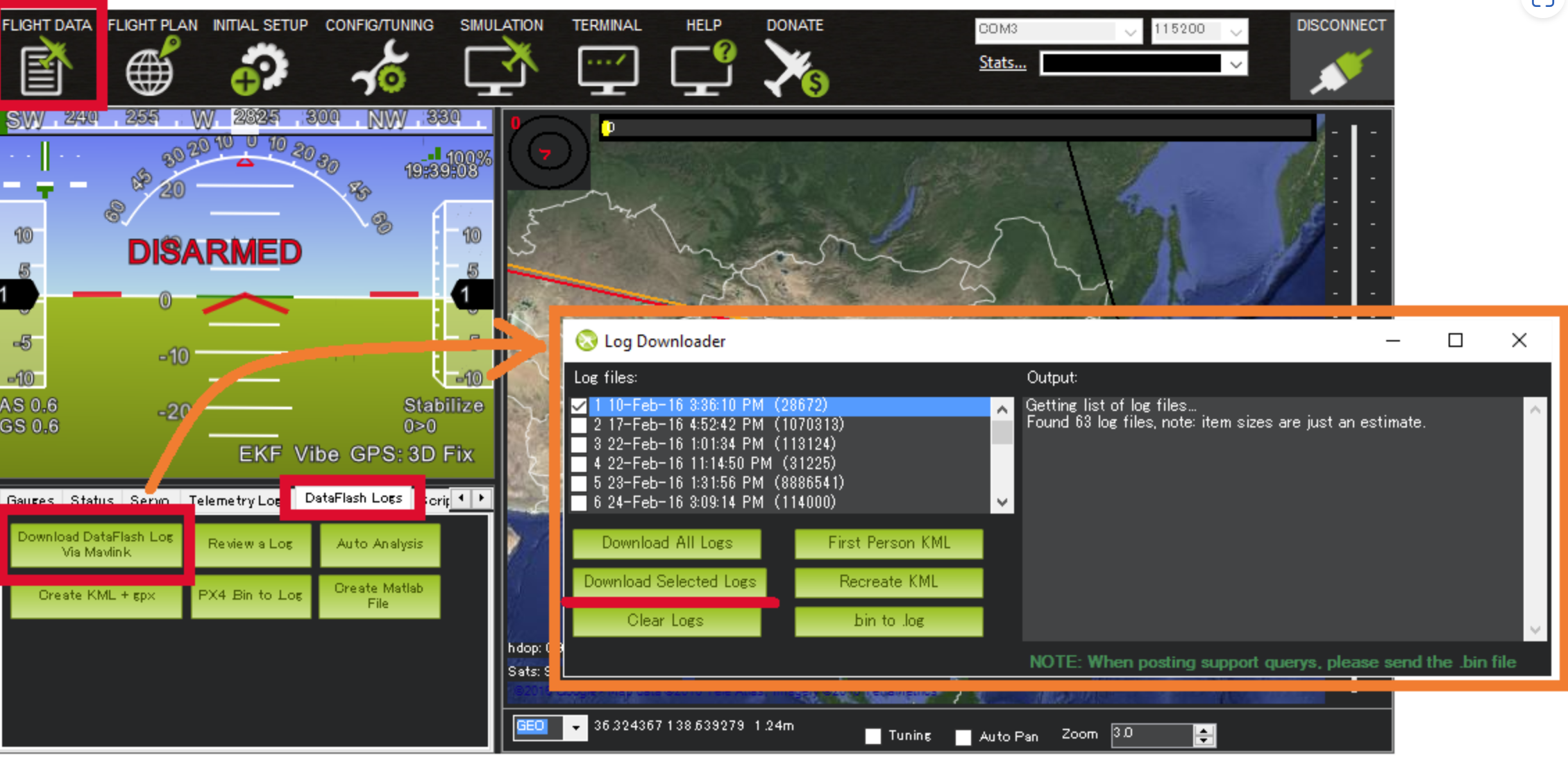

3，Connect the flight controller to the Mission Planner Configurator, go to DATA -> Dataflash logs -> DOWNLOAD Dataflash log via MAVLink, select the desired log, and click 'Download Selected Logs' to download the selected logs.

You can see the log files recorded by the flight controller after each successful arming. Each arming event will result in the creation of a log file.

（If the log files are not displayed, please check the following: a) Whether the SD card is inserted incorrectly or is loose; b) Whether the flight controller has been armed.）



4，Blackbox reading：

Click 'Review a log'

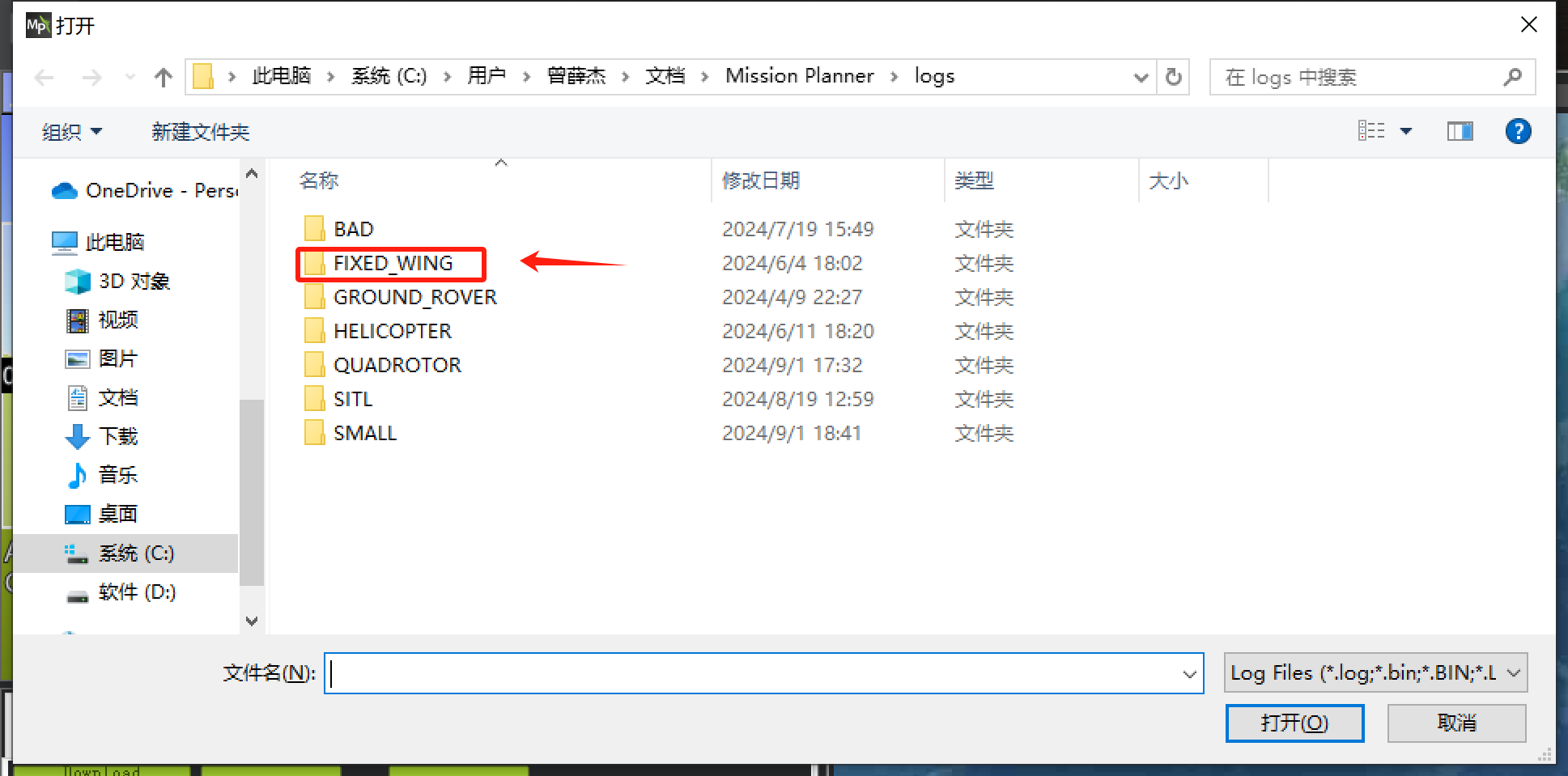

Open the window, and double-click 'fixed wing' (by default, fixed-wing log files are downloaded to the FIXED_WING folder)

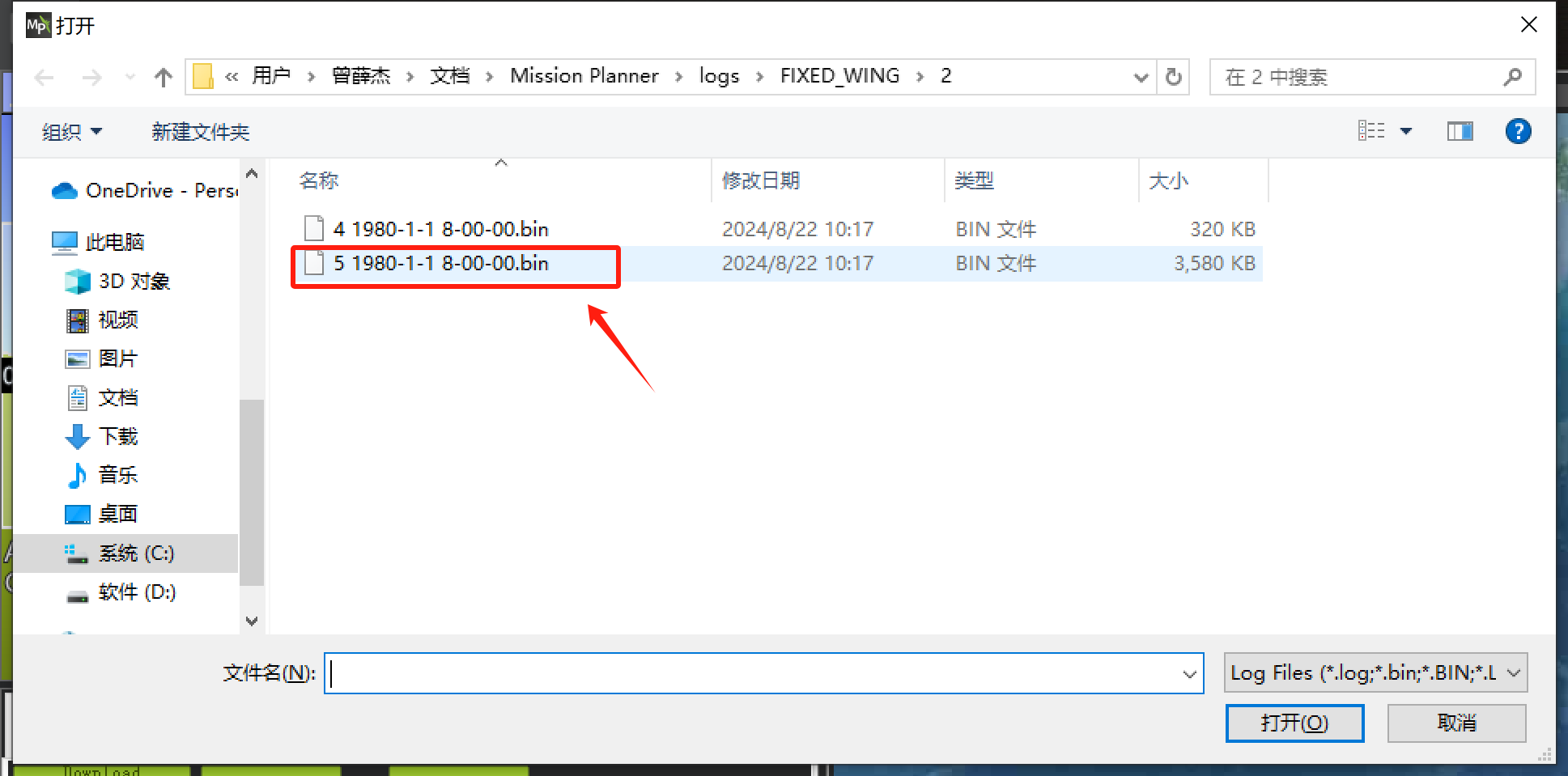

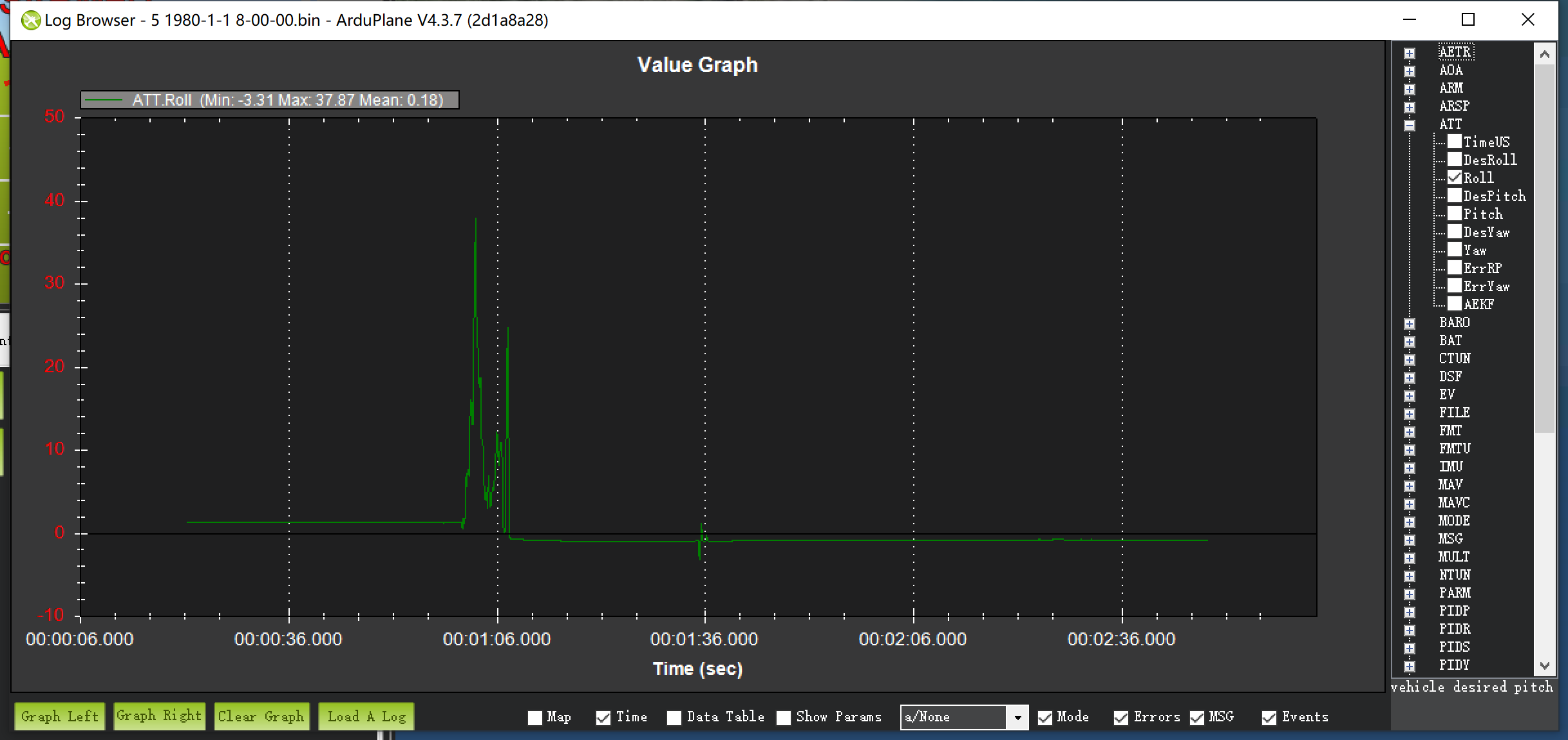

Double-click any log file to analyze it in Mission Planner.
