How to Bind ELRS Receiver

1.Verify Receiver Status

First, please observe the status of the LED indicator on the ELRS receiver.

If the receiver is not bound, the status of the LED indicator on the receiver should be slow flashing (once every 500ms).

• The LED indicator status is abnormal？

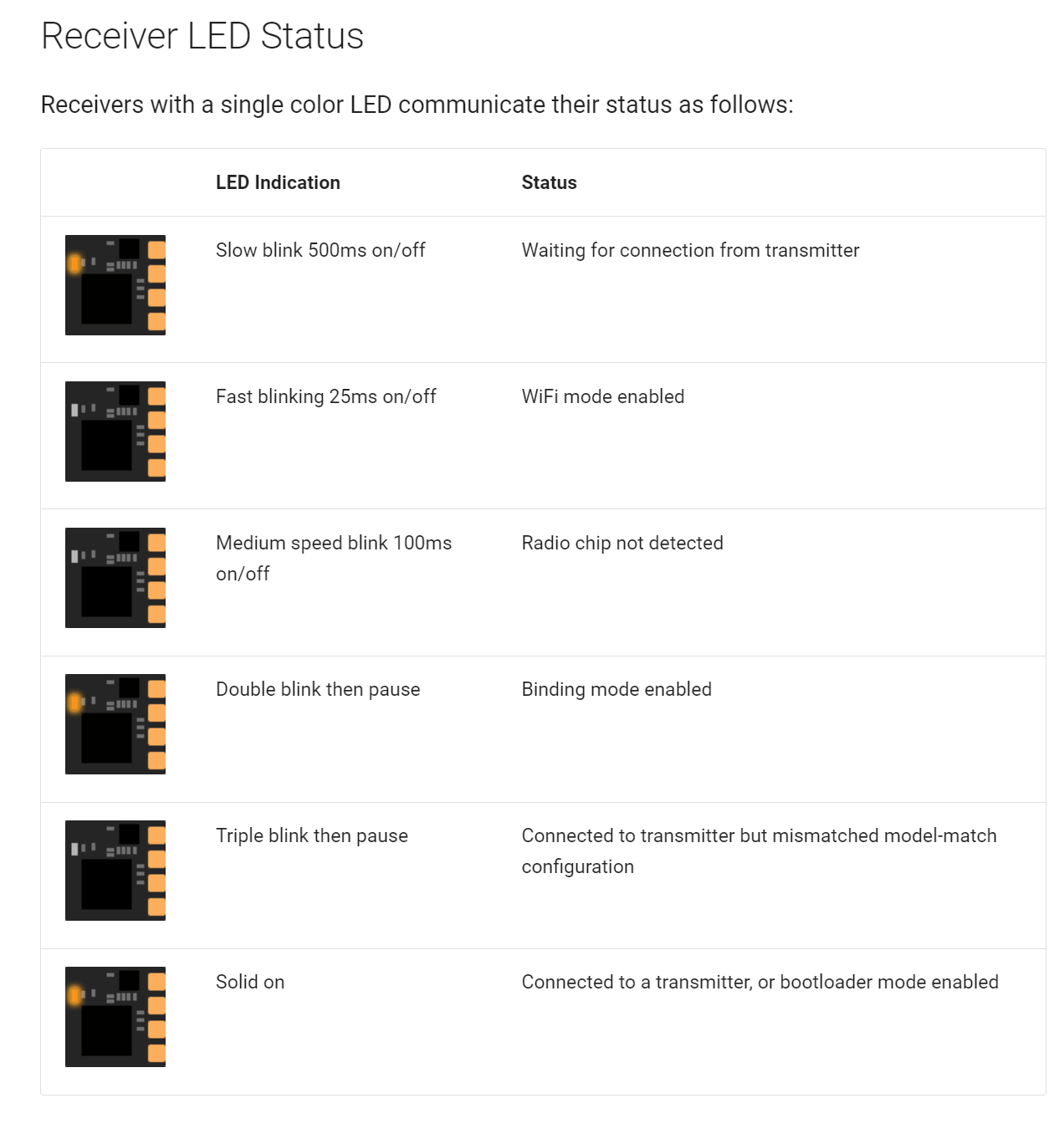

  Please refer to the table below to confirm the current status of the receiver (a steady light may indicate the receiver is bricked):



2.Enter Binding Mode

The ELRS receiver can enter binding mode by quickly plugging and unplugging the battery 3 times.

• The receiver cannot enter the binding mode

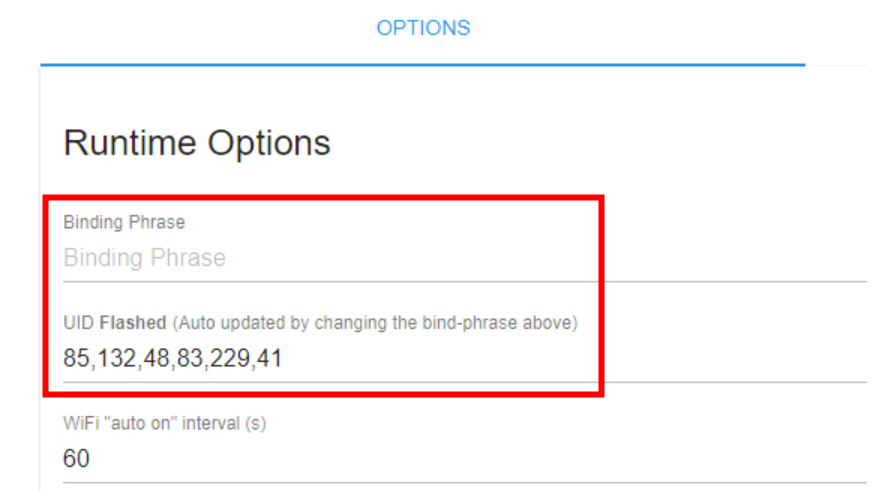

  If the receiver cannot enter binding mode by plugging and unplugging the battery, please check if the "binding phrase" is set in the receiver.



  After the receiver is set with a binding phrase, it cannot enter binding mode by plugging and unplugging the battery.

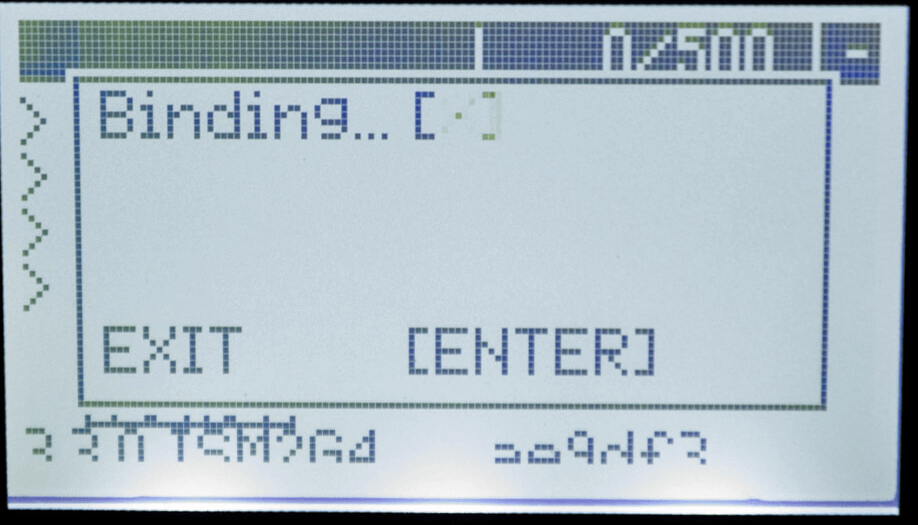

The transmitter module can enter binding mode through the ELRS script in the remote control.

If both the receiver and transmitter module are in binding mode but they cannot bind, this may be a problem with the incorrect firmware version.
