How can we configure the DJI FPV V2 remote controller in the F4MINI flight controller?

1.  Wiring

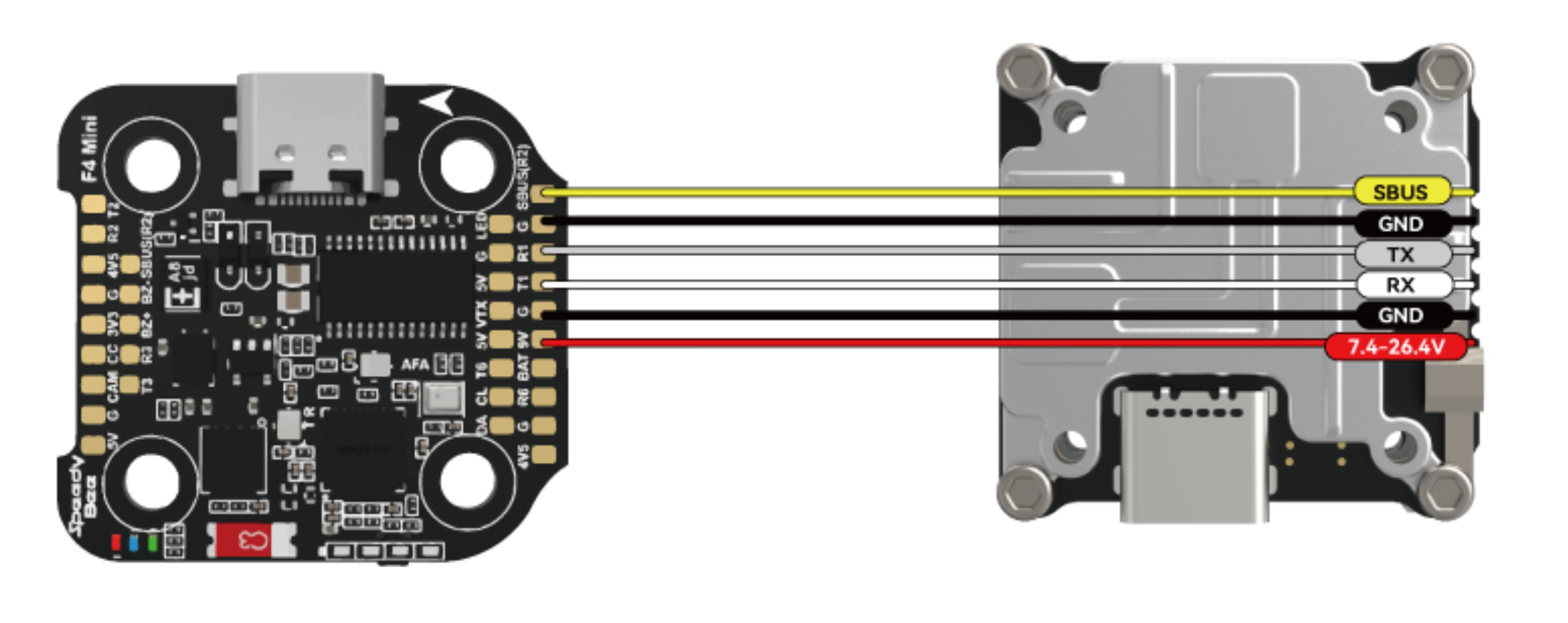

Please refer to the connection method in the figure below as an example

2. Bind

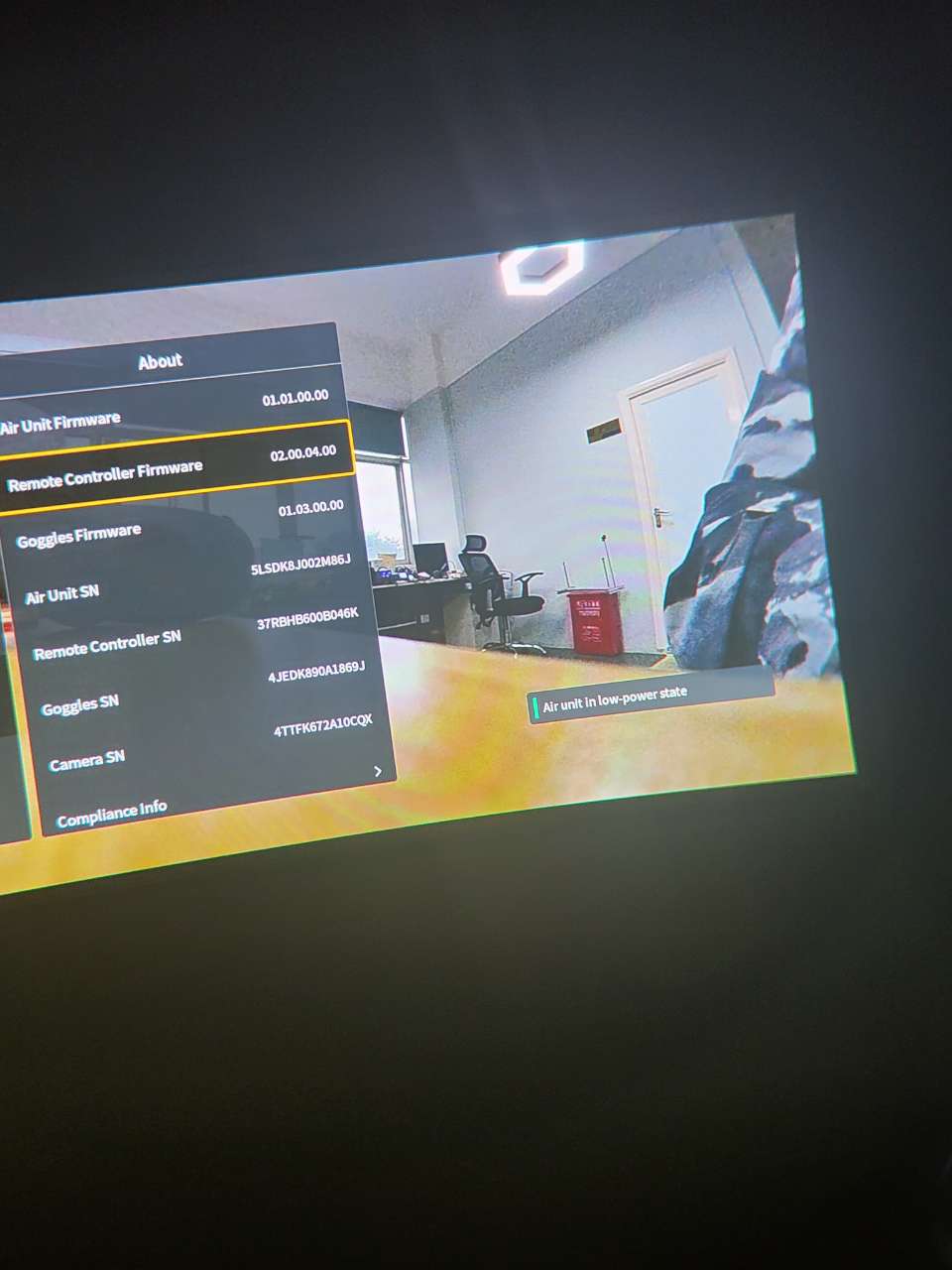

(1)Please verify if the firmware version of the air unit is correct.

For O3 AIR UNIT

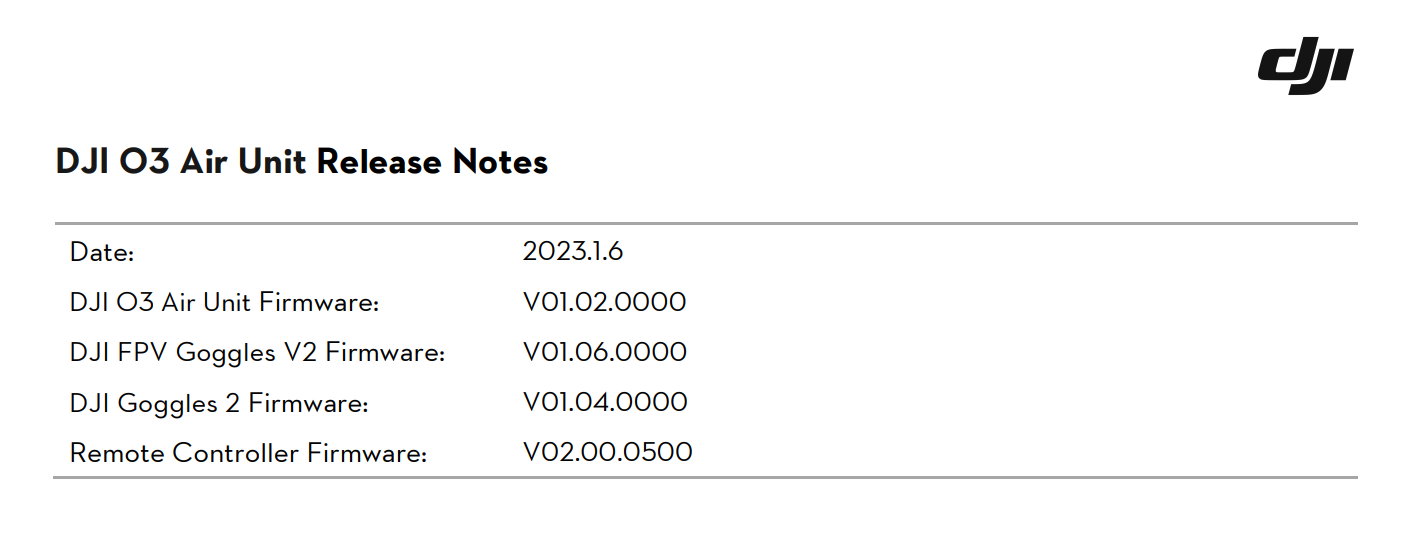

Kindly update the air unit, goggles, and remote controller with the following firmware versions.

For other AIR UNIT：

If one flies an Air-Unit equipped FPV drone with Goggles V1/V2 and FPV Controller 1, firmware 01.00.0608 is the one to use.

If one flies an Air-Unit equipment FPV drone with Goggles 2 and Controller 2, the firmware should be 01.01.0000

  (2) Press the bind button on the Air Unit, and the red indicator light of the Air Unit will stay on to enter the binding mode. Press the bind button on the Goggles, and the Goggles will beep and enter the binding state, waiting for a successful binding.

(3) Press the bind button on the Air Unit, and the red indicator light of the Air Unit will stay on to enter the binding mode. Hold down the power button on the remote controller until it beeps and enters the binding mode, then wait for a successful binding.

3. Settings

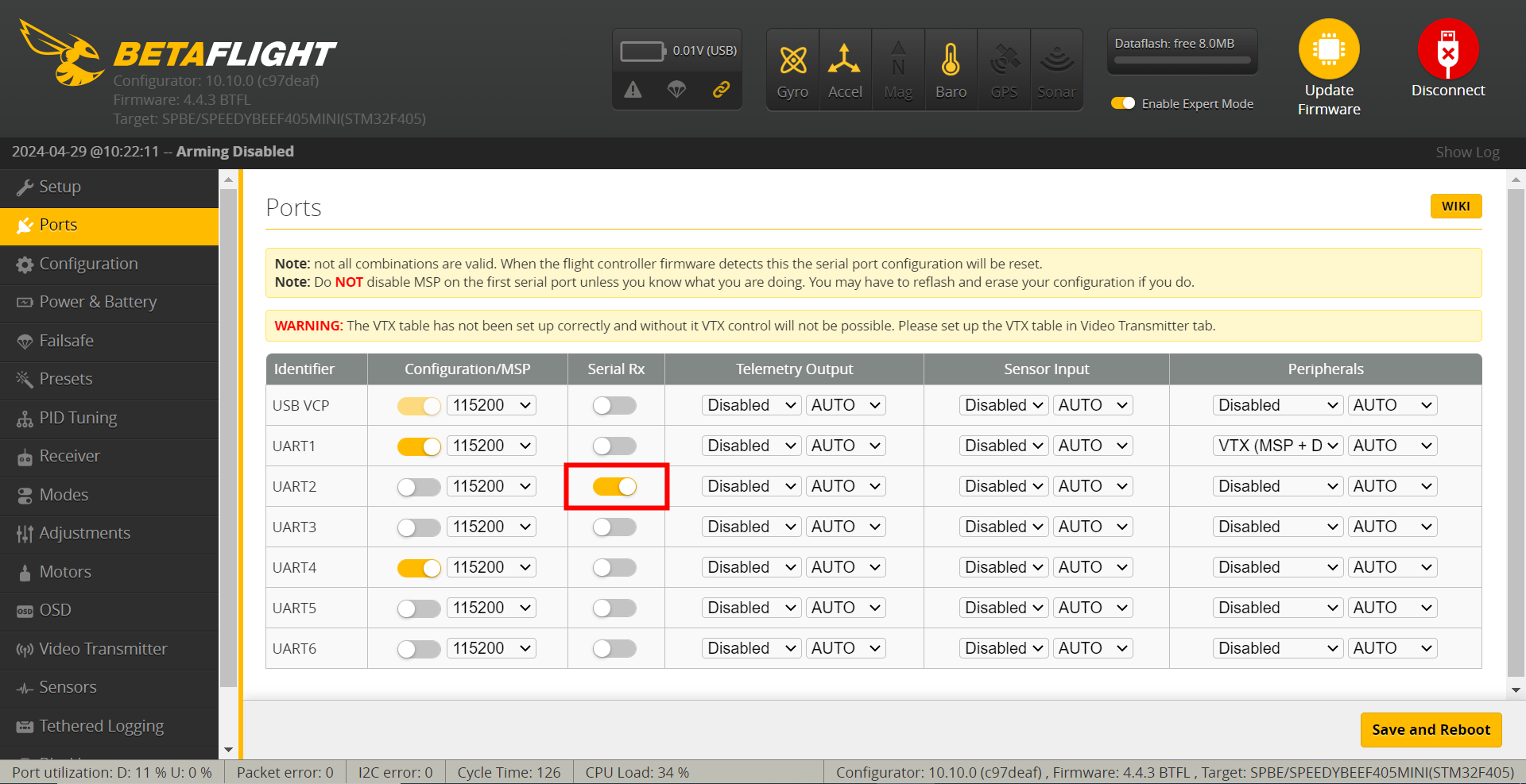

(1) Open  the Serial Rx (Receiver) option on UART 2 in the Ports tab of Betaflight.

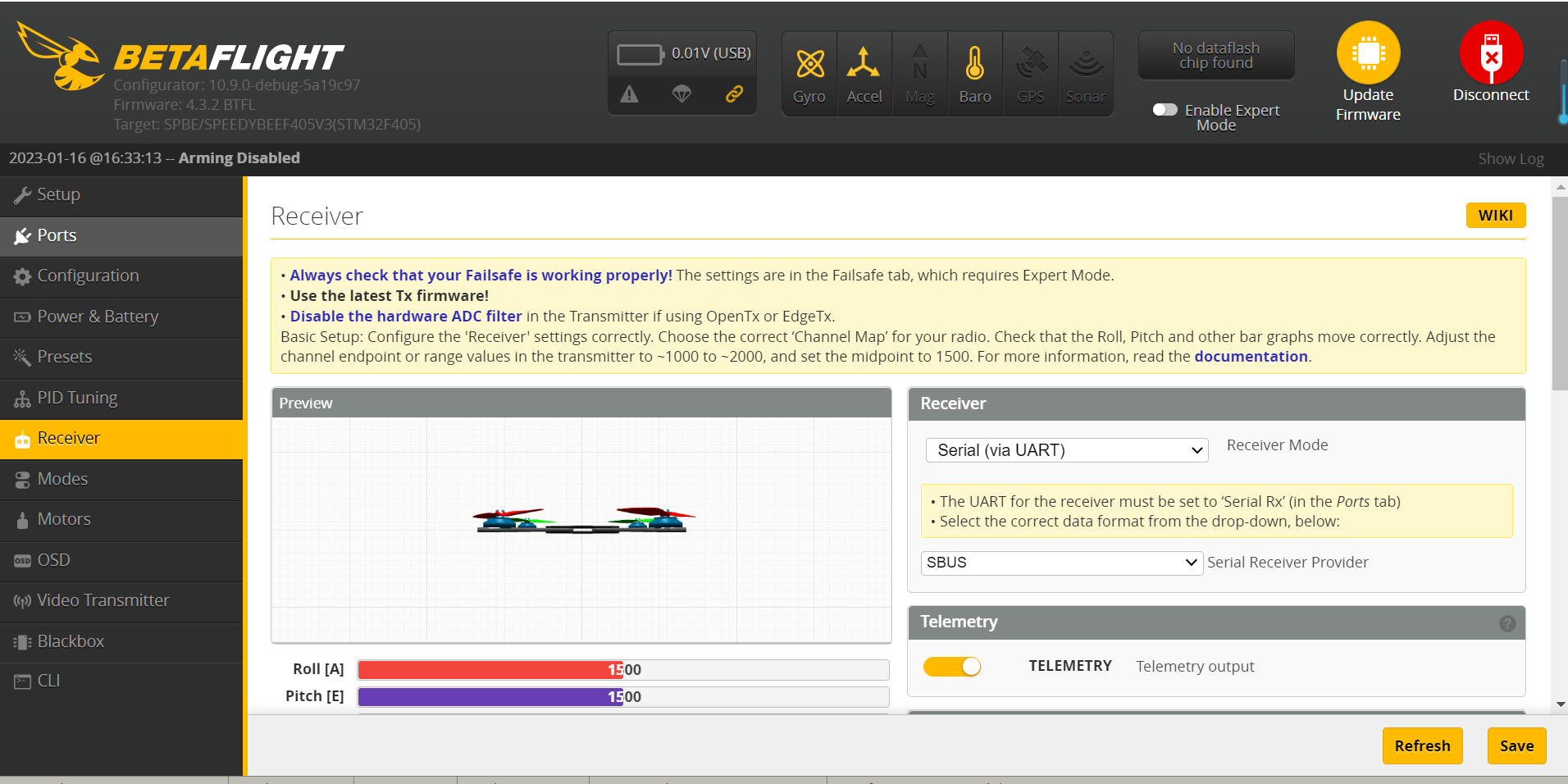

(2) Set the receiver protocol to SBUS in the Receiver tab of Betaflight.

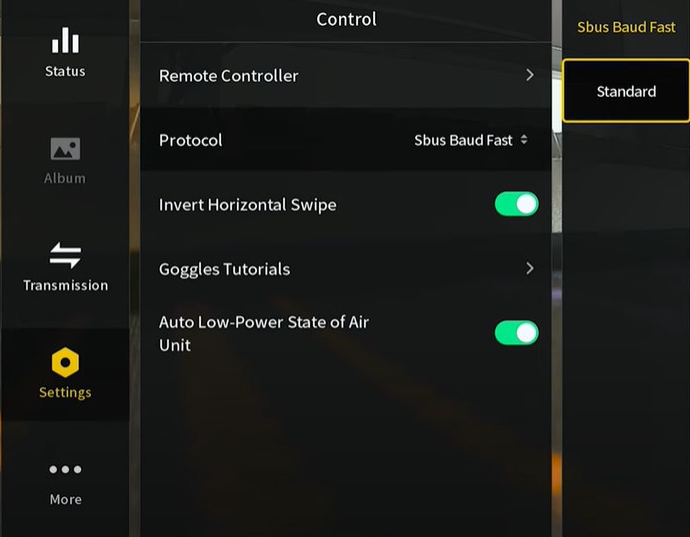

(3) Open the remote controller settings on DJI Goggles and check if the SBUS Baud Fast protocol is enabled.

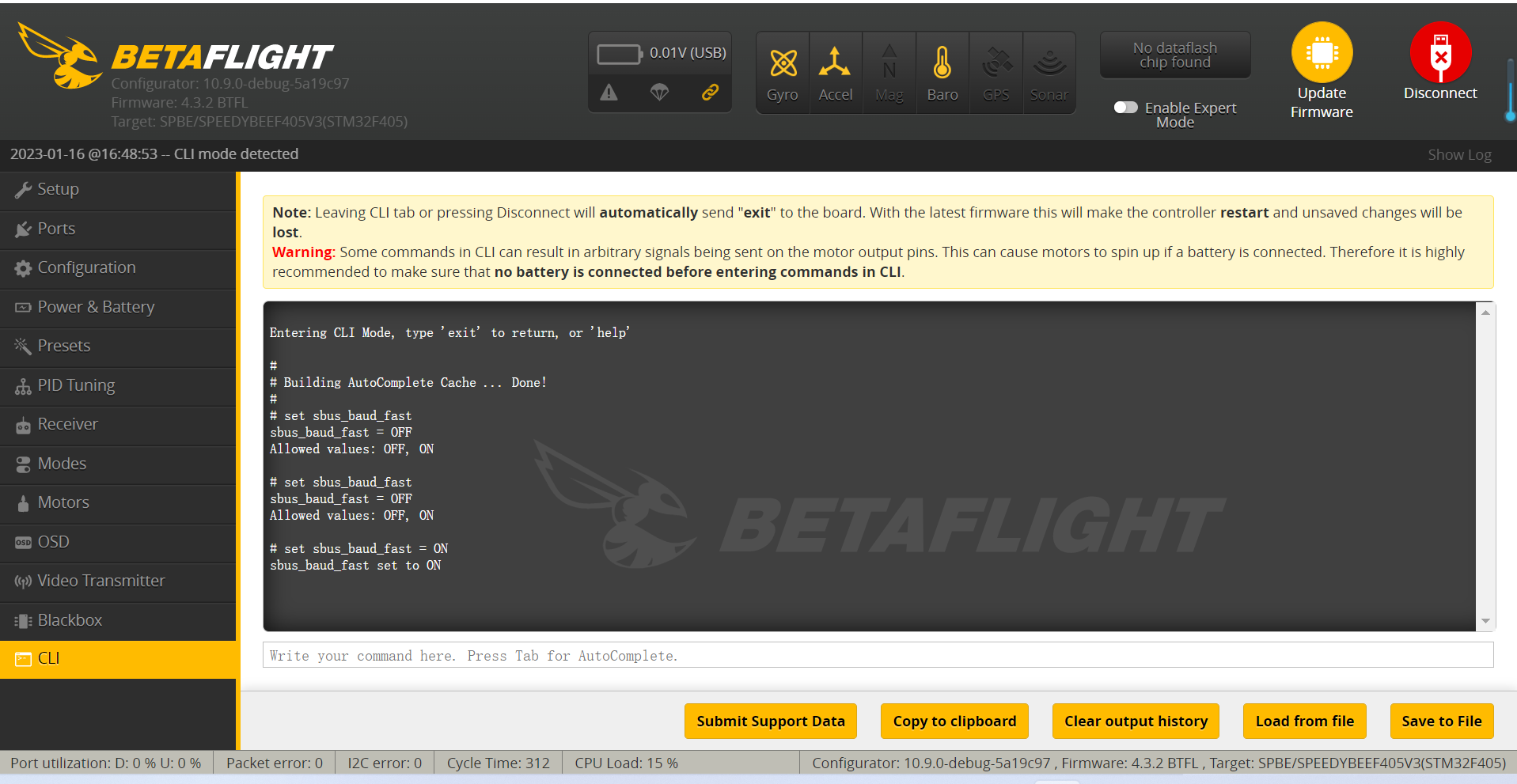

（4） Type the following command in the CLI of Betaflight:

set sbus_baud_fast = ON
save
