How does F405MINI FC use servos in INAV？

1. Wiring.

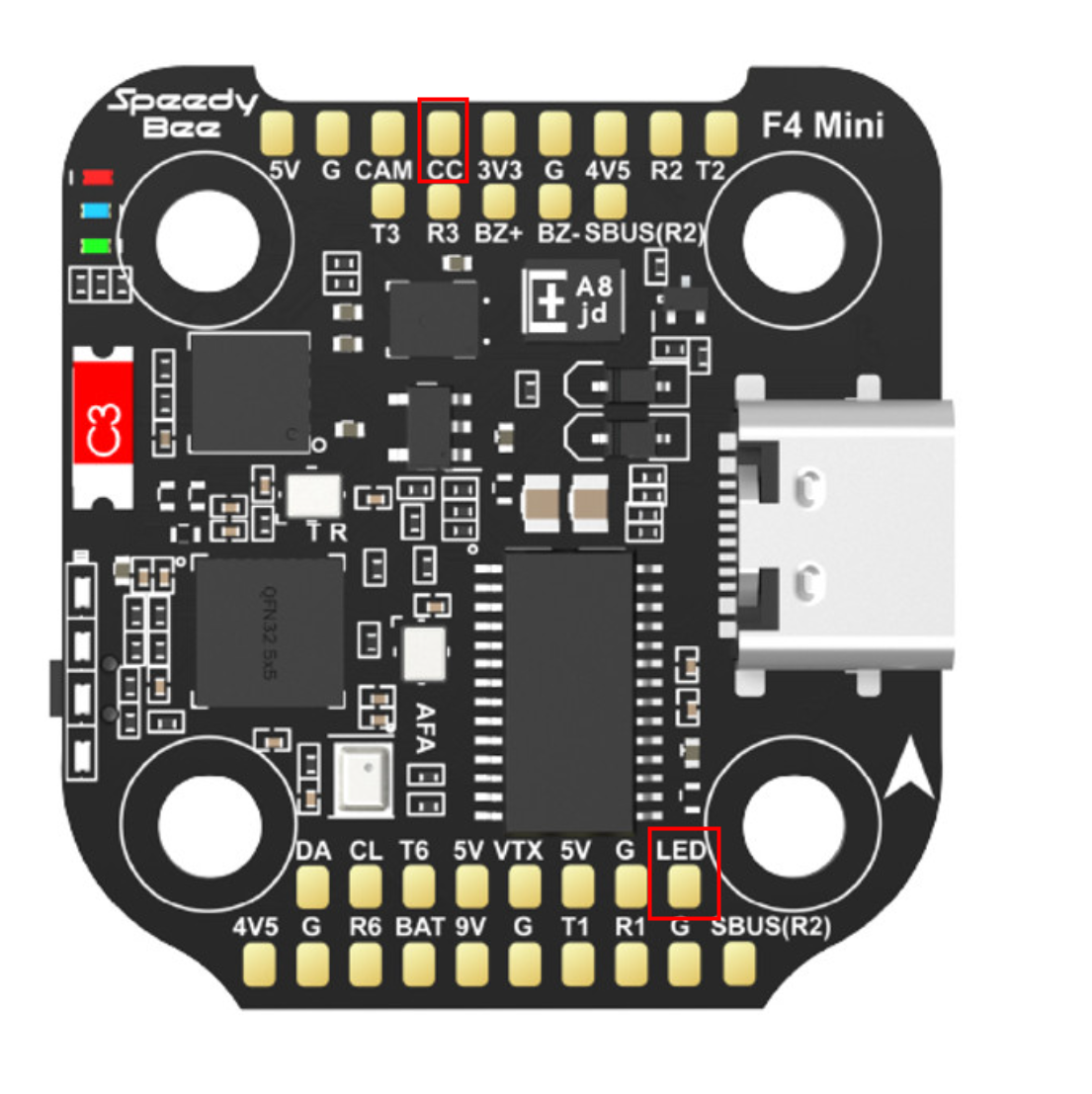

Please connect the servo to the CC pad and LED pad to use.

Please note that the 5V BEC on F405MINI supports a maximum output of 5V 2A. Ensure that the servo power consumption does not exceed the flight controller BEC output.

2. Settings.

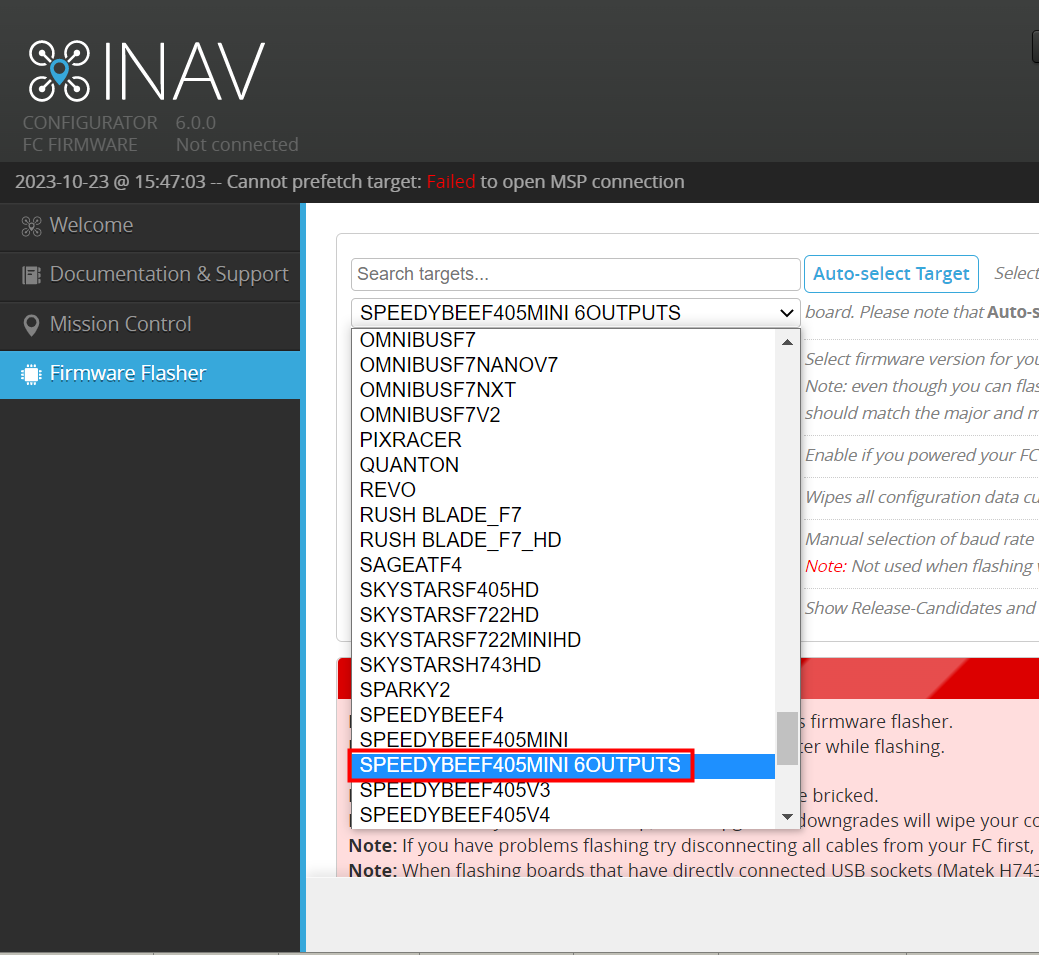

（1）It is necessary to flash the SPEEDYBEEF405MINI 6OUTPUTS firmware dedicated to the servo in the attachment (the default firmware cannot use the servo).

（2）Open inav's Mixer page.

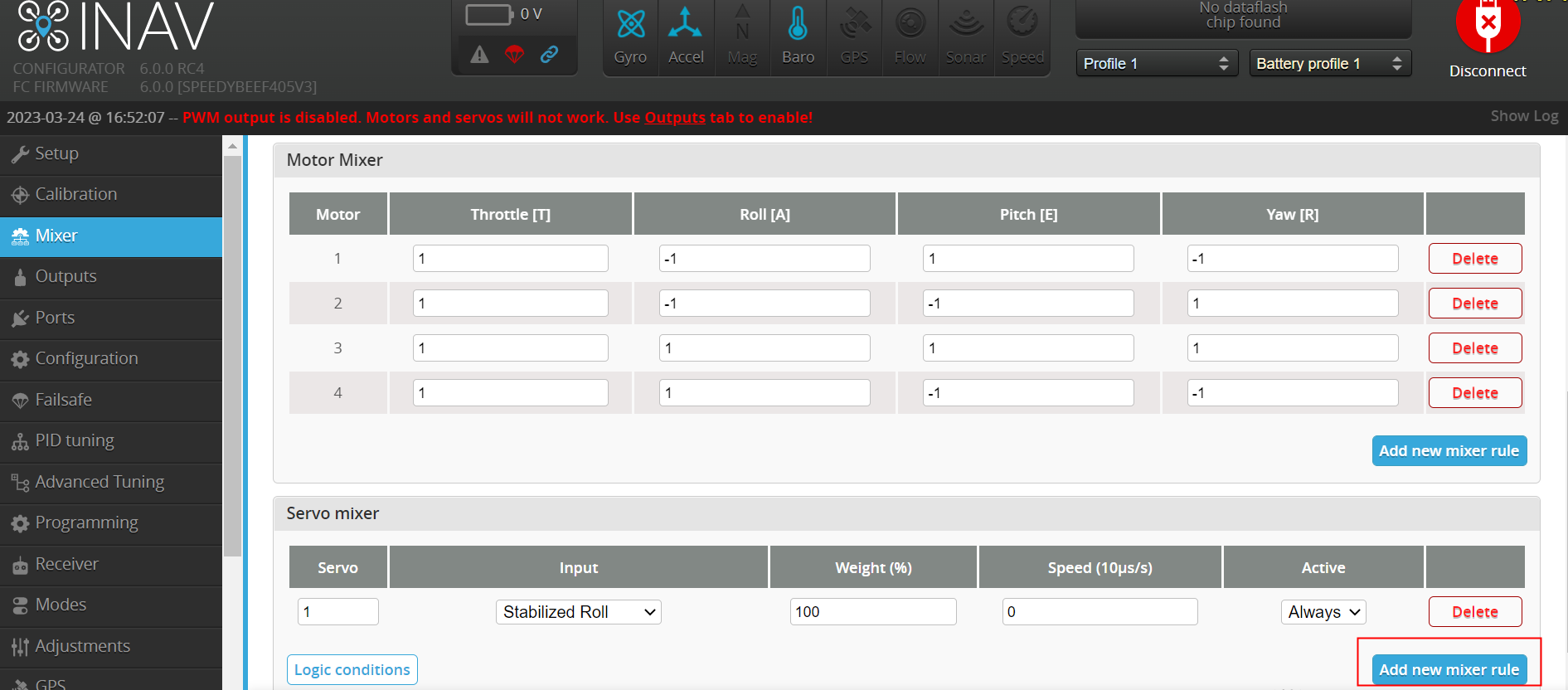

1）Select Add new mixer rule (choose the number to add as needed, up to 4 can be added).

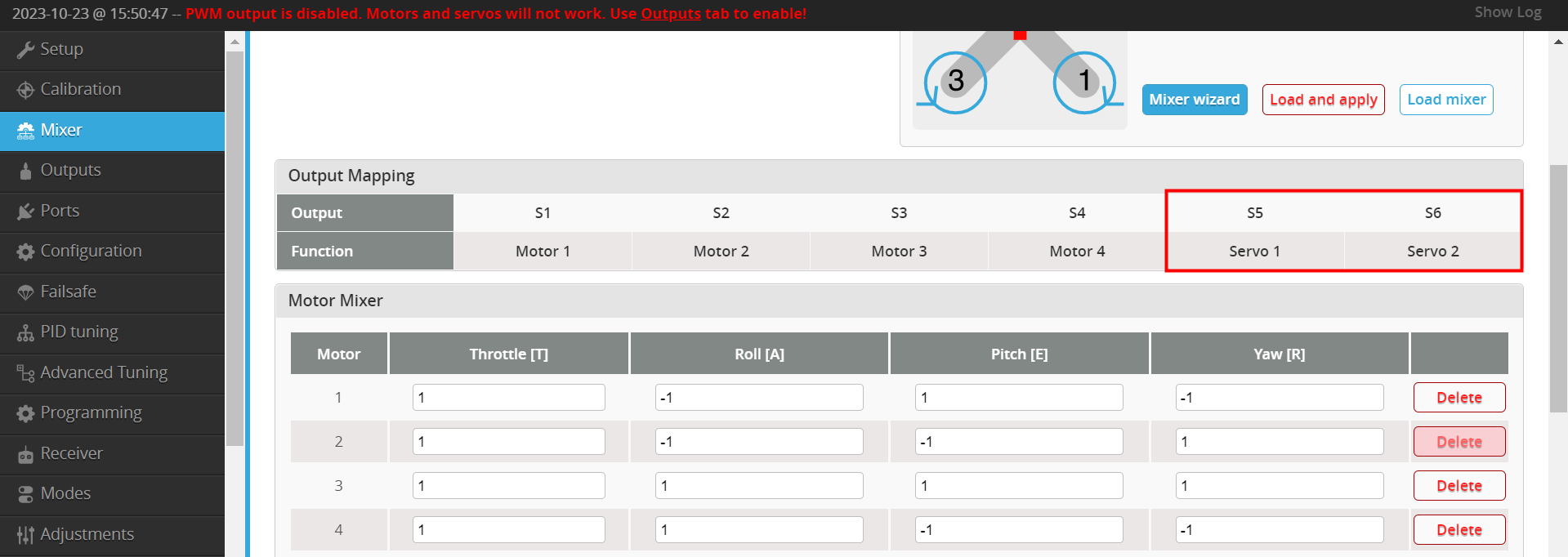

2）If you see Servo 1 in Output Mapping, it means the servo has been added successfully.

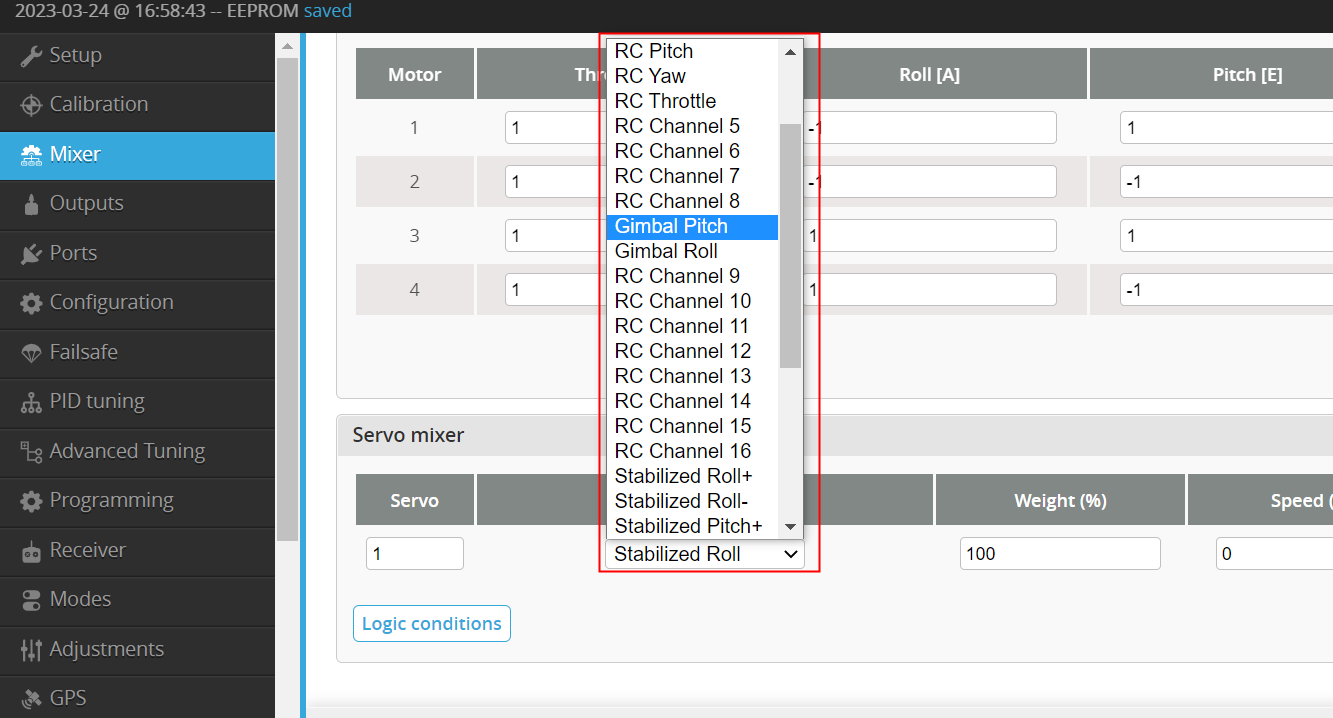

3）Set the channel to control the servo.

（3）Open the Outputs page to check if the servos are available.

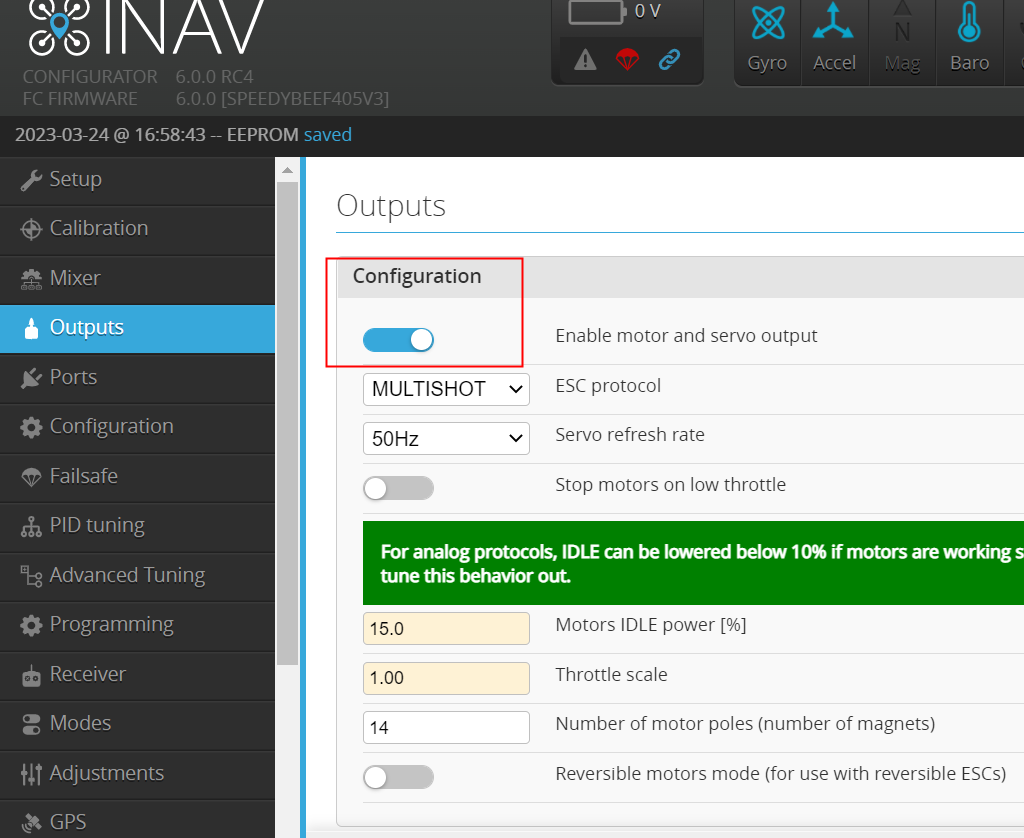

1）Enable motor and servo output.

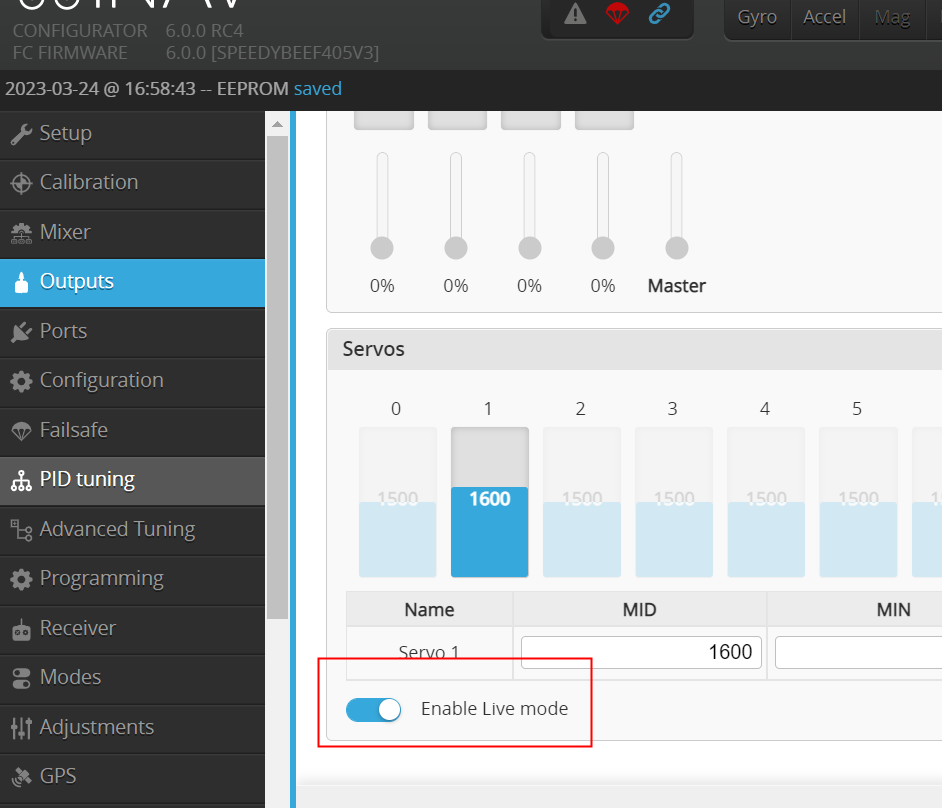

2）Enable Live mode.

After completing the above settings, you can control the rotation of the servo.
