How to change the color of LED strips?（INAV）

1. Power on the flight controller and observe the LED light turning on.

When the LED light is orange, it indicates that the FC has entered Bluetooth control mode.

To switch between different preset LED colors, simply press the BOOT key for 1 second.

2. In INAV mode, you have the option to change the color of the LED strip.

To enter INAV mode, press and hold the BOOT button for 3 seconds. The orange light will turn off, indicating that the FC is now in INAV mode.

To set the LED color using the INAV configurator, follow these steps:

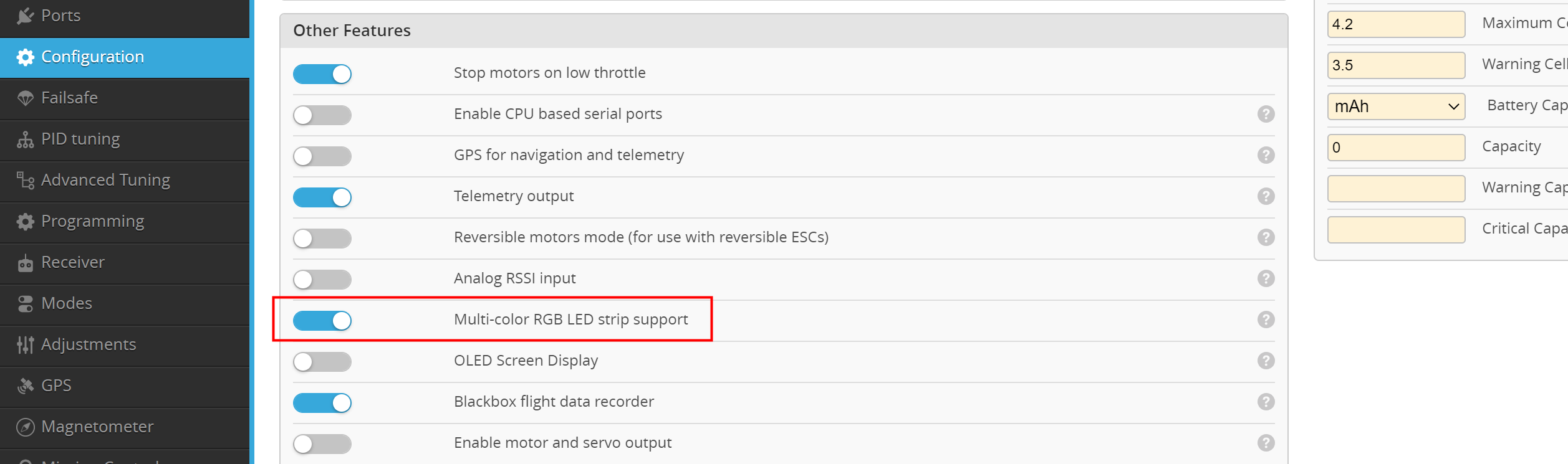

A. Enable the LED strip button in the configuration tab, as shown in the figure below:

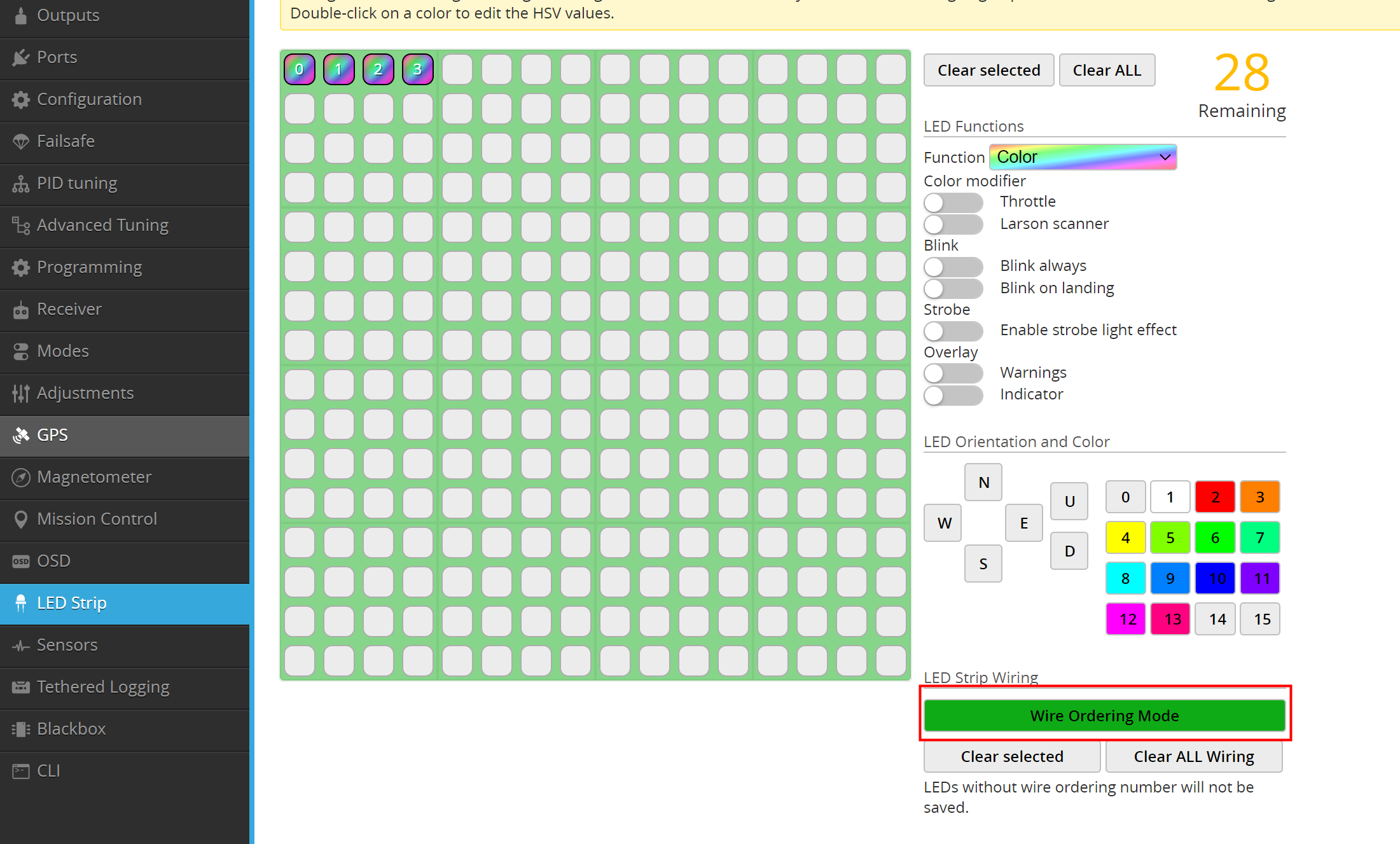

B. Click the LED strip button to access the LED strip settings. Then, click the Wire ordering mode to enter the editing mode.

As shown below:

C. Select the additional 4 LED lights and adjust their color. Finally, click save to apply the changes.

D. Configure the LED OFF channel on the mode page. (This allows you to control the LED's on/off state using the RC transmitter joystick.)

Note：

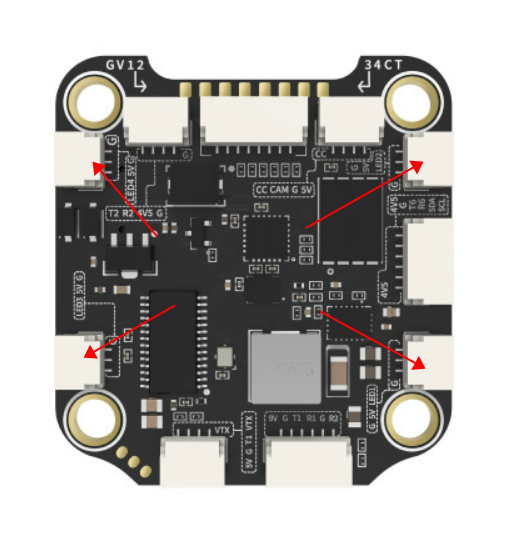

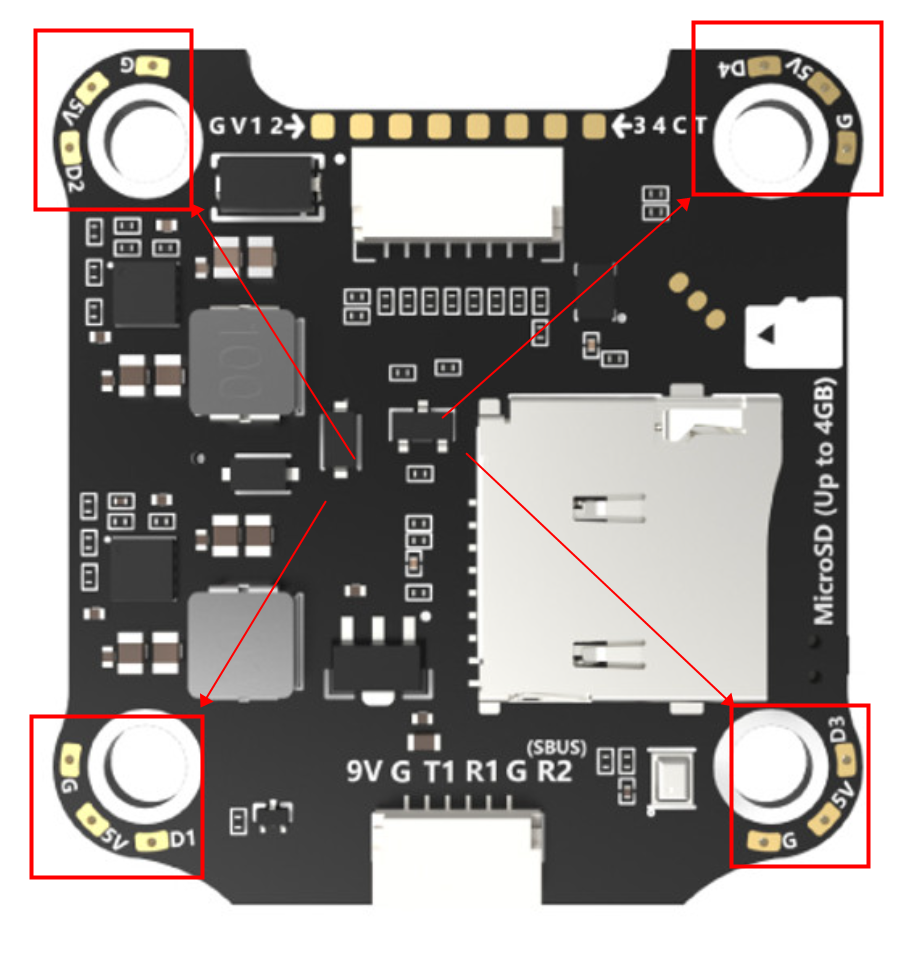

1. The LED pad and cable are connected in parallel for all LED light strips, which limits the control to 4 light beads. Therefore, all 4 LED strips will have the same color and pattern.

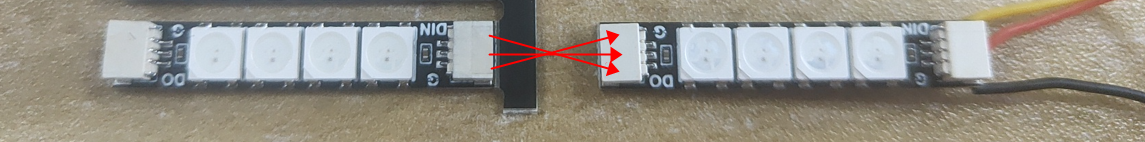

If you want to control each light strip independently, you will need to connect all the light strips in series (as shown in the figure below).

2. The LED light strip has positive and negative poles. Connect the end marked "din" to the FC, and the end marked "do" should be connected to the "din" of other light strips (if multiple strips need to be connected).
