How to use the receiver Telemetry function?

1. Wiring.

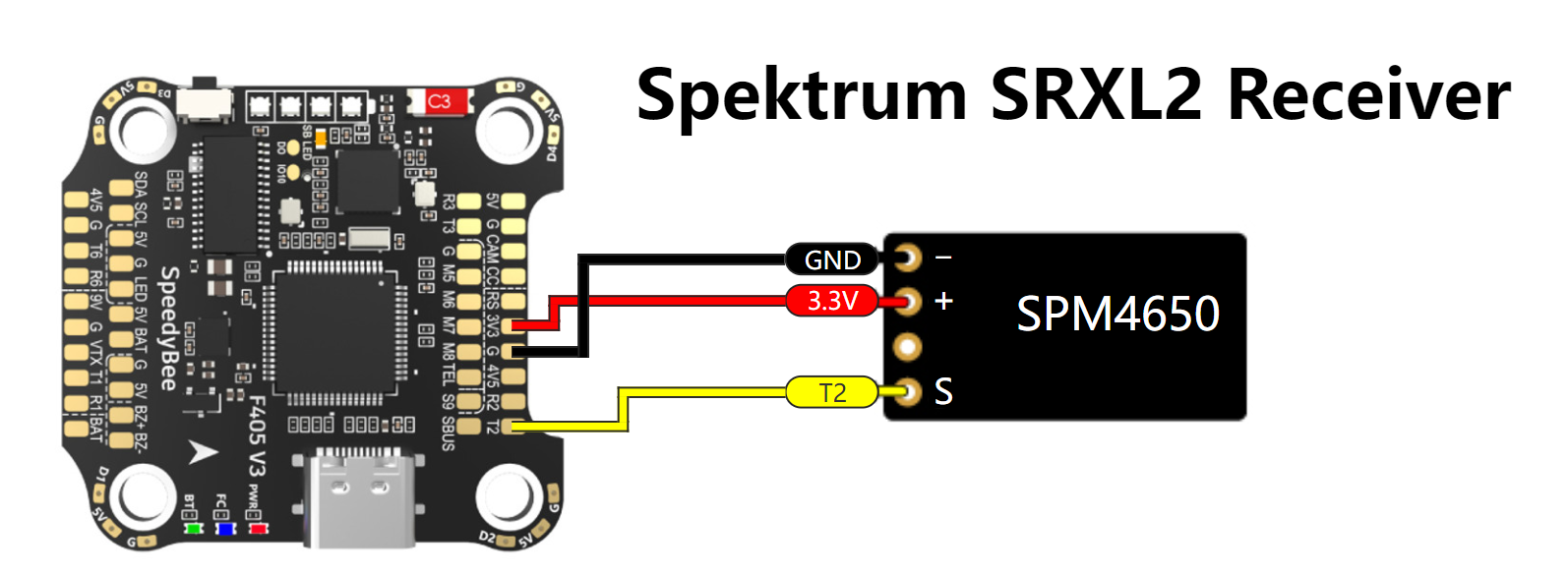

1) If the receiver uses the SRXL2 protocol.

Just connect the signal cable to any Tx pad to use.

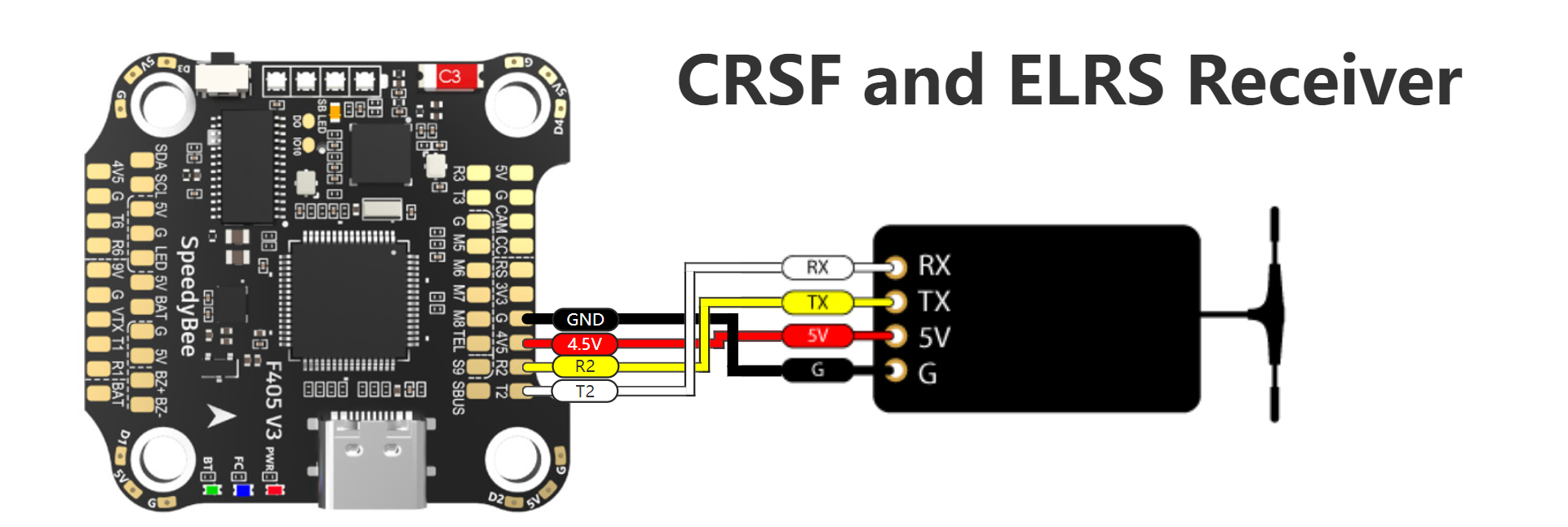

2) If you are using crsf protocol (receiver of TBS or ELRS).

Both Tx and Rx of the receiver need to be connected to FC (need to be connected to the same uart port).

3. Settings.

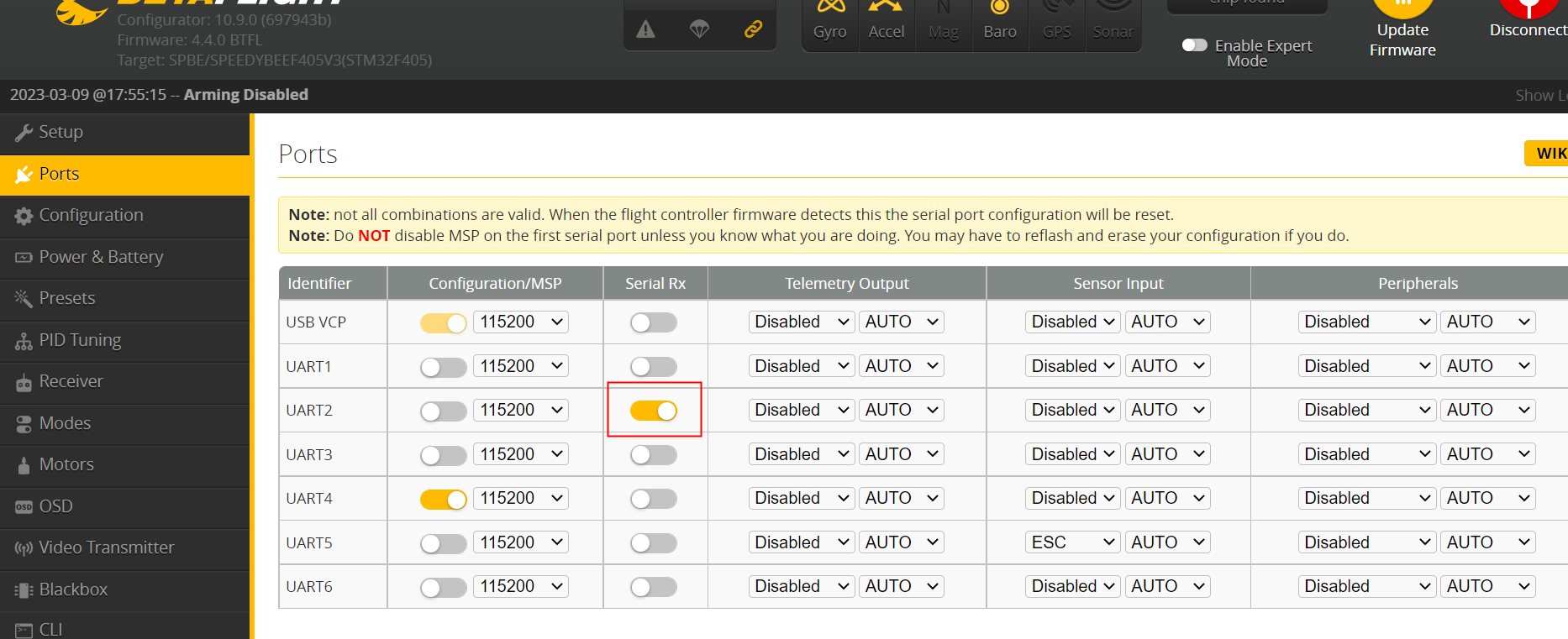

1）Open the telemetry port.

If you are using a bidirectional protocol (such as SRXL2 and IBUS) or a crsf protocol, you only need to enable the Serial Rx option.

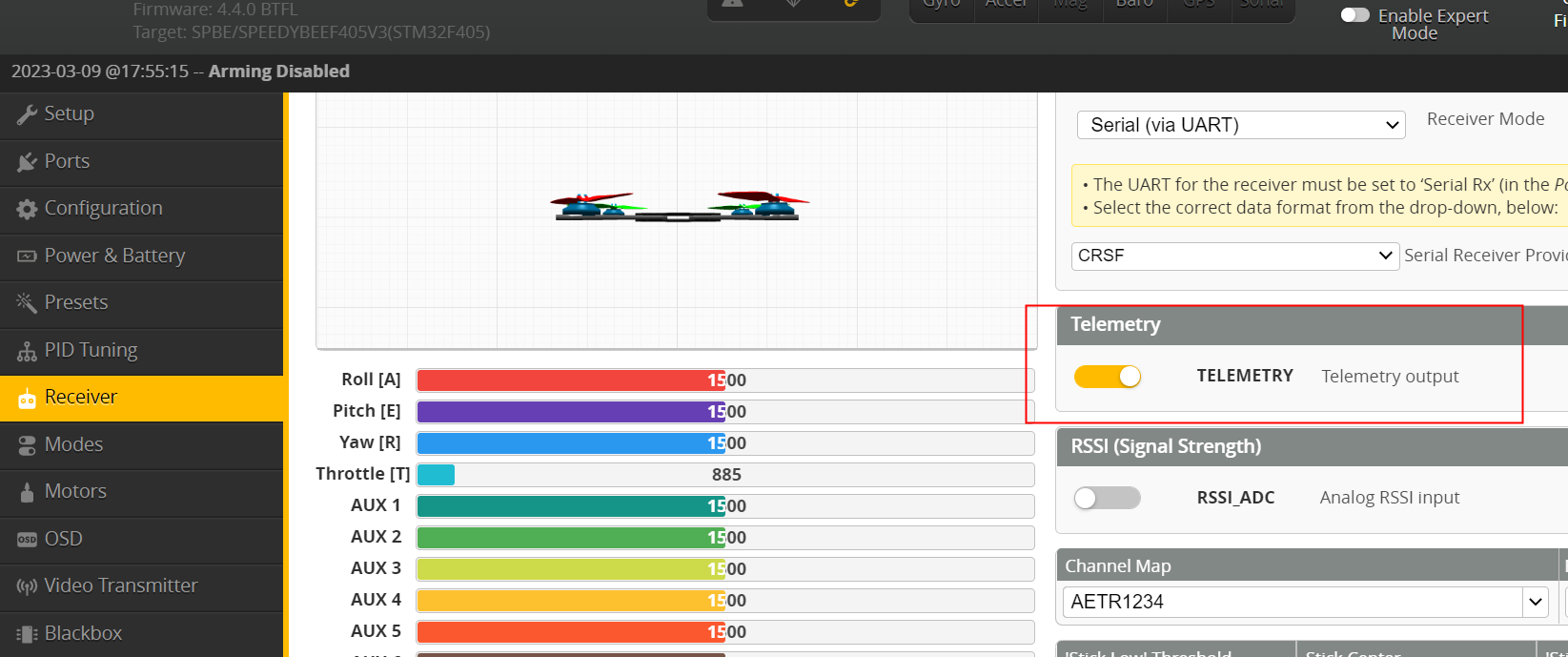

2) Enable Telemetry in receiver settings.

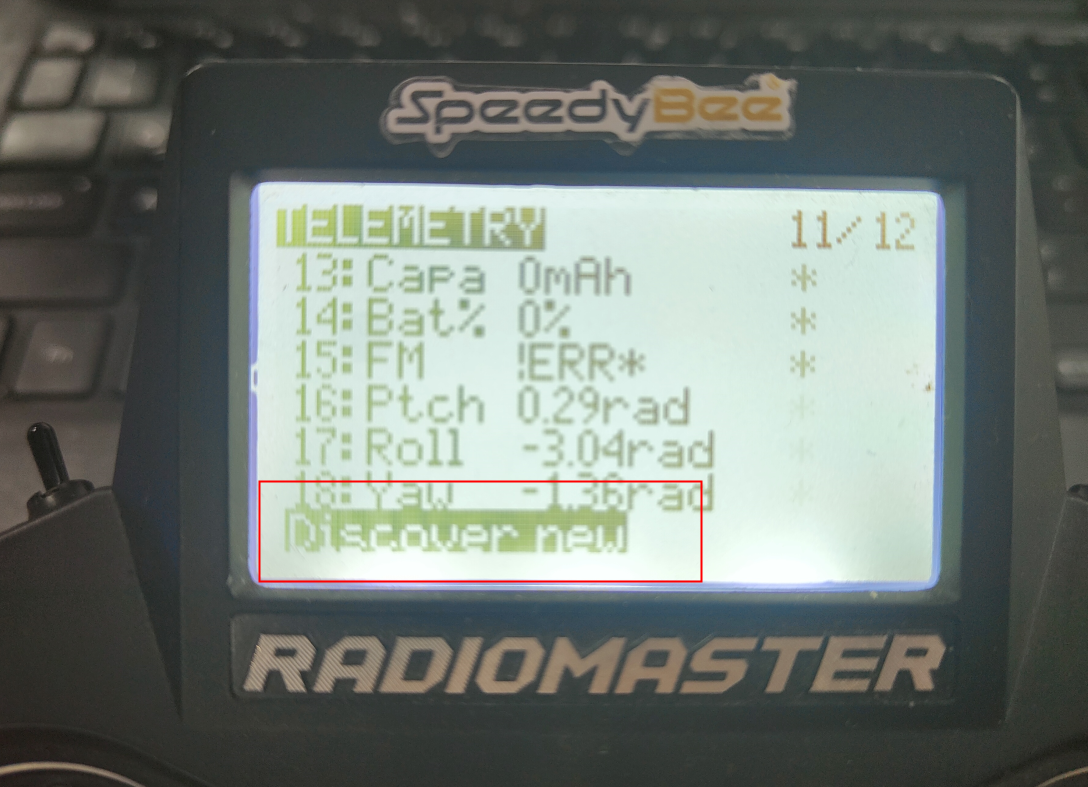

After it is turned on, you can see the Telemetry information on the Telemetry page of the remote control (you need to click Discover new to refresh the data).
