INAV configurator download link：https://github.com/iNavFlight/inav-configurator/releases
Note: Please select the configurator version that matches the firmware
The INAV5 version of the firmware can only be connected to the INAV5 version of the configurator.
The INAV6 version of the firmware can only connect to the INAV6 version of the configurator.

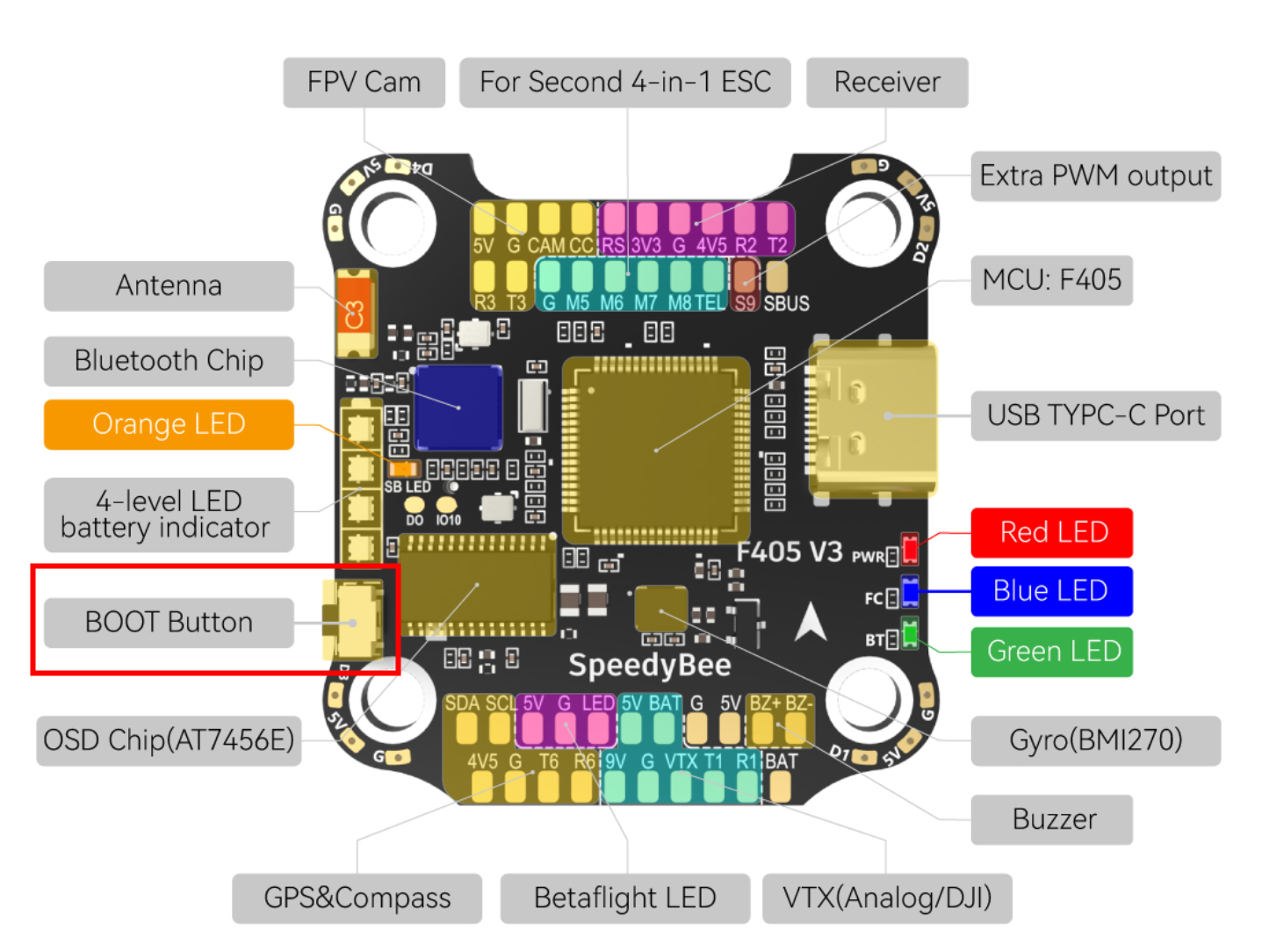

Step one: hold the boot button and connect via USB ( without any peripherals )

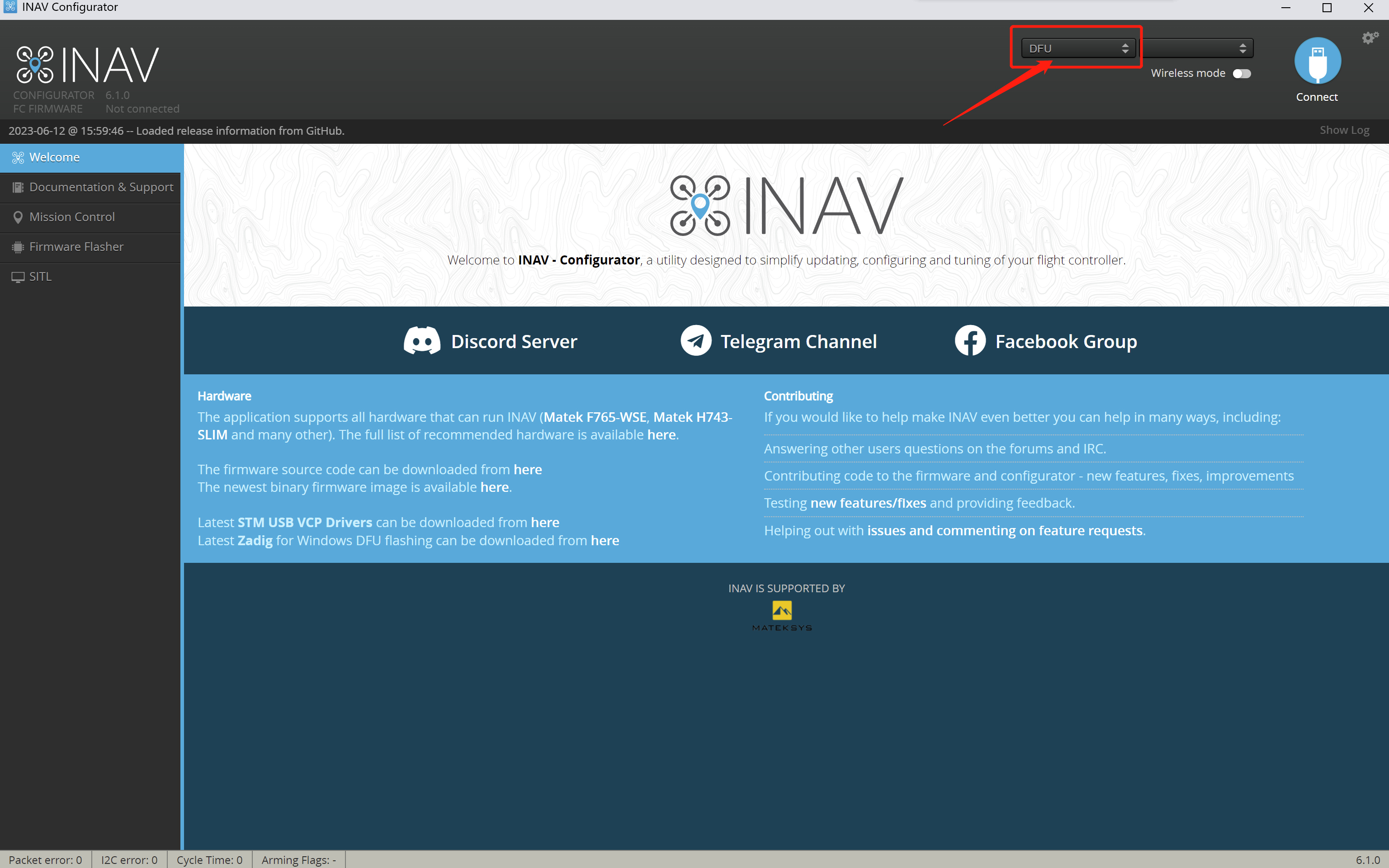

FC enters DFU mode on the INAV Configurator.

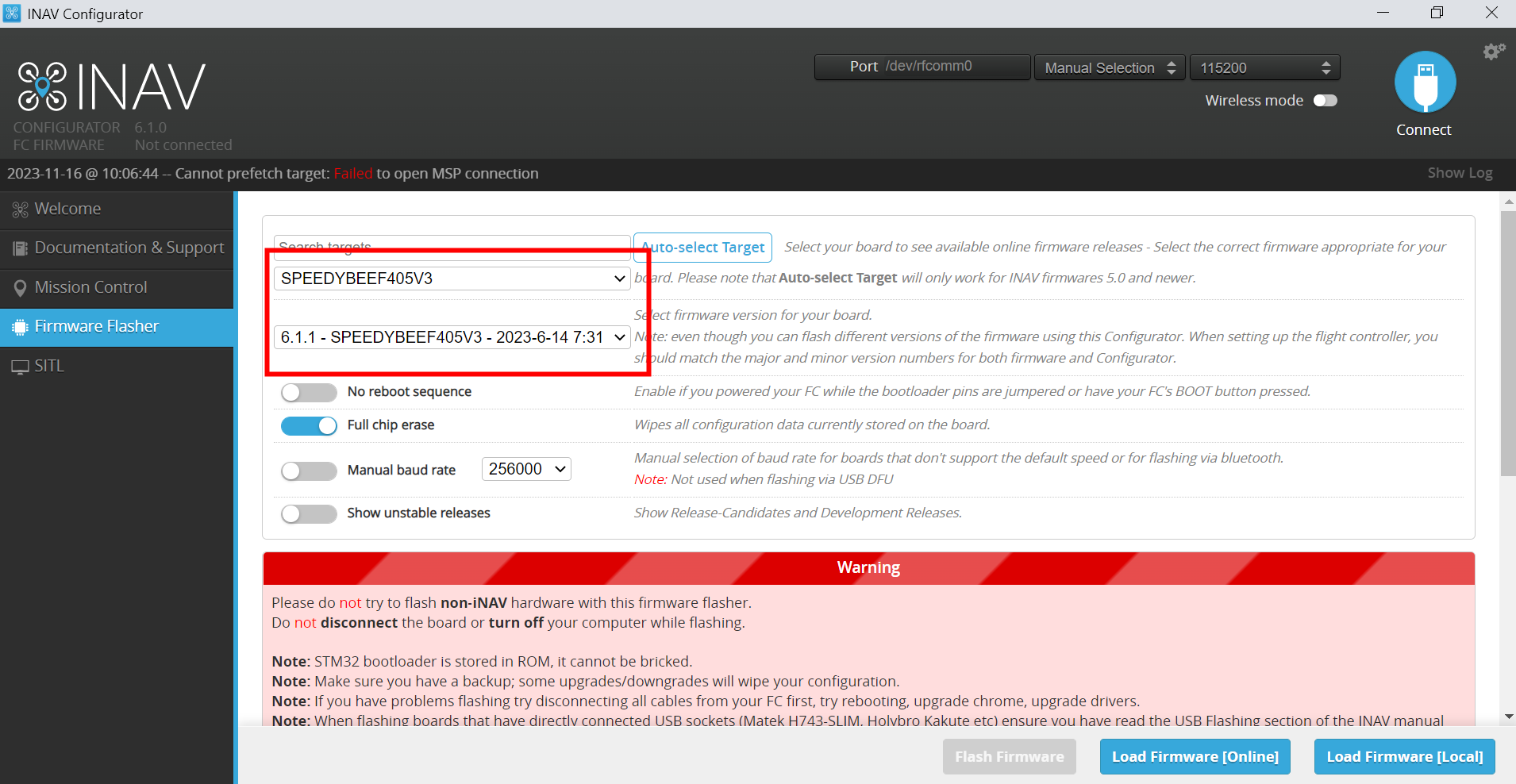

Step two: Navigate to Firmware Flasher Page, Select the name of the flight controller and the version of the firmware

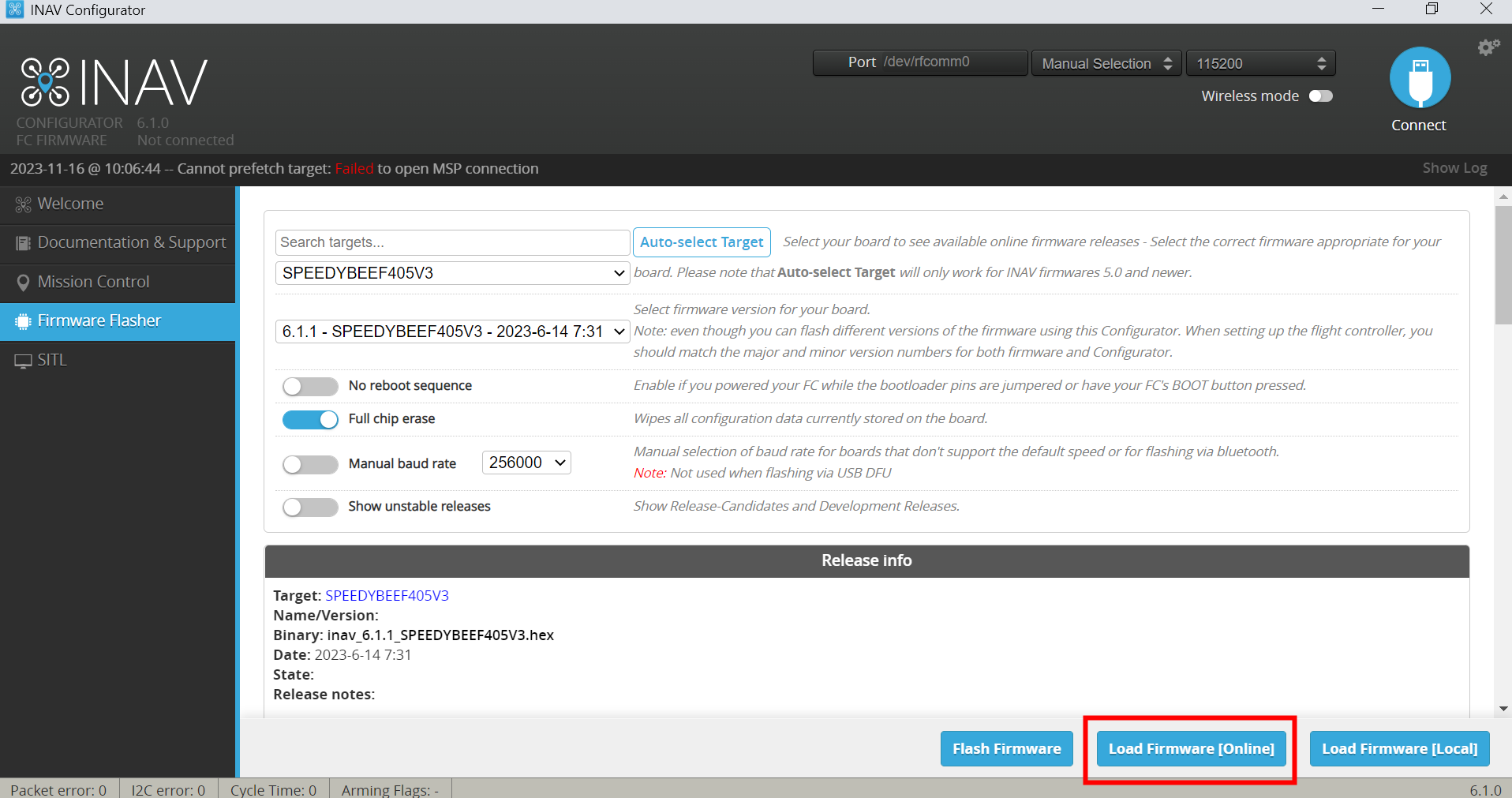

Click“Load Firmware (online)” and wait for the firmware download to complete
Click the Flash Firmware( do not exit during flashing)
Programming: SUCCESSFUL on the Configurator indicates the firmware flashing is completed.
Please restart the flight controller after the firmware flashing.
Comments
1 comment
I flashed F405V3 to iNav, flashing procedure was successful, but after rebooting FC doesn't started, blue LED light solid. In Windows FC recognize as unknown device. Windows 11, iNav 6.1 and 7.1.2
The same procedure with Betaflight works well, FC flashed and works correctly.
What's wrong?
