How to change the motor direction using BLHeli firmware?

Note: BLHeli_S ESCs require the use of BLHeli_Suite Configurator for configuration.

BLHeli_32 ESCs require the use of BLHeli32 Configurator for configuration.

1. Connect to the BLHeli Configurator.

(1) For 32-bit ESCs, refer to the following article for connection instructions:

How to connect 32bit ESC to BLHeli_32.

(2) For 8-bit ESCs, refer to the following article for connection instructions:

How to connect 8-bit ESC to BLHeli_Suite.

2. Adjust motor direction.

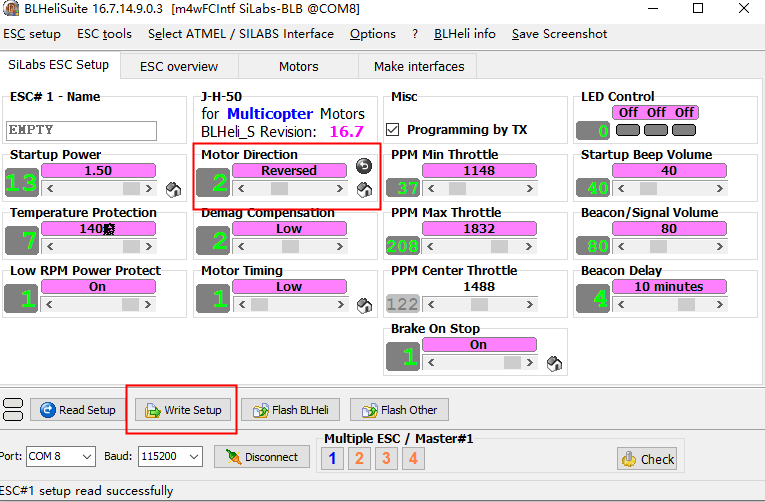

Change the "Motor Direction" to "Reversed" (if initially set to Reversed, change it to Normal), for the ESC you want to change the motor direction and click "Write Setup".

Note:

（1）Motor direction can only be changed one ESC at a time, not all four simultaneously.

Writing the setup will modify the settings of the ESC with the lowest open number (you can close the corresponding ESC by clicking the number below).

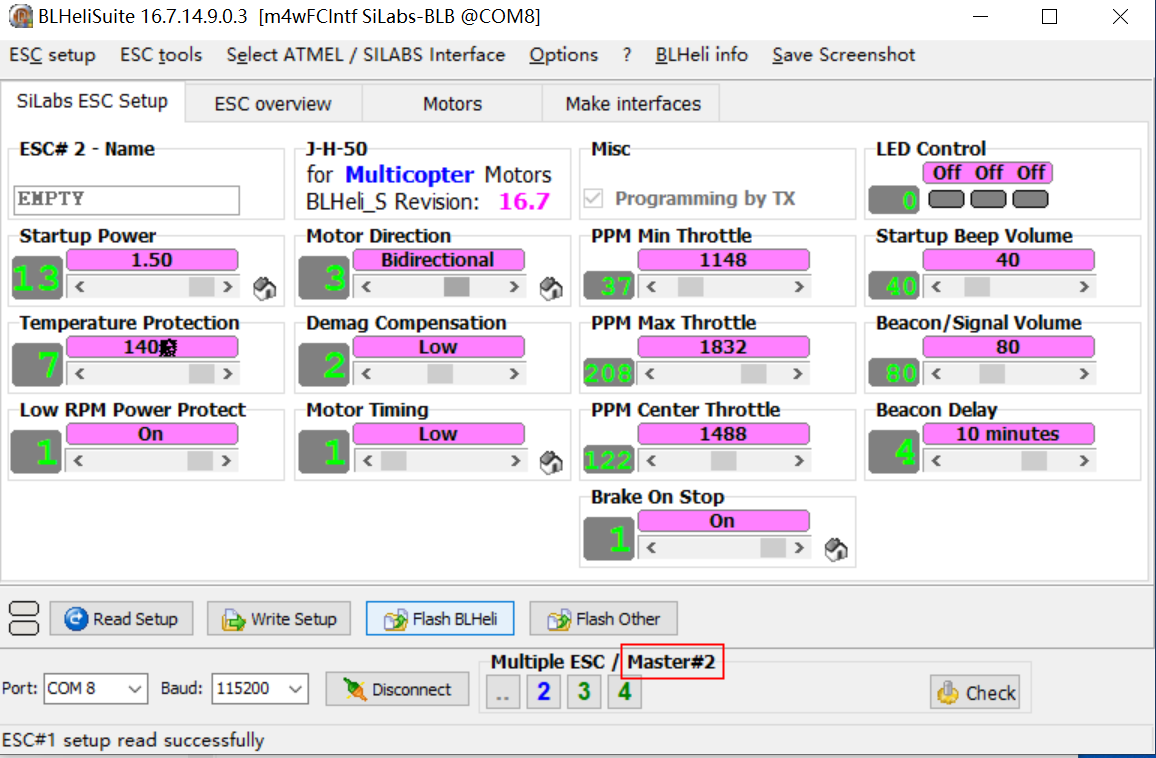

The ESC number being modified can be identified by the marking position in the figure below (Master#2).

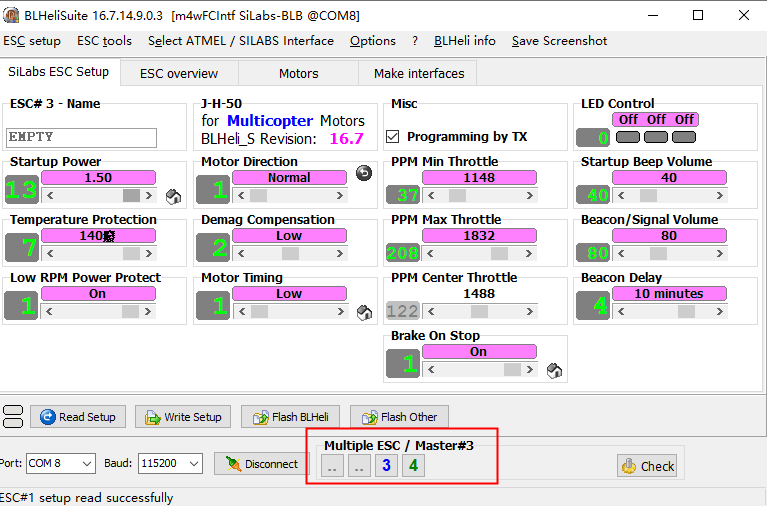

For example, if you want to change the motor direction of ESC #3, please close ESC #1 and #2 (since #4 comes after #3, it will modify the settings of #3).
