Please follow the steps below:

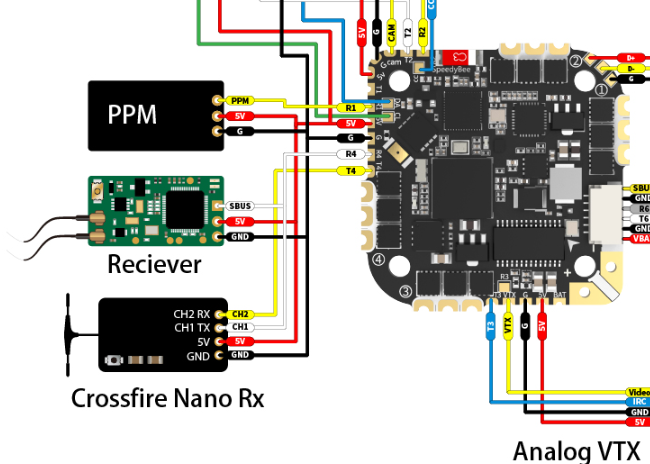

Step 1: Check if the wiring between the receiver and the flight controller is correct.

We recommend referring to the flight controller manual for the receiver's wiring diagram.

Notice: The receiver signal wire should be correctly connected to the flight controller. For SBUS receivers, connect the SBUS signal of the receiver to the vacant RX pad on the flight controller (not the TX pad). For TBS crossfire/ELRS receivers, connect the RX of the receiver to the vacant UART's TX pad and connect the TX on the receiver to the UART's RX pad.

Step 2: Ensure that the receiver has successfully bound to your radio transmitter.

We suggest referring to the receiver's manual and the transmitter's manual to verify if they are bound.

For example, the following video shows the binding process for the Radiomaster Zorro transmitter:

https://youtu.be/hwVvlh7YQrE

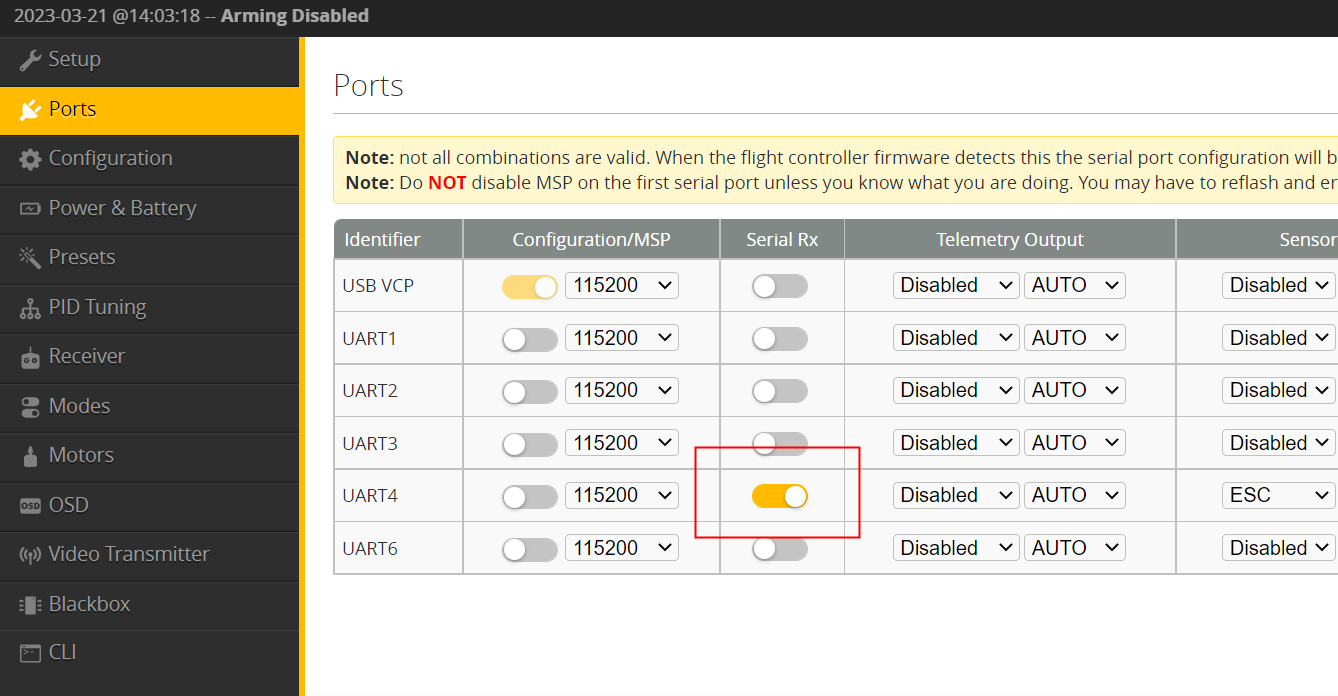

Step 3: Check if the receiver has enabled "Serial Rx."

For instance, if your receiver is connected to UART 4, you should enable "Serial Rx" on UART 4.

Notice: Since one UART can only connect to one external device, only one item can be enabled for the entire UART line. For example, if UART 4 is set to serial RX, it is impossible to enable configuration/MSP, telemetry output, sensor input, or peripheral devices.

Step 4: Set the correct receiver mode and provider.

According to the receiver's manual, you should do the following:

TBS Crossfire/ELRS - CRSF
ExpressLRS - CRSF
Spektrum DSM2 - SPEKTRUM1024/SRXL2
Spektrum DSMX - SPEKTRUM2048/SRXL2
FrSky RX - SBUS or FrSky FPort
Futaba RX - SBUS
FlySky RX – IBUS Turnigy RX – IBUS

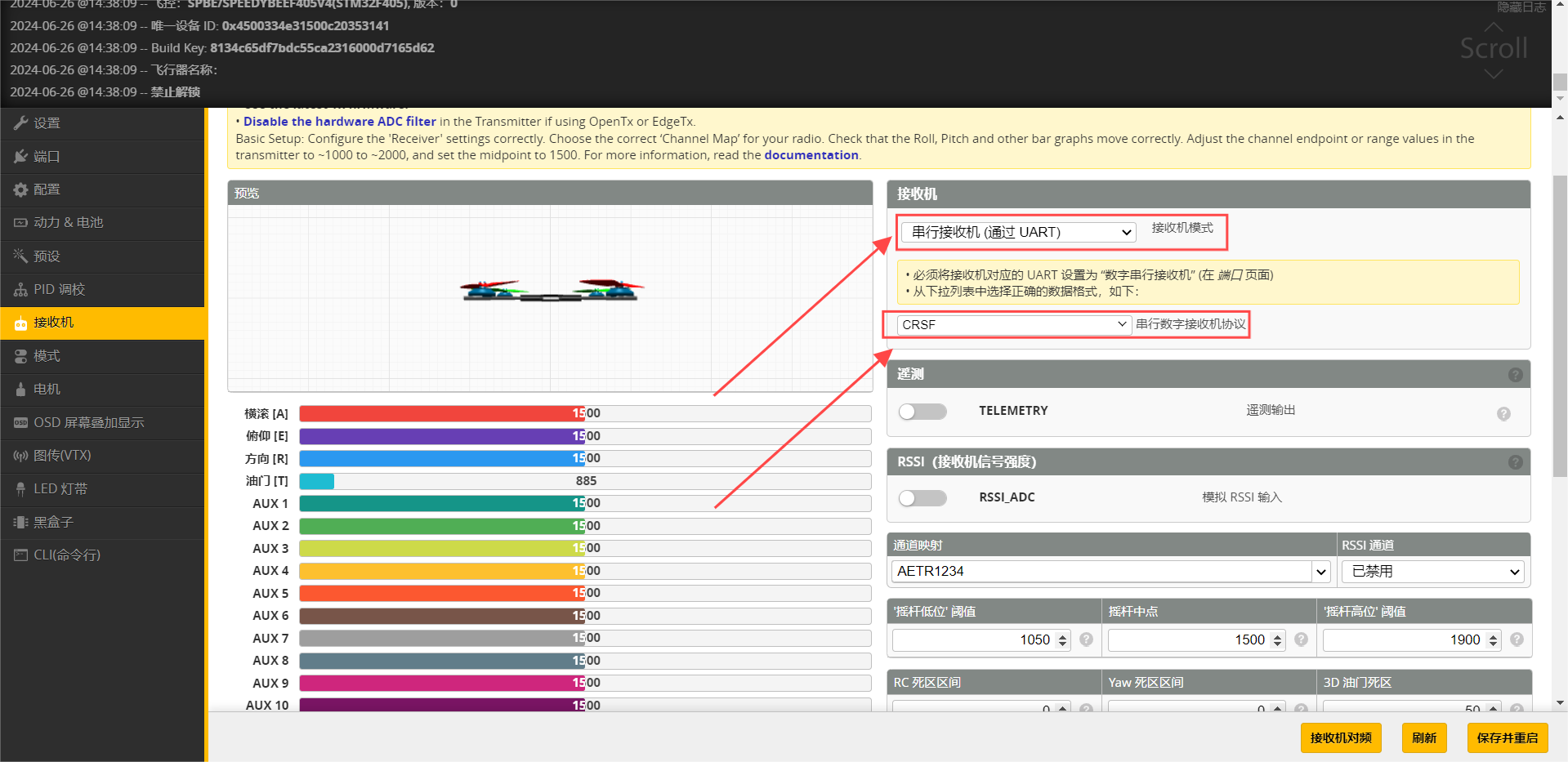

For example, if your receiver is TBS Crossfire or ELRS, select "CSRF."

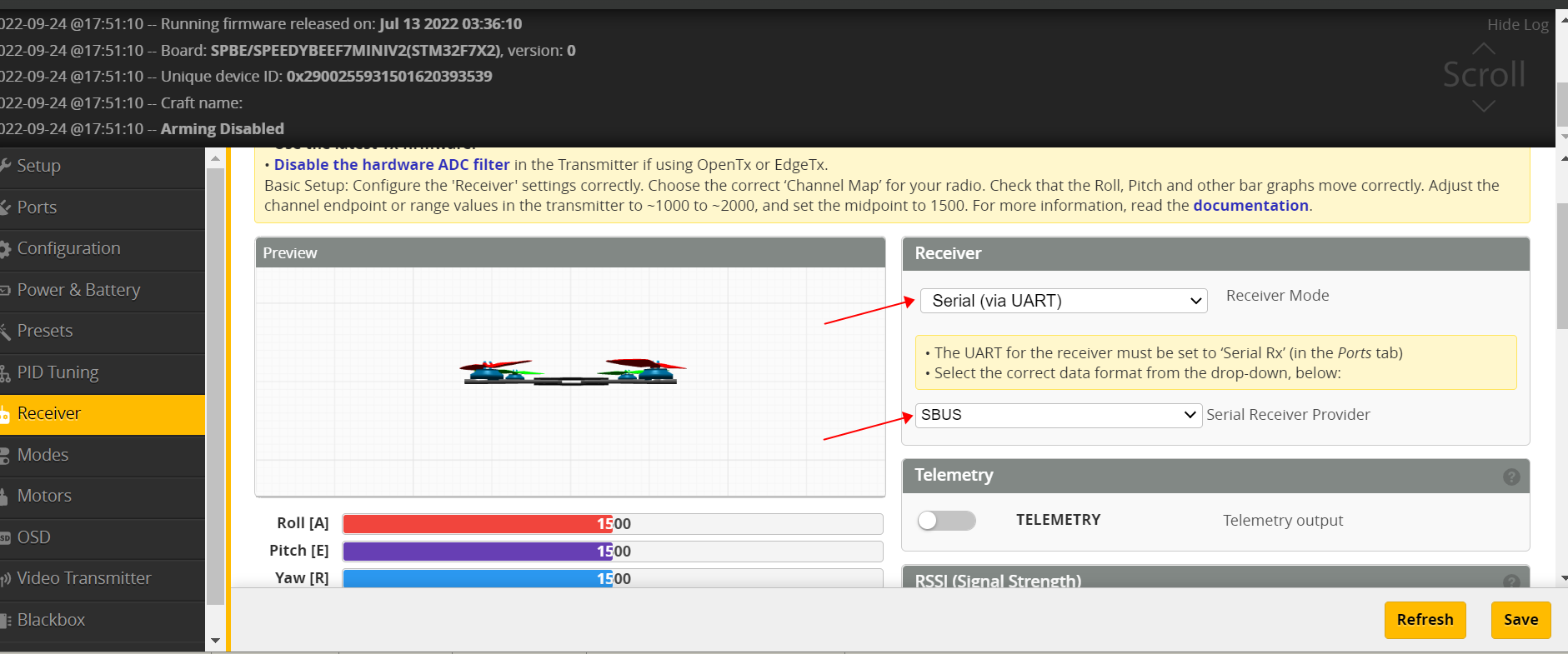

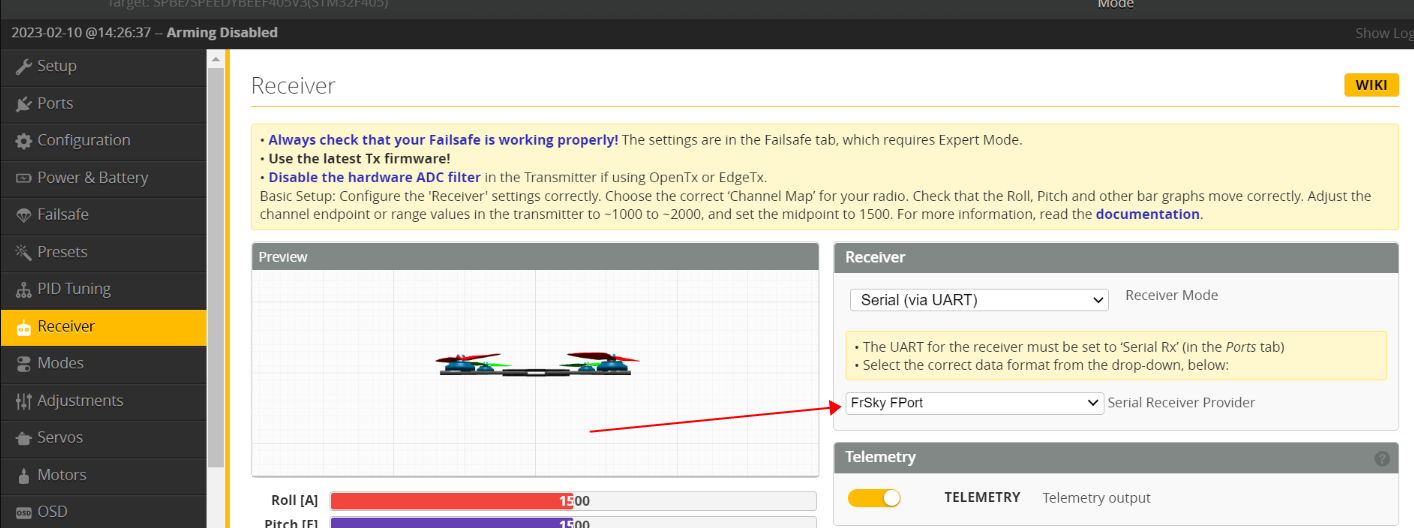

For FrSky receivers, select "Serial(via UART)" and "SBUS" or "FrSky FPort."

For Flysky receivers, select PPM or IBUS.

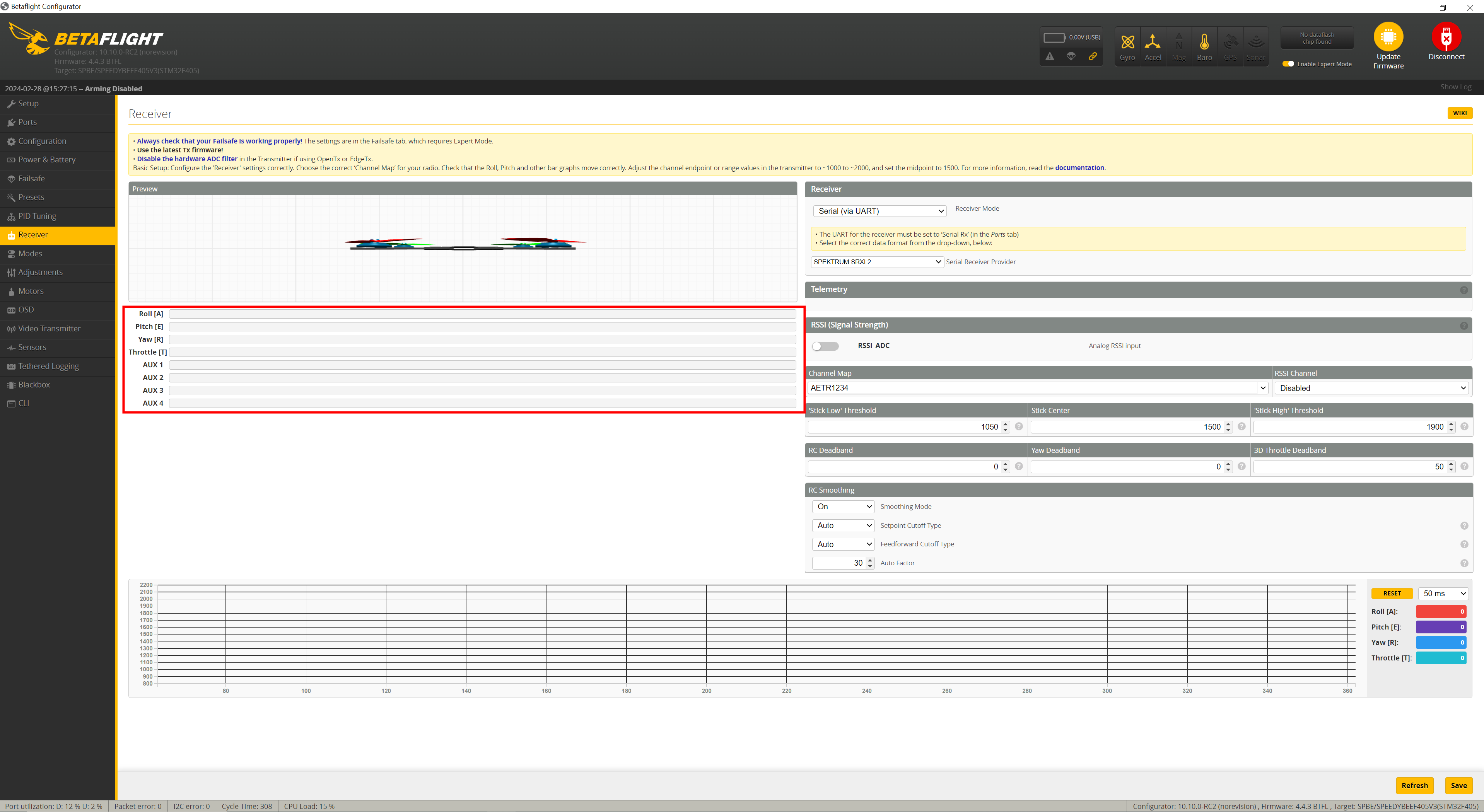

如果设置完接收方协议后，接收方通道全部变成白色（如下图）。

请检查使用的固件版本是否高于 Betaflight 4.4.0。

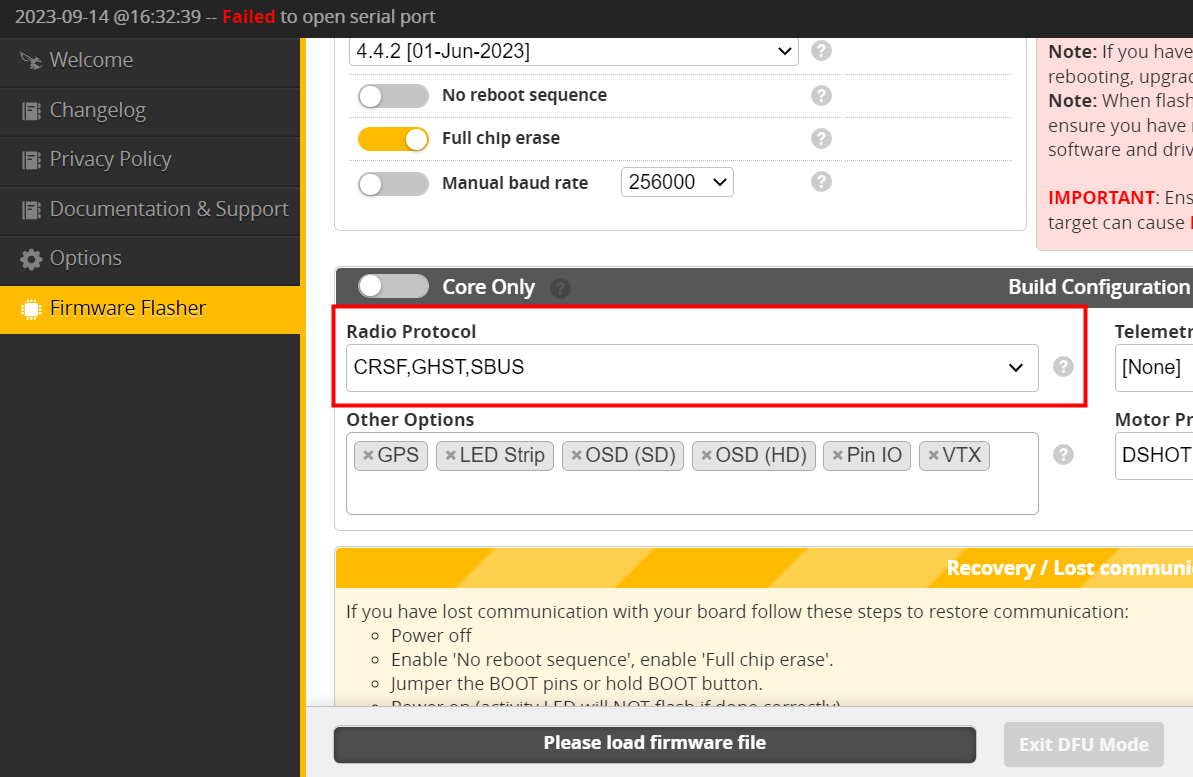

Betaflight 4.4.0版本更新了Cloud-Build功能，刷入固件前需要提前选择接收机协议（默认接收机协议为SBUS、CRSF、GHST）。

具体刷机方法可以参考以下文章：

如何正确刷写 Betaflight 4.4 固件。

Step 5: Check if your transmitter can be detected in the Betaflight configurator.

Connect your flight controller to the Betaflight configurator > Receiver tab and move the joysticks or switch to see if the Betaflight UI can display the input accordingly.

Note: For some receivers, you must keep them at least 0.5 meters away from the transmitter to prevent automatic disconnection.
