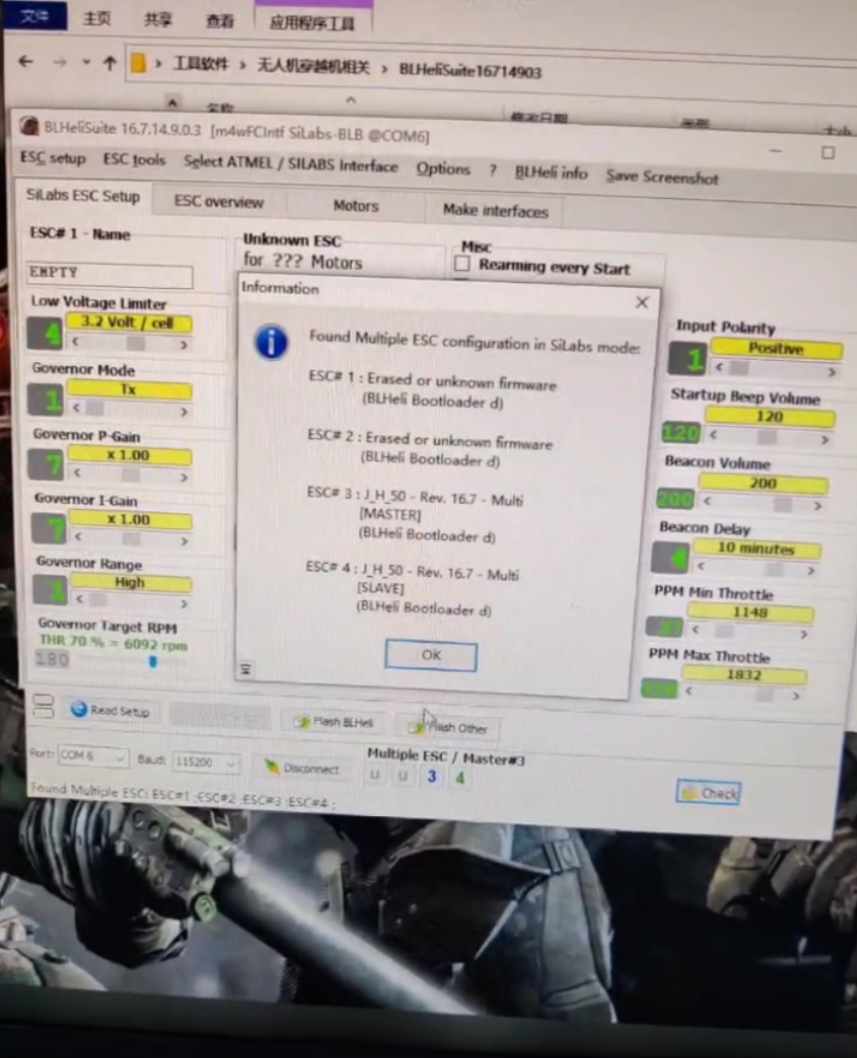

If the following screenshot is displayed after connecting the ESC to BLHeli_suite, and the firmware cannot be reflashed normally, please refer to the steps below to reflash the firmware.

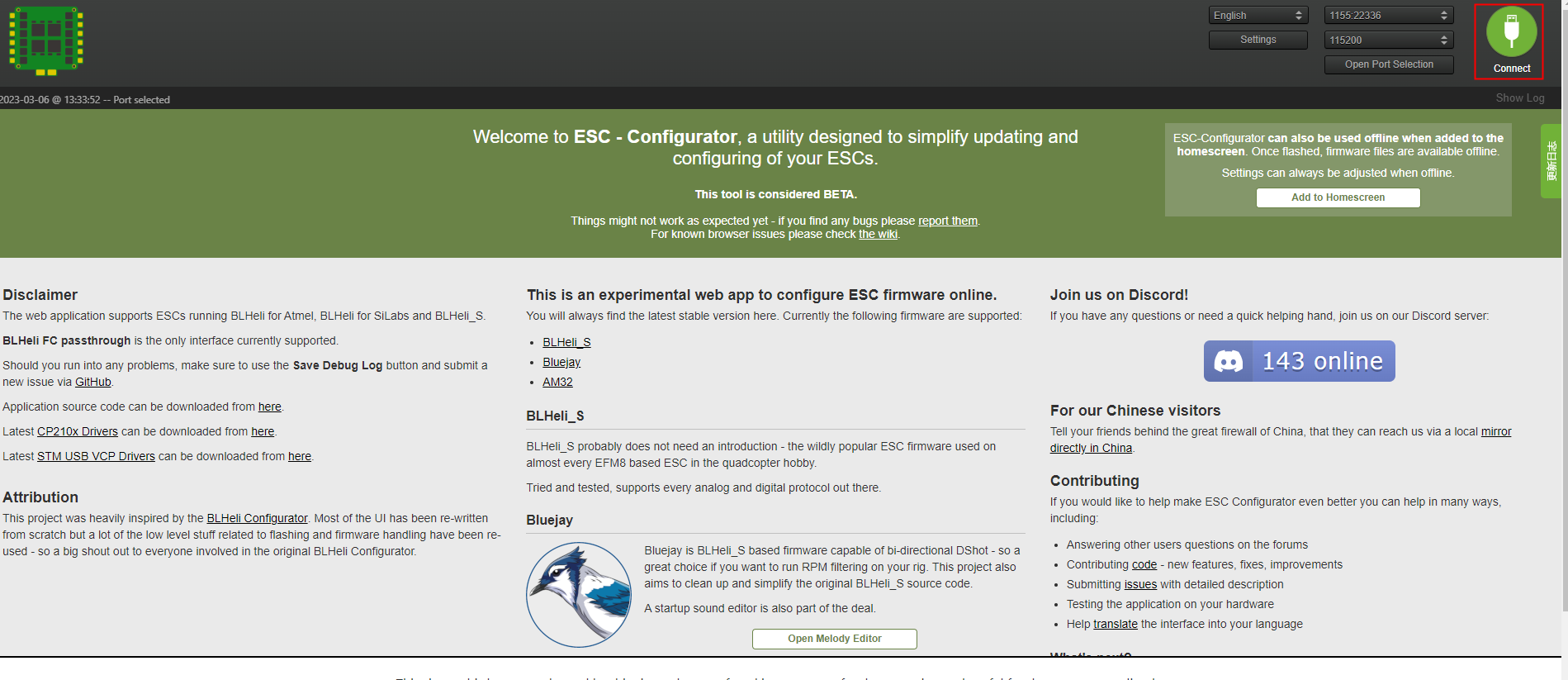

1. Please connect ESC to the ESC configurator.
Note: When connecting the ESC configurator, you need to close the Betaflight configurator and use a battery to power the ESC.
ESC configurator link：https://esc-configurator.com/

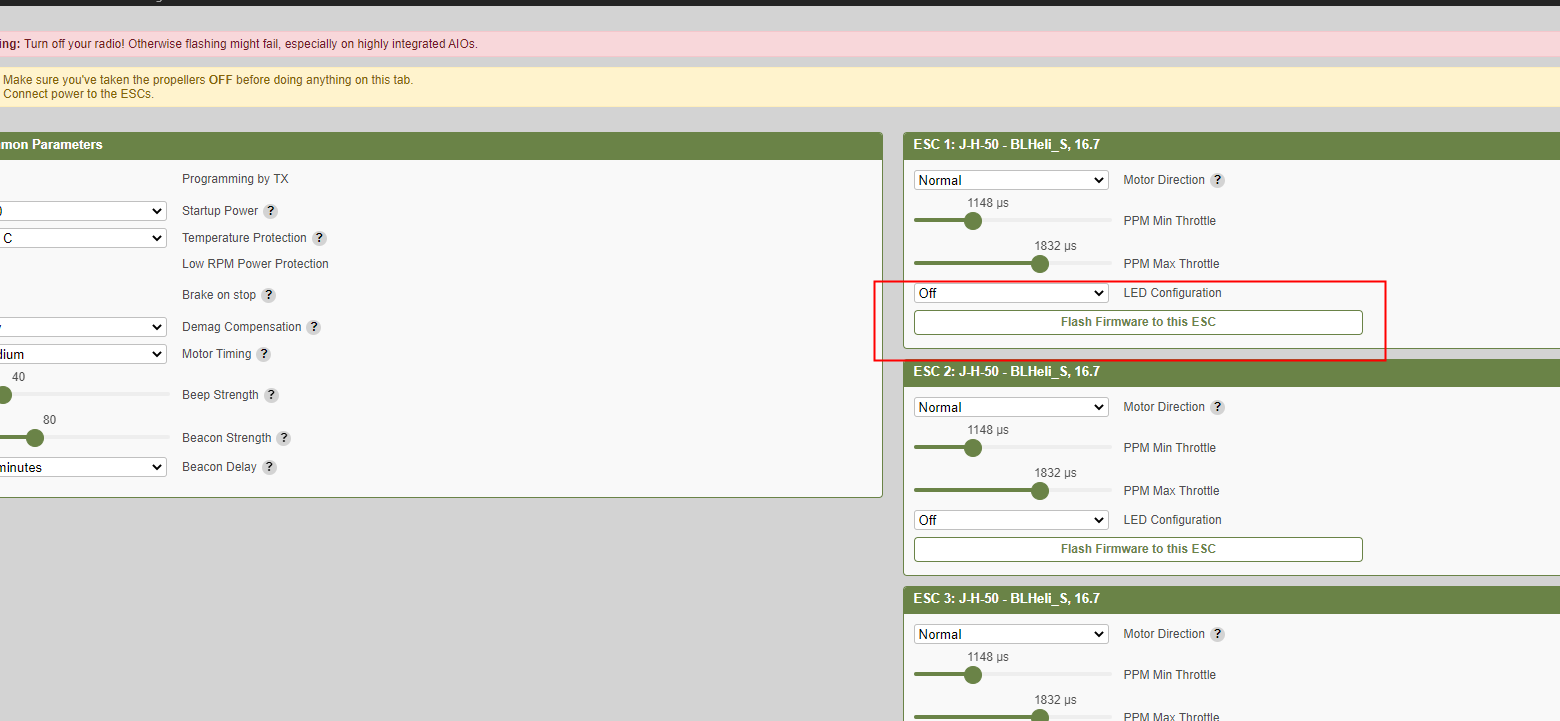

2. Click "read setup", and then select "Flash Firmware to this ESC".

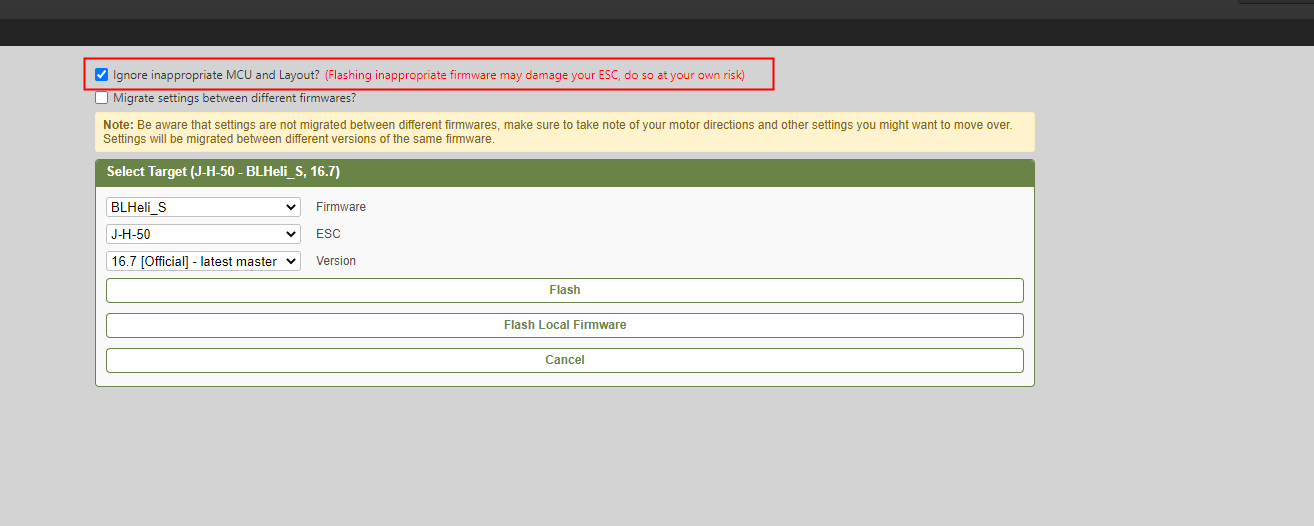

3. Select the "Ignore inappropriate MCU and Layout" option before flashing.
Note: You need to manually select the ESC settings, you can refer to other three normal ESCs to choose.
After the flashing is completed, it can be recognized by BLHeli_suite normally.
