How to connect the SpeedyBee F7 V3 to two 4-in-1 ESCs?

SpeedyBee F7 V3 flight controller has 8 motor outputs. So you can use this flight controller to build X8 or Y6 drones. You could achieve this by using two 4-in-1 ESCs. For an X8 model, you use all motor outputs of the two 4-in-1 ESCs. While for a Y6 model, you could use 4 motor outputs from one 4-in-1 ESC and 2 motor outputs from another 4-in-1 ESC.

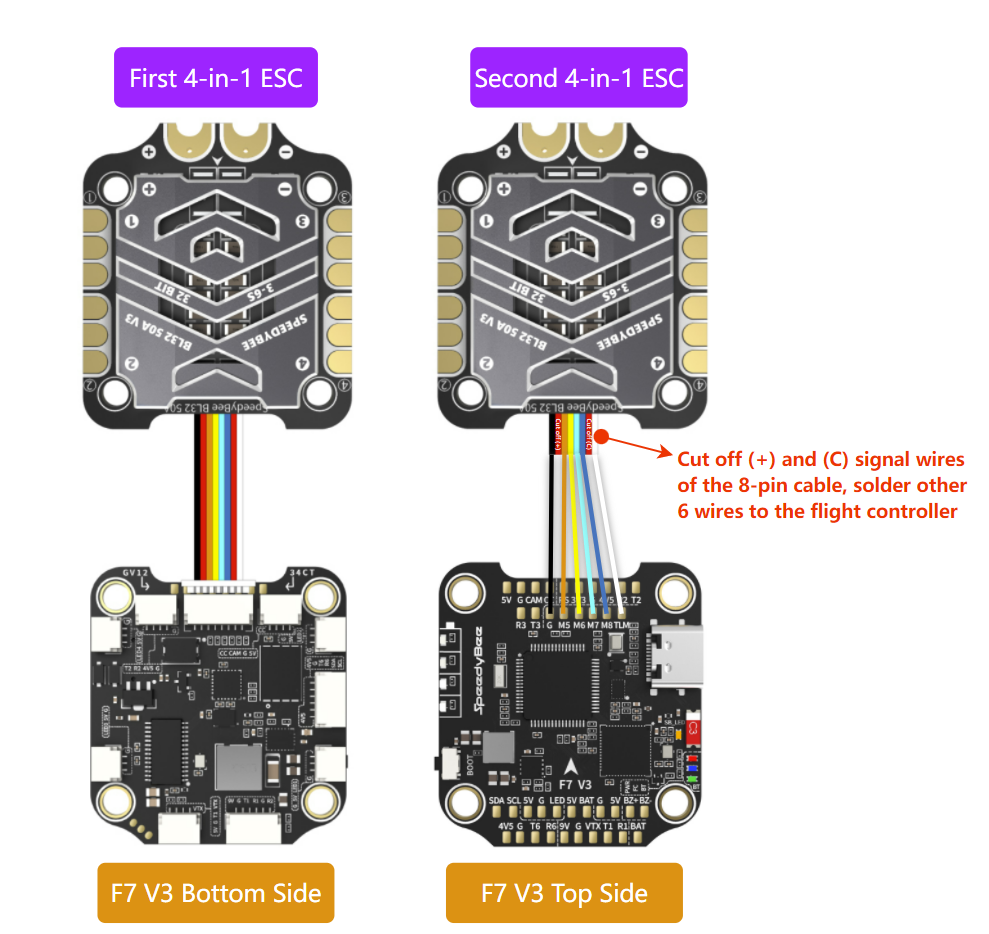

For the wire connection, please refer to the following diagram:

The two 4-in-1 ESCs can be connected in parallel to a single XT60/XT90 connector, then you could use one LiPo battery(6S max) to power the two ESCs. Don't forget to add a low ESR capacitor to the BAT+ and BAT- pads for each ESC.
