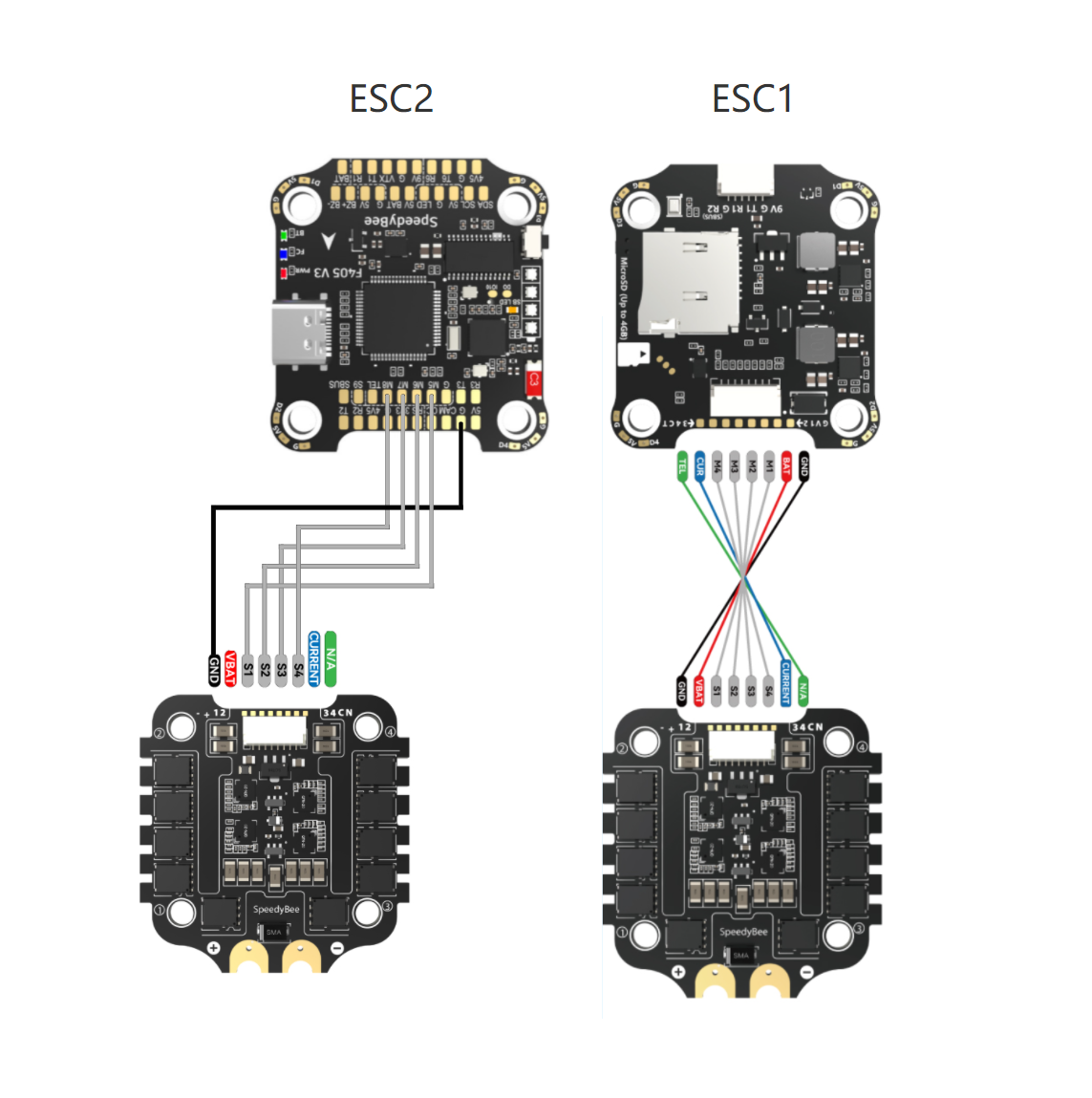

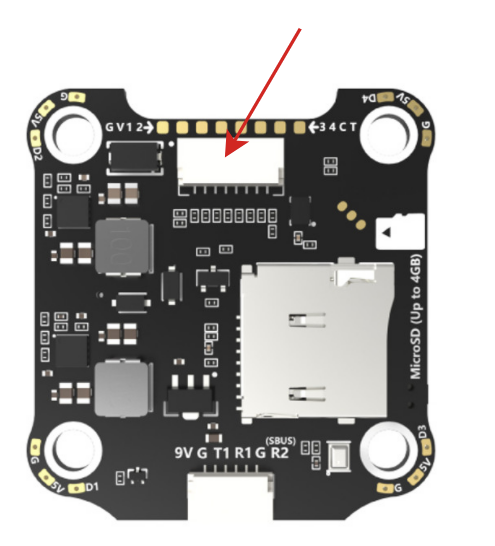

SpeedyBee F405 V3 flight controller supports 8 motor outputs. So you could use this FC to connect to two individual 4-in-1 ESCs. The first ESC can connect to the flight controller via the 8-pin connector on the back of the flight controller:
The second 4-in-1 ESC should connect to the flight controller via soldering pads. You could plug the 8-pin cable into the ESC and cut off the other end of the 8-pin cable and solder 6 wires(G, M5, M6, M7, M8, TEL) to the flight controller's pads:
