SpeedyBee F7 Mini cannot connect to the App

Before powering the flight controller, please remove all propellers from the drone.

NOTE 1 - For the Android app

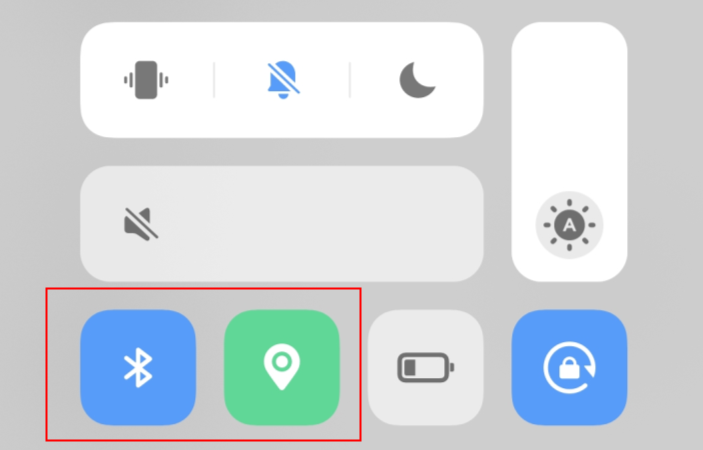

For Android devices, the Android system requires location permission and the Bluetooth switch ON to connect Bluetooth devices like this flight controller. So before connecting to the SpeedyBee app, you should turn these two switches ON:

NOTE 2 - Disconnect with other Bluetooth devices at first

If other Bluetooth devices (such as smart bracelets or smart watches) are connected to your phone, the flight controller can fail to connect to the SpeedyBee app. So please disconnect all other Bluetooth devices before you connect your flight controller to the SpeedyBee app.

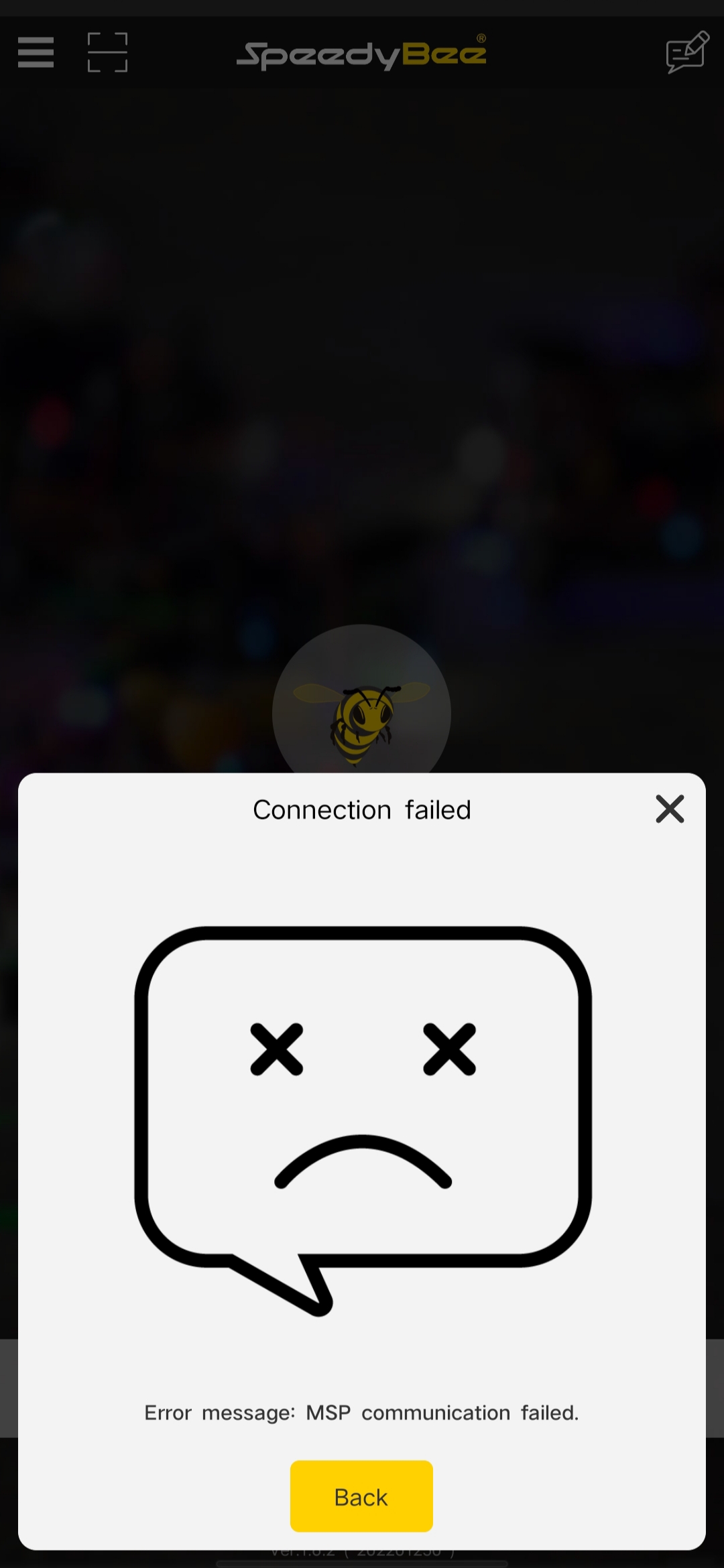

If your FC can't connect to the SpeedyBee app and shows up an 'MSP connection failed' error:

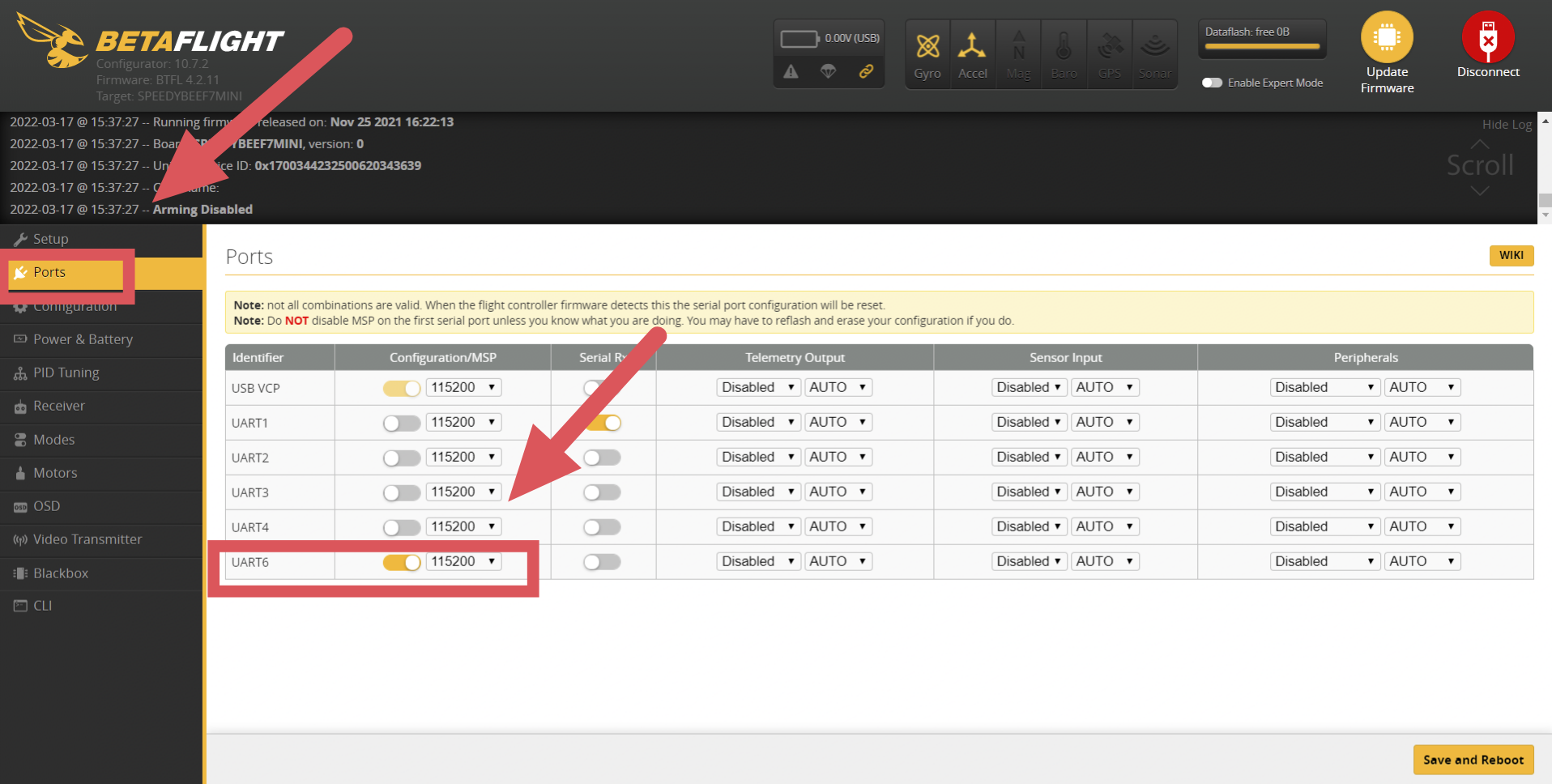

1. Please check whether UART 6 is enabled.

Please connect the computer with FC by a USB-C data cable, open the Betaflight configurator, then click "ports", and turn on  UART 6. (MSP should be enabled with Baud rate 115200 on UART 6)

2. Please make sure your flight controller is flashed with the correct firmware.

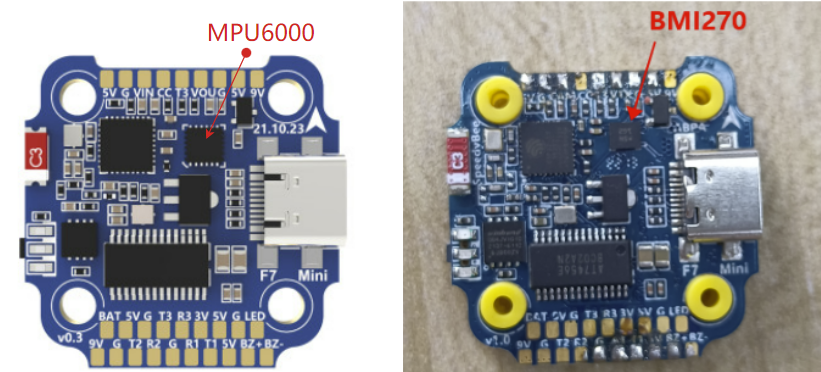

If your gyroscope is MPU6000 version, please select the firmware name: SPEEDYBEEF7MINI

If your gyroscope is a BMI270 version, please select the firmware name: SPEEDYBEEF7MINIV2

（The size of the gyroscope of the MPU6000 version is larger than that of the BMI270）

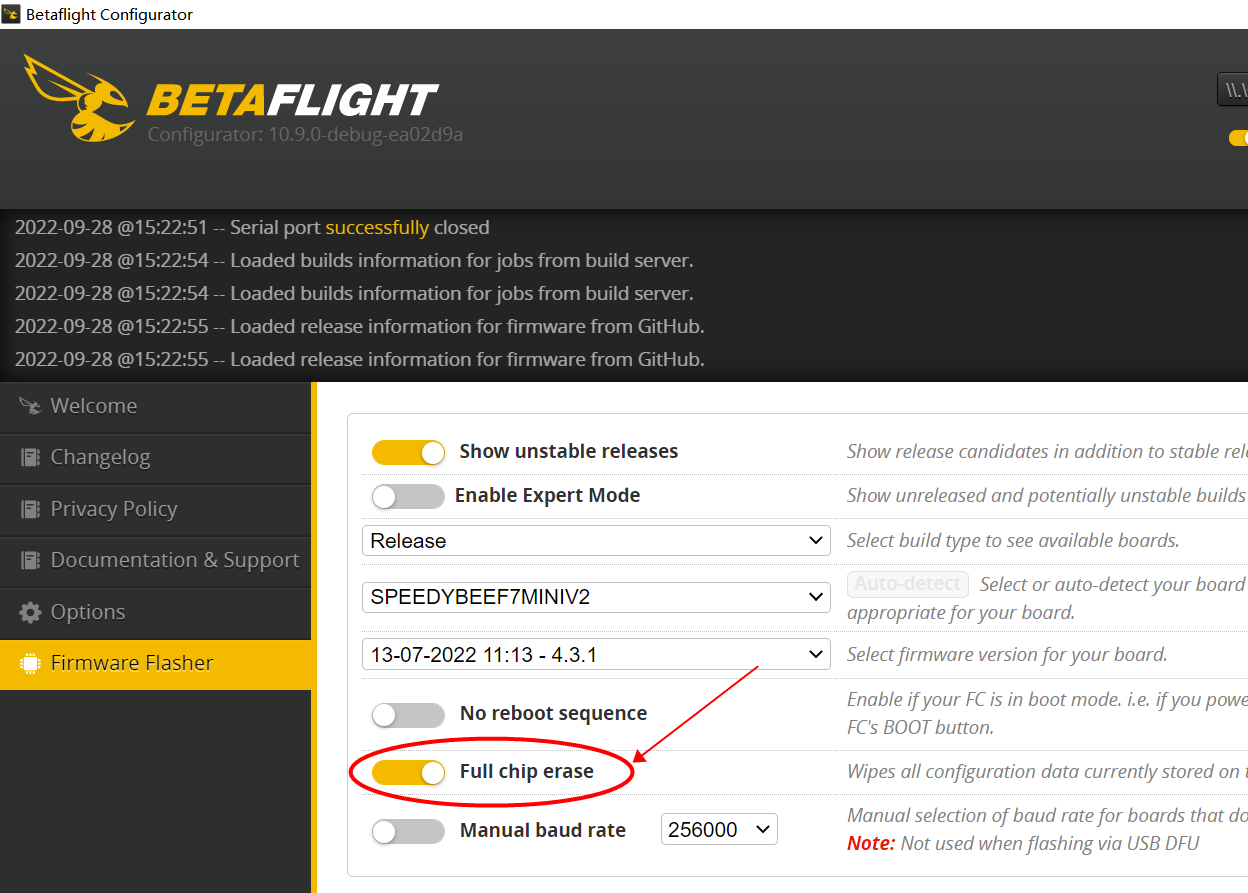

3. If it still can't connect to the app, please disconnect and desolder all peripherals from the flight controller and re-flash firmware for it, and make sure to select 'Full Chip Erase':

Please connect to the Betaflight configurator once the firmware flashing is finished:

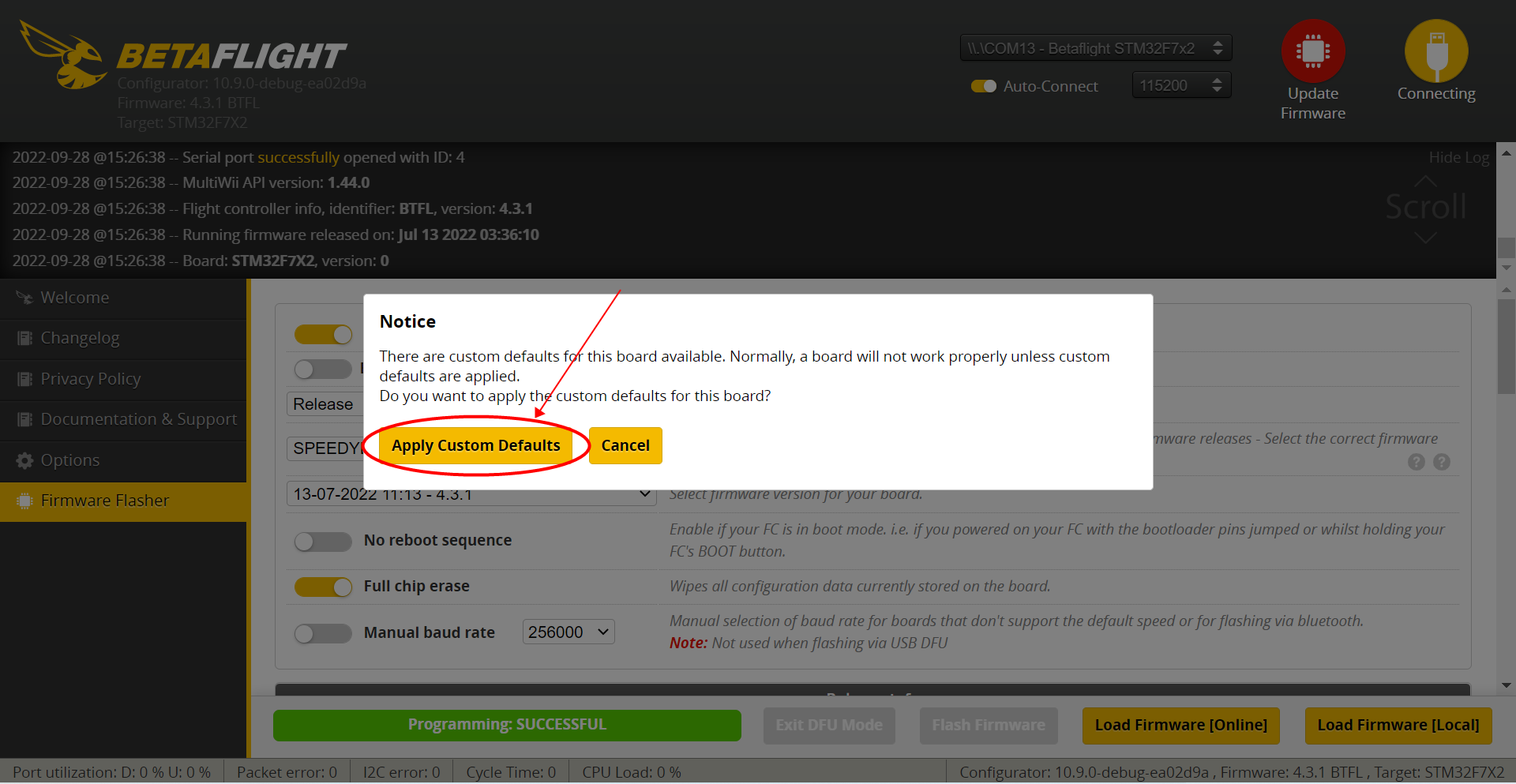

Then click 'Apply Custom Defaults' in the popup dialog. Then try to connect to the app again.

4. Please use other phones to see if you can connect to the app.

If nothing helps, please send a video demonstrating the connection process(including the status of the LED lights on the FC, your phone model, and system version) as well as up-close and in-focus photos of both sides of the flight controller to the SpeedyBee mailbox: [e-mail]
