How to use the DJI FPV remote controller with the BEE25 drone

1. Please make sure that the goggles, the Air Unit, and the remote controller have all been bound and that the signal value of the remote controller can be seen in the goggles.
2. Connect to the configurator or app, enable the port page, disable the serial receiver option for UART6, enable the serial receiver option for UART2, click save and restart; (You can refer to the settings in the figure below)

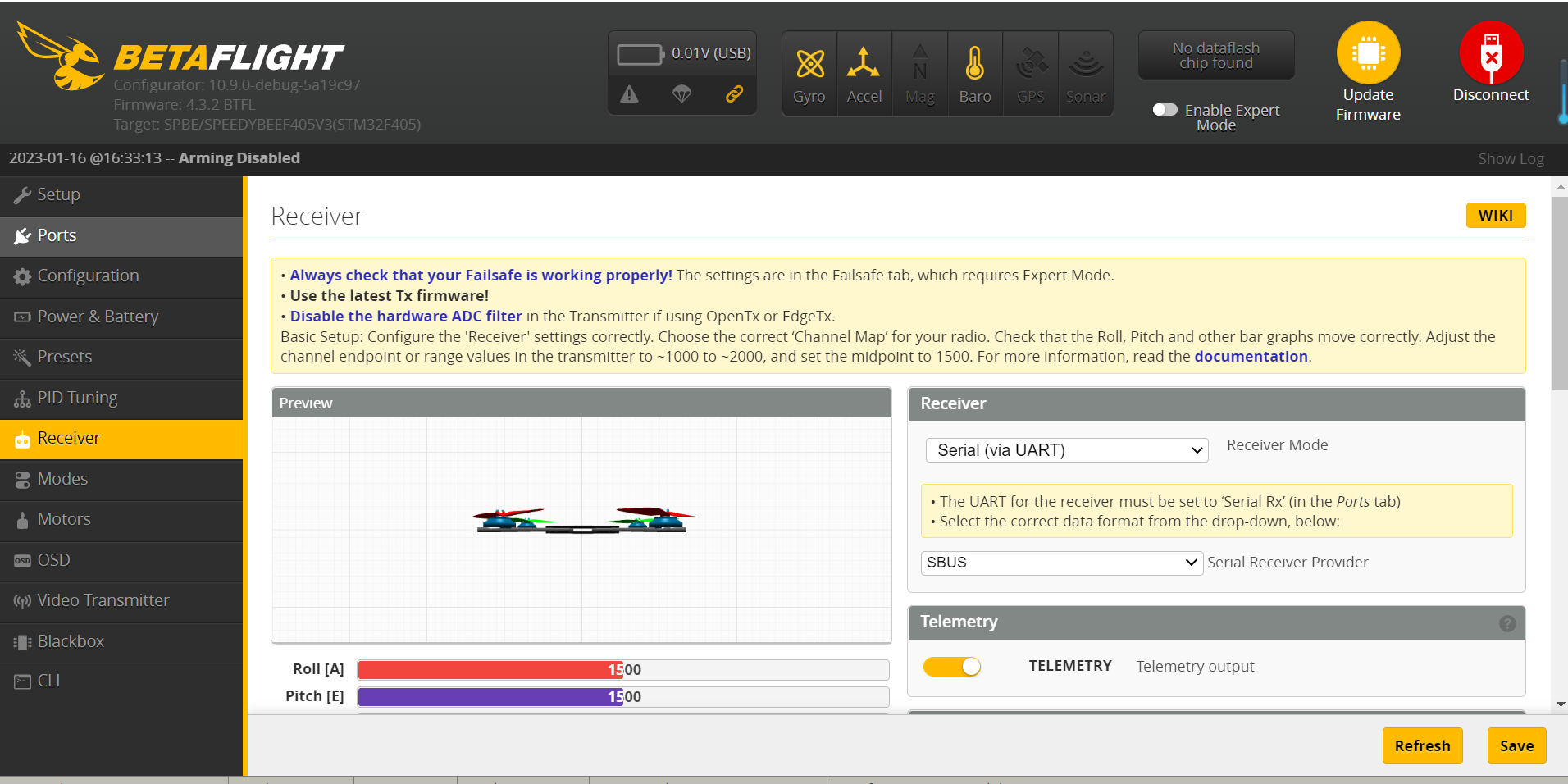

3.Go to the receiver page and change the CRSF protocol to SBUS protocol;


4. Confirm the SBUS protocol option value in the Goggles:
The options for the 【Protocol】are 'Sbus Baud Fast' and 'Standard'.

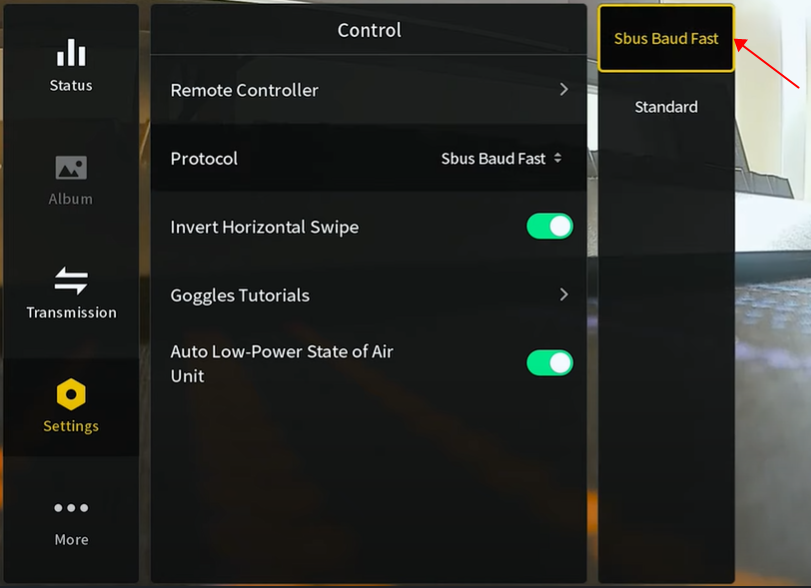

For DJI FPV Goggles 2:
Go to menu, Settings > Control > Protocol, it is recommended to set it to Subs Baud Fast:

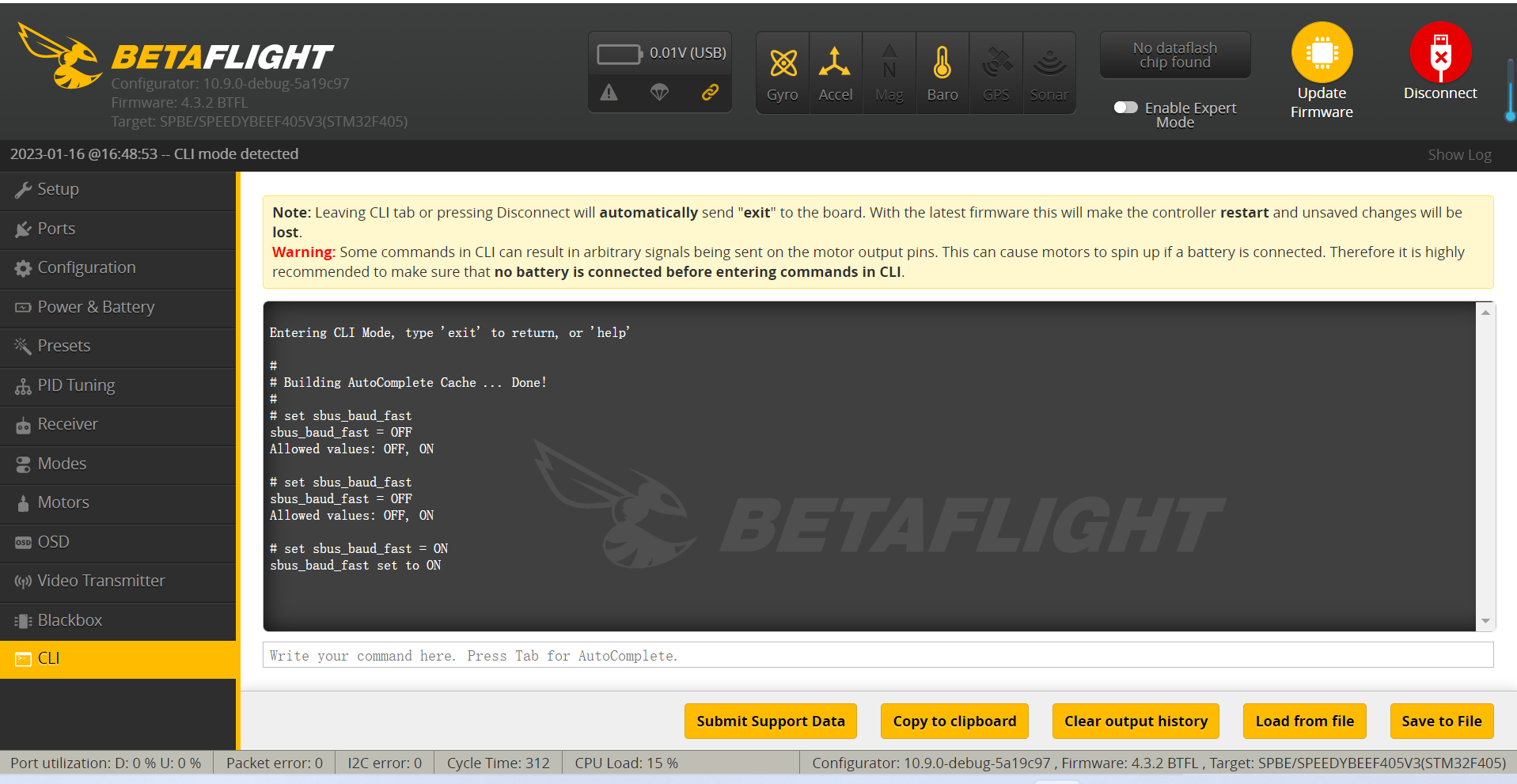

5. Set the CLI command line for the flight controller:
Please connect to the BF configurator or the SpeedyBee app, enter the CLI command line interface, and set the corresponding sbus_baud_fast parameter.
Note: This parameter in the goggles needs to be consistent with the flight controller settings. That is, if Subs Baud Fast is set in the goggles.
then it should be set in the flight controller CLI interface.

set sbus_baud_fast = ON
save
If Standard is set in the goggles, then the flight control CLI interface should be set to:

set sbus_baud_fast = OFF
save
