How does F7 V3 FC use servos via Betaflight?

1. Wiring.

（1）

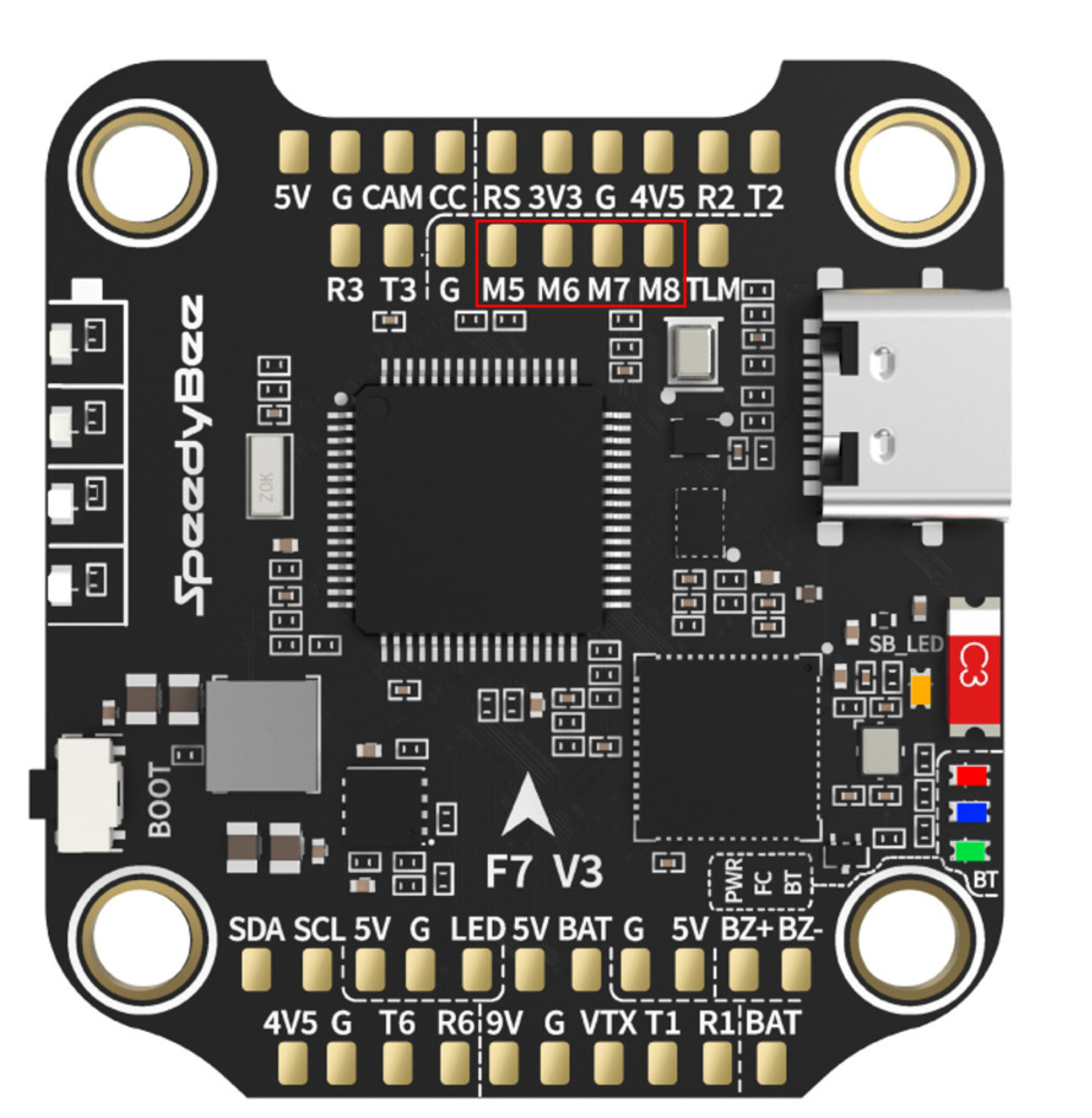

If you need to use one or more servos, you can connect to the m5-m8 pad of FC and map it.

For example,  you need to use two servos, and the servos are connected to the two pads m5 and m6, please enter the following in the CLI:

resource MOTOR 5 none
resource MOTOR 6 none
resource SERVO 1 B07
resource SERVO 2 B05

save

Please note that the 5VBEC on F7v3 supports a maximum output of 5V2A. Ensure that the servo power consumption does not exceed the flight controller BEC output.

2. Settings.

（1）Please check the firmware version of your flight controller.

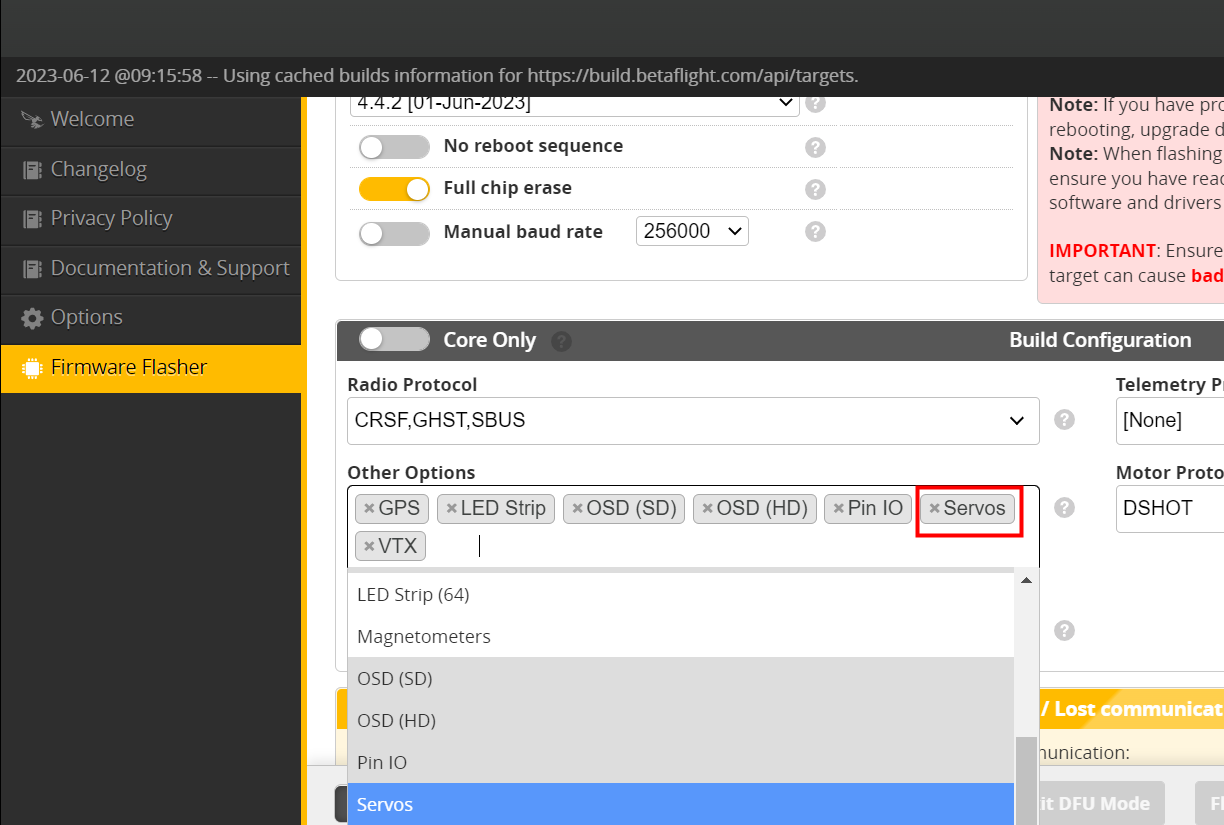

If you are using Betaflight 4.4 or later firmware versions, you need to select the "SERVO" option during firmware flashing to enable servo functionality.

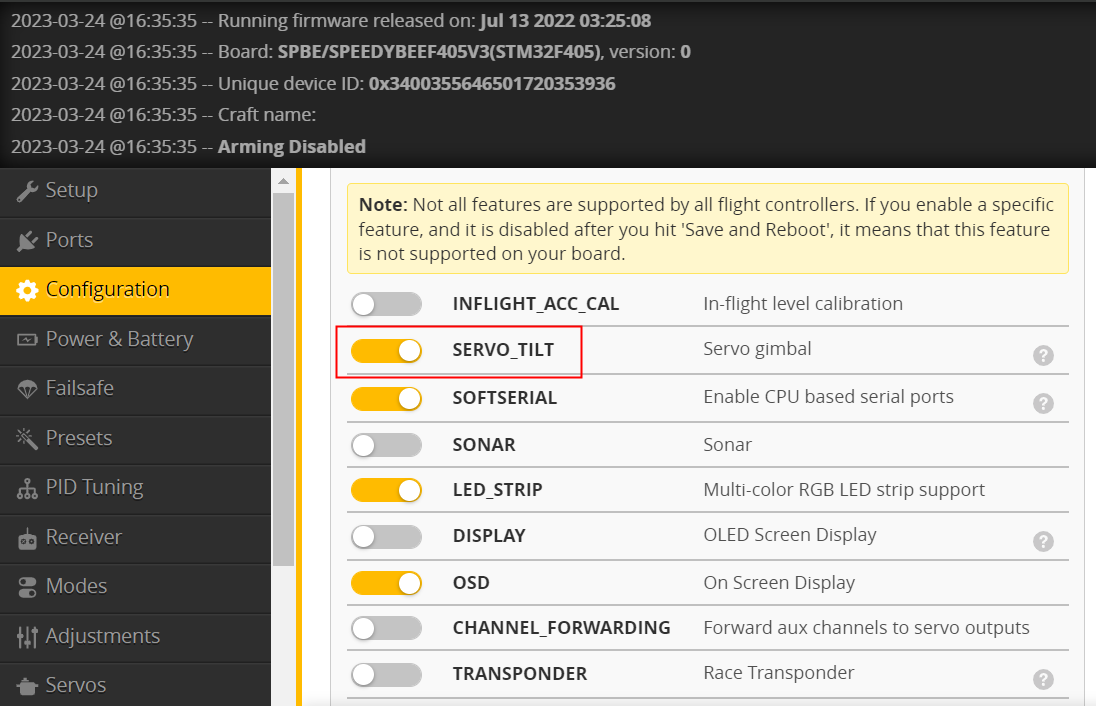

（2）Please enable SERVO_TILT in the Configuration page of Betaflight configurator.

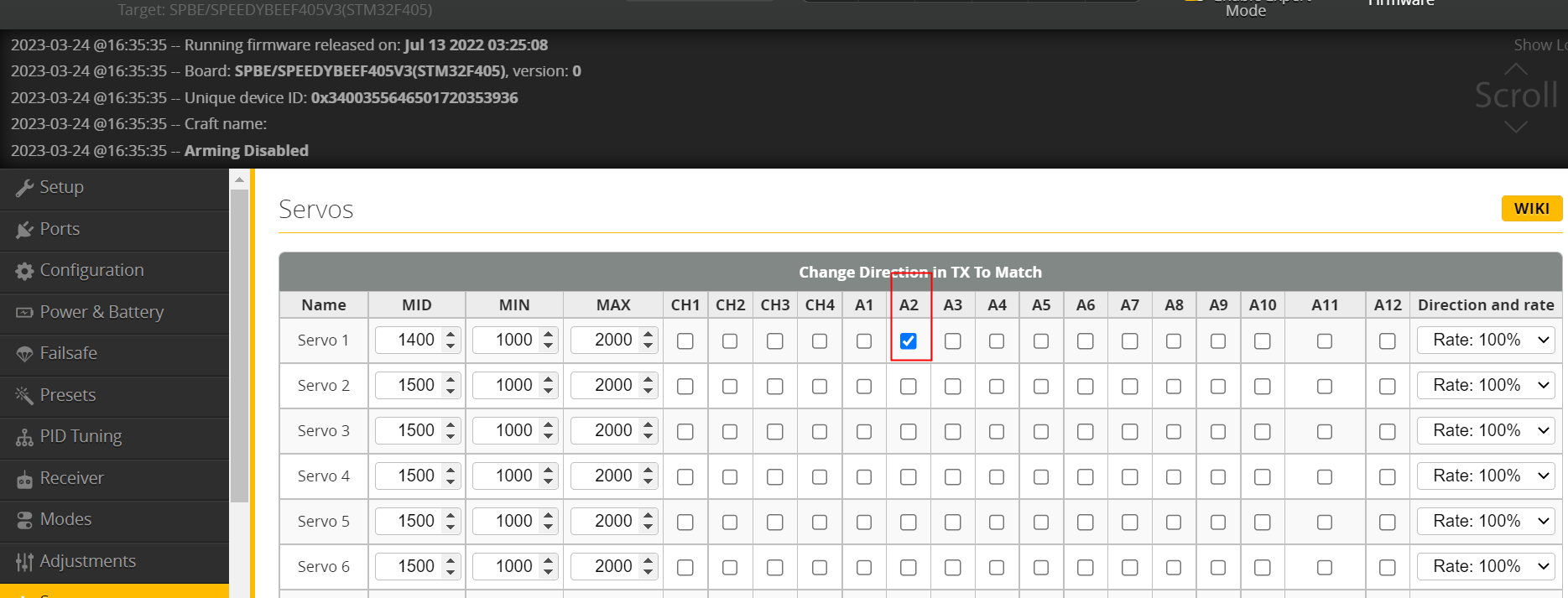

（3）Set the corresponding remote control channel on the Servo page.

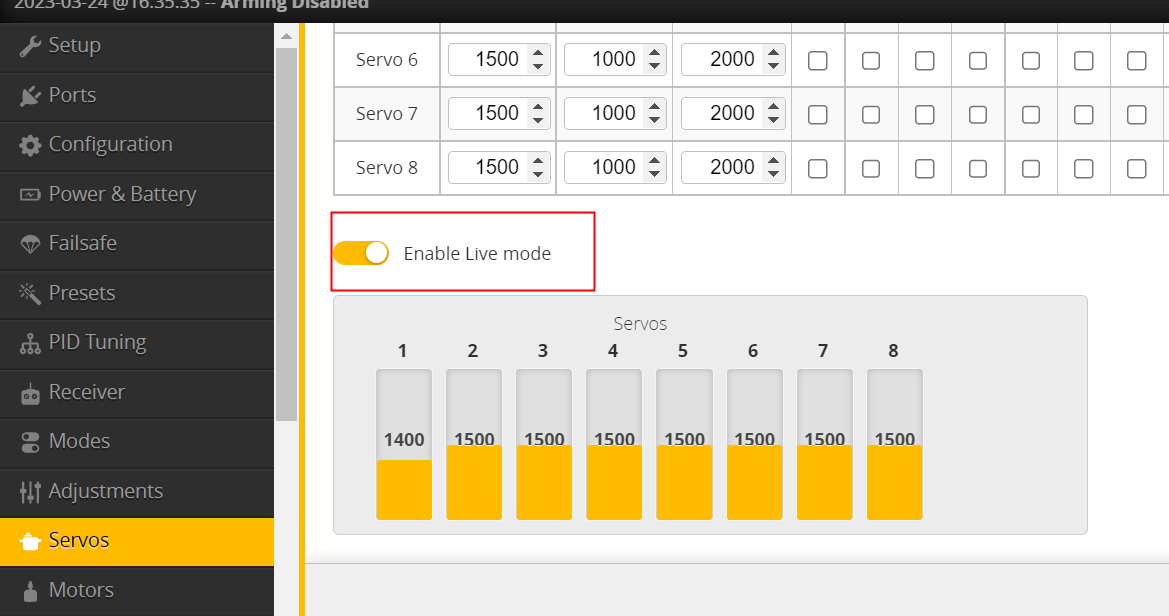

（4）After the setting is complete, select: "Enable Live mode" to check whether the servo is rotating normally.

#F7 V3  #servos #betaflight
